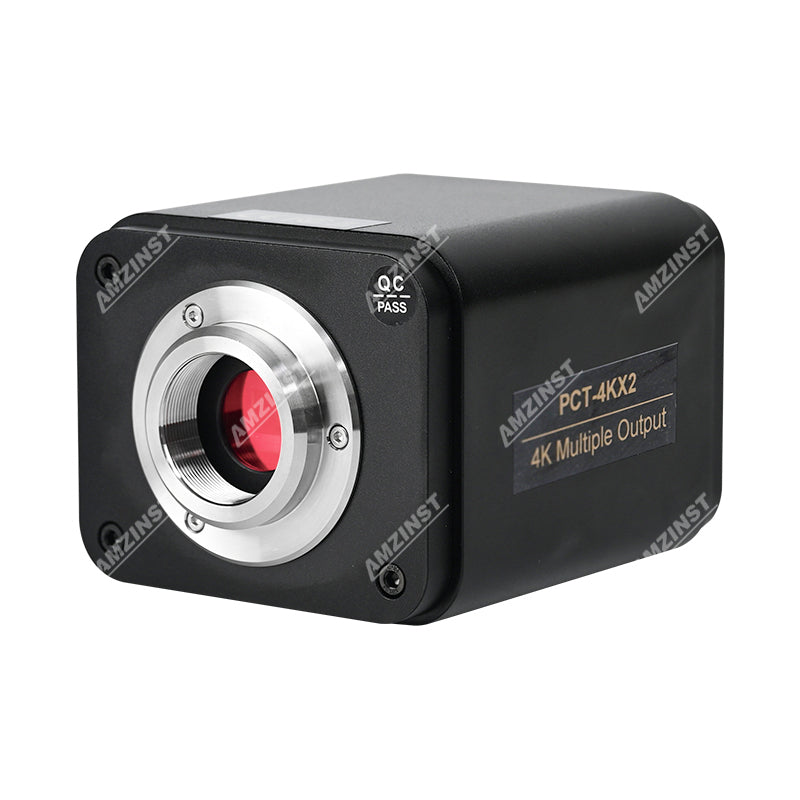

PCT-4KX 4K 60fps 16MP Digital Microscope Camera
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Product Description
Related models
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure(ms) |
| PCT-4KX1 |
IMX678(C) 1/1.8"(7.68x4.32) |
2.0x2.0 |
3541mv with 1/30s 0.15mv with 1/30s |
72@3840x2160 | 1x1 | 0.019~1000 |
| PCT-4KX2 |
IMX585(C) 1/1.2"(11.14x6.26) |
2.9x2.9 |
5970mv with 1/30s 0.13mv with 1/30s |
75@3840x2160 | 1x1 | 0.048~1000 |
| PCT-4KX3 | IMX283(C) 1/1.1"(13.06x7.34) |
2.4 x 2.4 | 1847mv with 1/30s 0.84mv with 1/30s |
30@5440x3060 | 1x1 | 0.104~1000 |
Specification
| Order Code | Video Saving(FPS/Resolution) | HDMI2.0(FPS/Resolution) | USB3.0(FPS/Resolution) | NETWORK(FPS/Resolution) |
| PCT-4KX1 | 72@3840x2160 72@1920x1080 |
60@3840x2160 60@1920x1080 |
30@3840x2160 45@2688x1512 60@1920x1080 |
30@3840x2160 60@1920x1080 72@1280x720 |
| PCT-4KX2 | 75@3840x2160 75@1920x1080 |
60@3840x2160 60@1920x1080 |
30@3840x2160 45@2688x1512 60@1920x1080 |
30@3840x2160 60@1920x1080 72@1280x720 |
| PCT-4KX3 | 30@3840x2160 30@1920x1080 |
30@3840x2160 30@1920x1080 |
20@5440x3060 30@2688x1512 30@1920x1080 |
30@3840x2160 30@1920x1080 30@1280x720 |

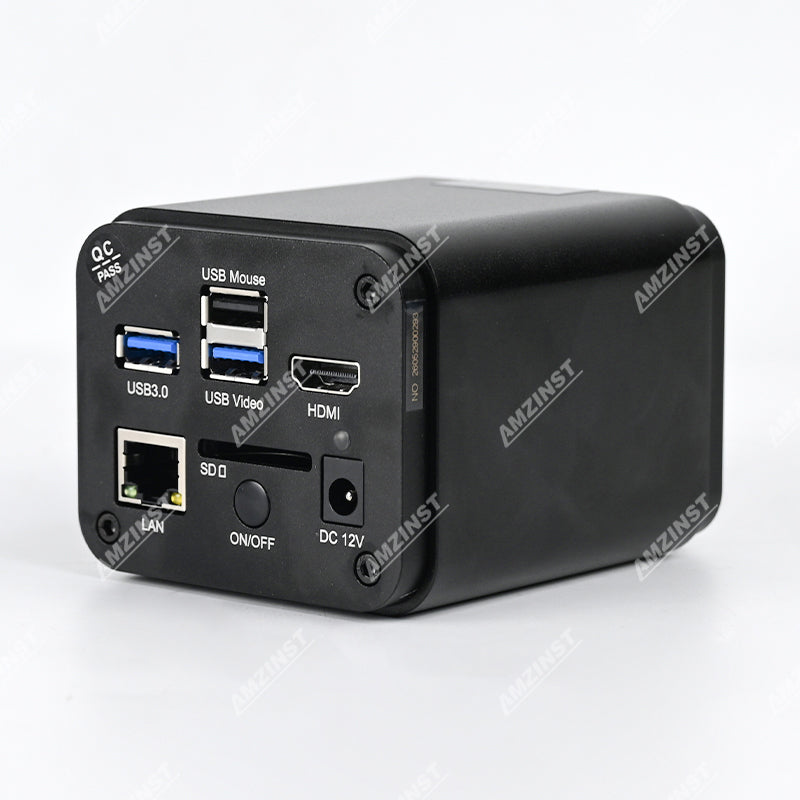

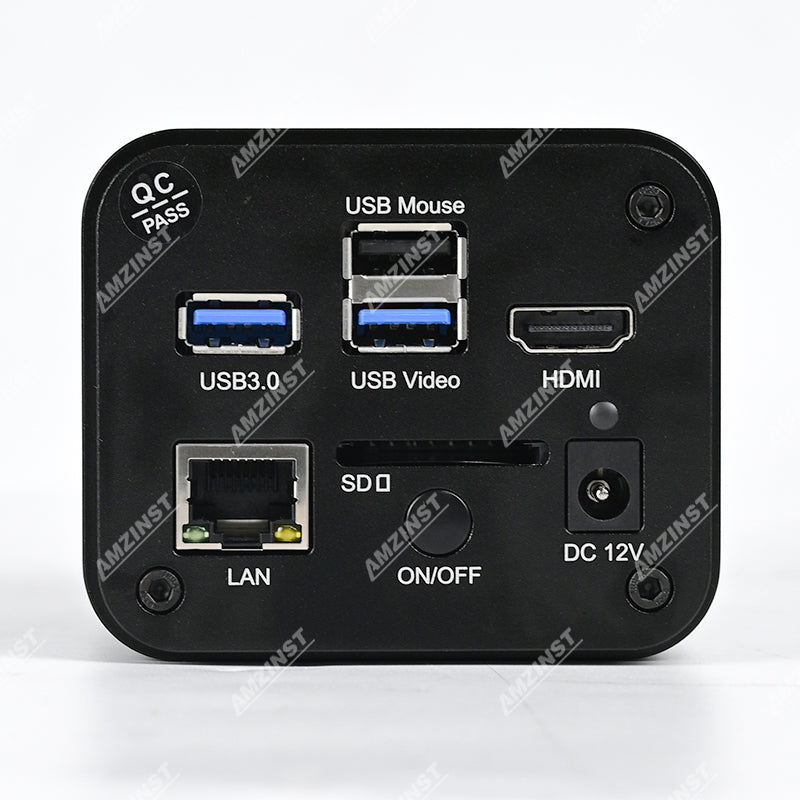

| Interface or Button | Function Description |
| USB Mouse | Connect USB mouse for easy operation with embedded XView software (Flat shape without labelling) |
| USB3.0 |
Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time Connect USB microphone for audio and video recording |
| USB Video | Connect PC or other host device to realize video image transmission |
| HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
| LAN | LAN port to connect router and switch to transfer video |
| SD | SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
| ON/OFF | Power switch |
| LED | LED status indicator |
| DC12V | Power adapter connection (12V/1A) |
| Video Output Interface | Function Description |
| HDMI Interface | Comply with HDMI2.0 standard; 60fps@4K or 60fps@1080P(PCT-4KX1, PCT-4KX2) 30fps@4K or 30fps@1080P(PCT-4KX3) |
| LAN Interface |
Support real time resolution switching(4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration |
| WiFi Interface | Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
| USB Video Interface | Connecting USB Video port of PC for video transfer H264/MJPEG format video |
|
Other Function |
Function Description |
| Video Saving | Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:72fps(PCT-4KX1); 75fps(PCT-4KX2); 60fps in low delay mode(PCT-4KX1, PCT-4KX2); 30fps(PCT-4KX3) |
| Image Capture | 8M (3840*2160, PCT-4KX1, PCT-4KX2) JPEG/TIFF image in SD card or USB flash drive 16M (5440*3060, PCT-4KX3) JPEG/TIFF image in SD card or USB flash drive (Default SD card priority, priority can be modified in settings) |
| Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
| ISP | Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening, 3D Denoise， Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
| Image Operation | Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, PIP , Browser(including Picture Browsing , Video Playback , Video Compare , Picture Compare , EDF , Image Processing), Measurement Function |
| Embedded RTC(Optional) | To support accurate time on board |
| Restore Factory Settings | Restore Camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Dutch / Portuguese |
Software Environment under Network/USB Video Output
|
White Balance |
Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet Port: RJ45 Ethernet Port Display:19” or Larger CD-ROM |
Operating Environment
|
Operating Temperature (in Centidegree) |
-10°~ 50° |
| Storage Temperature (in Centidegree ) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |

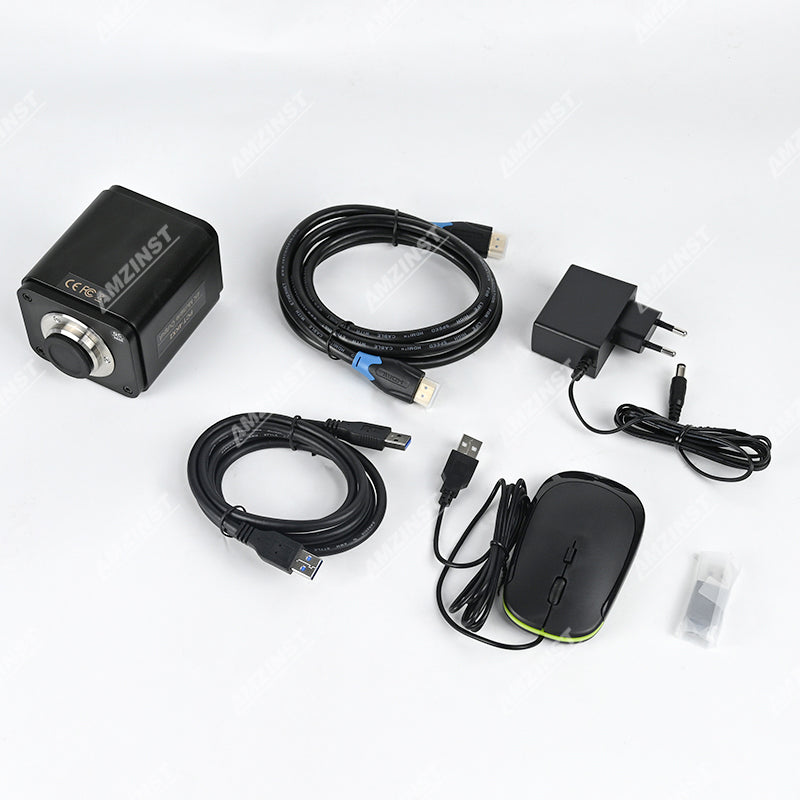

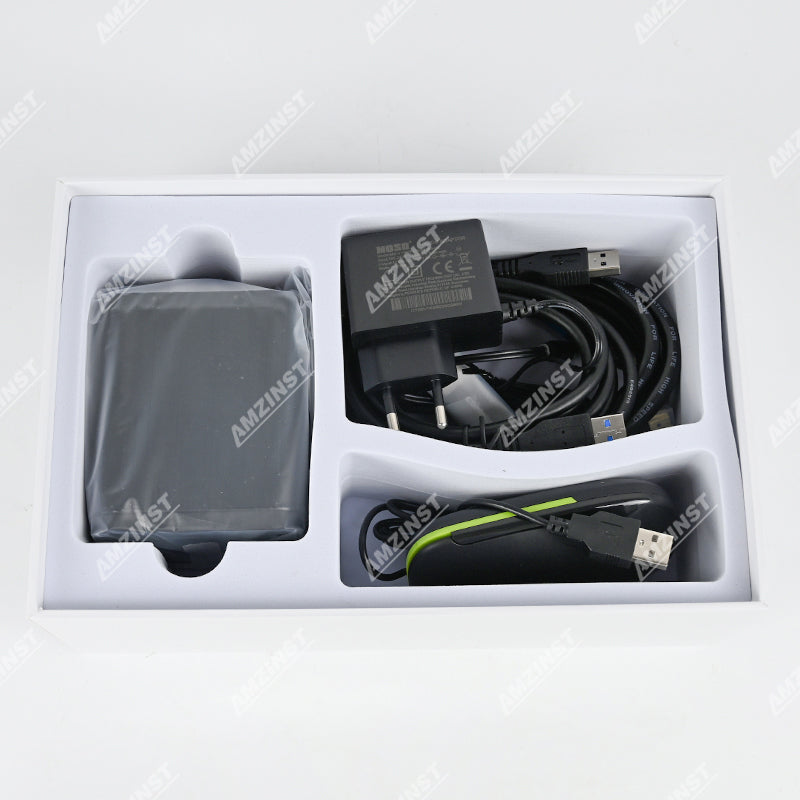

Standard Packing List
1* PCT-4KX Camera
1* Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
1* USB Mouse
1* HDMI Cable
1* USB3.0 A male to A male gold-plated connectors cable /2.0m
1* CD (Driver & utilities software, Ø12cm)
