SKU: NK-30PHT
Vendor: AMZ Instruments
Product Type: Phase Contrast Microscope
$0.00
$0.00
Subtotal:
$0.00

Top Optics Manufacturer & Exporter

Learn More.

Ningbo AMZ Instruments Co., ltd.

As a top optics product manufacturer, AMZ INSTRUMENTS provides a broad range of cutting-edge professional optics and accessories to large distributors around the global.

Through our China network of manufacturing facilities we are able to manufacture superior instruments and optical components to our specifications at reasonable prices. To ensure the best in quality and performance we visit, inspect and audit each of our manufacturing partners on a regular basis.

Our products are available exclusively through a nationwide network of authorized distributors and are backed by our industry leading 2-year limited warranty.

Global Shipping

1. Courier shipping by FedEx, UPS, DHL, Estimated to be delivered Around 5-7days.

2. Air shipping, Estimated to be delivered Around 5-7days.

3. Sea shipping, Estimated to be delivered Around 25-40days.

Shipping Information

We can ship to virtually any address in the world. please email us at info@amz-instruments.com or call +86 15990266988 to get a quote that includes shipment fees.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Shipment fees are calculated based on the destination, size and weight of your item(s) and include insurance of the goods shipped. Our standard shipment method is Fed Ex, UPS. If you have your own UPS or Fed Ex, DHL account #, we are happy to ship on your account. Please emial or call us to place your order and provide us your account information.

 Why Choose Us?

AMZINST manufactures optics products and related accessories, which have been consistently distributed and trusted by worldwide companies.

China-owned and operated facilities provide the management, quality control, design, marketing and customer service that make AMZINST® a market leader. In our China warehouse, each product is unpacked, assembled and individually tested and inspected by our team of technicians to ensure compliance with the strict quality standards. Join our network of distributors for a mutually beneficial partnership.

Product Description

ACCESSORIES
ORDER No.		  PRODUCT SPECIFICATION NK-30PHB NK-30PHT

NKX30-BR

NKX30-TR28

NKX30-TR55

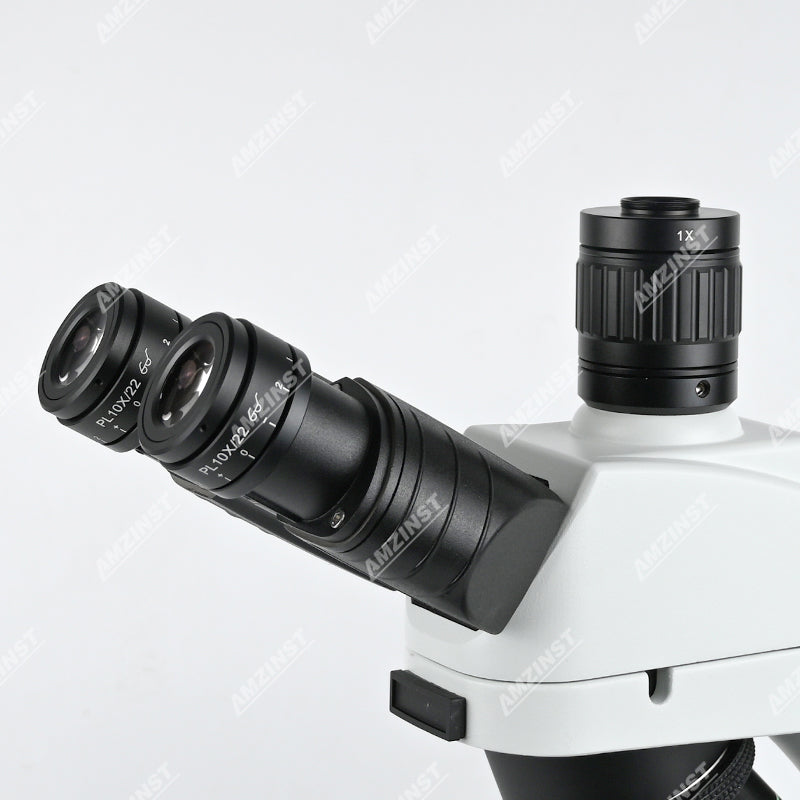

 Viewing head

30°gemel binocular viewing head with 360° rotatable eyepiece tube, interpupillary adjustable distance: 50-75mm

30°gemel trinocular viewing head with 360° rotatable eyepiece tube, interpupillary adjustable distance: 50-75mm, fixed spectroscopical ratio R:T=80%: 20%

30°gemel trinocular viewing head with 360° rotatable eyepiece tube, interpupillary adjustable distance: 50-75mm, fixed spectroscopical ratio R:T=50%: 50%

●


໐


໐

໐


●


໐

NKX30-10EX

NKX30-10EXR

NKX30-10EXL

NKX30-10EXLR

NKX30-15EX

 Eyepiece

PL10X/20mm, adjustable diopter

PL10X/20mm with micrometer, adjustable diopter

PL10X/22mm, adjustable diopter

PL10X/22mm with micrometer, adjustable diopter

PL15X/16mm

໐

໐

●●

໐

໐

໐

໐

●●

໐

໐

NKX30-PL2X

NKX30-PL4X

NKX30-PL10X

NKX30-PL20X

NKX30-PL40X

NKX30-PL60X

NKX30-PL100X

 Infinity plan achromatic objective

2X/0.06, WD=5.00mm (Condenserequip with field of view filler plate)

4X/0.10, WD=15.00mm

10X/0.25, WD=10.80mm

20X/0.40, WD=1.50mm

40X/0.65, WD=0.80mm

60X/0.85, WD=0.30mm

100X/1.25, WD=0.21mm

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

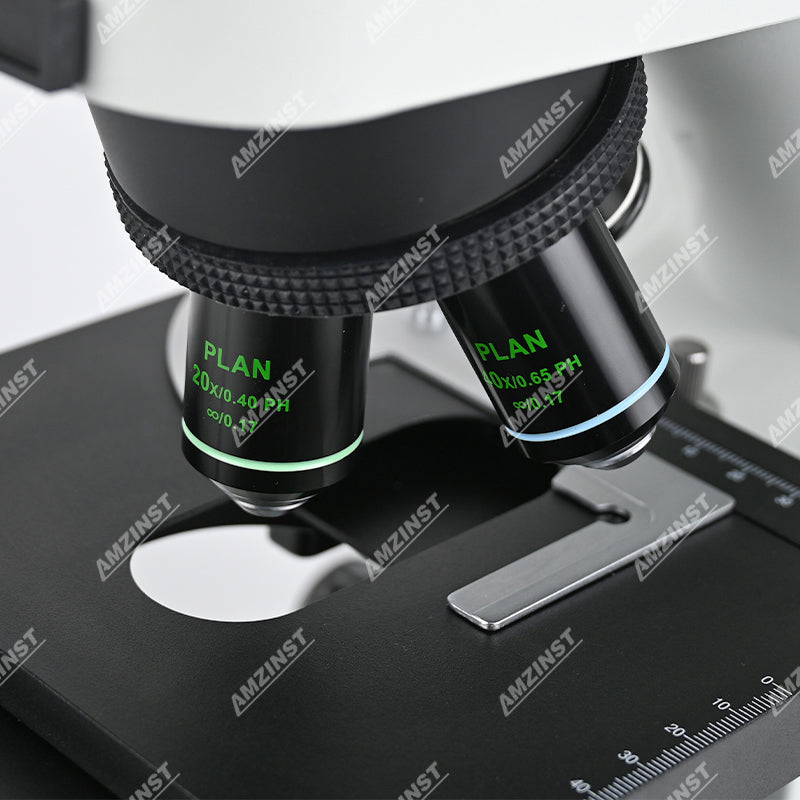

NKX30-PH10X

NKX30-PH20X

NKX30-PH40X

NKX30-PH100X

 Infinity plan achromatic phase contrast objective

10X/0.25, WD=10.80mm

20X/0.40, WD=1.50mm

40X/0.65, WD=0.80mm

100X/1.25, WD=0.21mm

●

●

●

●

●

●

●

●

NKX30-SF4X

NKX30-SF10X

NKX30-SF20X

NKX30-SF40X

NKX30-SF100X

 Infinity semi-apochromatic fluorescence objectives

4X/0.13, WD=16.40mm

10X/0.30, WD=8.10mm

20X/0.50, WD=2.00mm

40X/0.75, WD=0.74mm

100X/1.28, WD=0.14mm

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

NKX30-NP4

NKX30-NP5

 Nosepiece

Inwardly inclined, backward quadruple nosepiece

Inwardly inclined, backward quintuple nosepiec

●

໐

●

໐

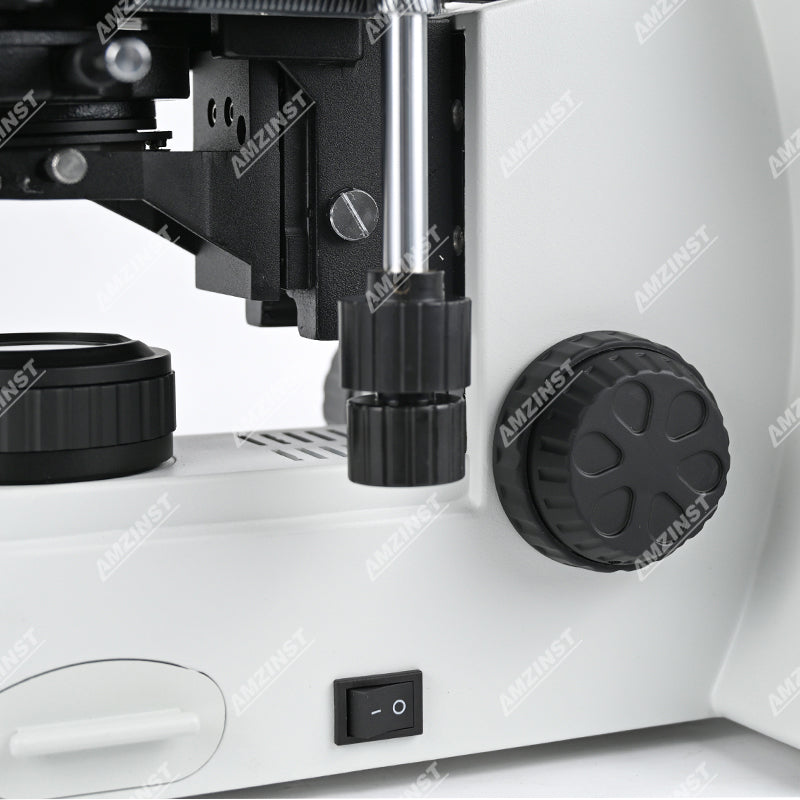

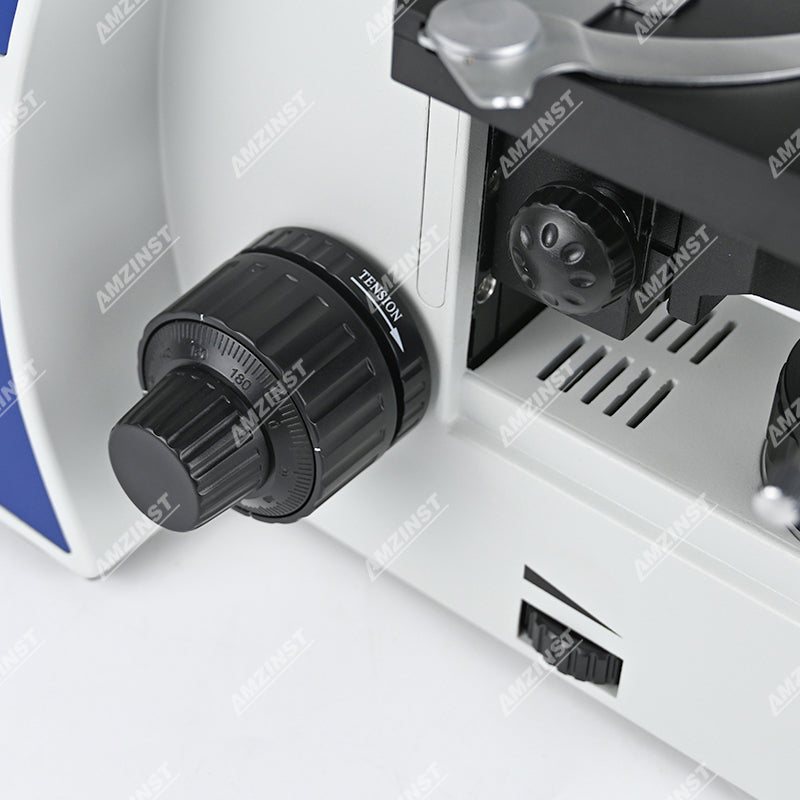

  Focus Coaxial focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision: 0.002mm, focus height adjustable

●

●

NKX30-SGM

NKX30-LGM

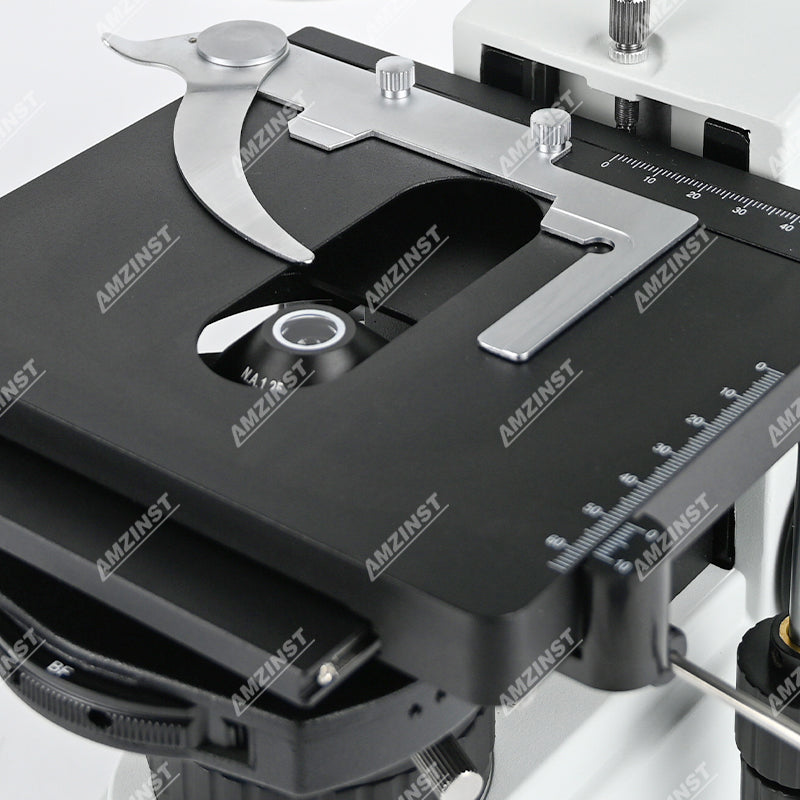

 Stage

150X140mm Coaxial mechanical stage, travel range 76x50mm, precision: 0.1mm

150X162mm Coaxial mechanical stage, travel range 76x50mm, precision: 0.1mm, X-axis single track rotation

●

໐

●

໐

NKX30-DK1.25

NKX30-DKP

NKX30-DKPD

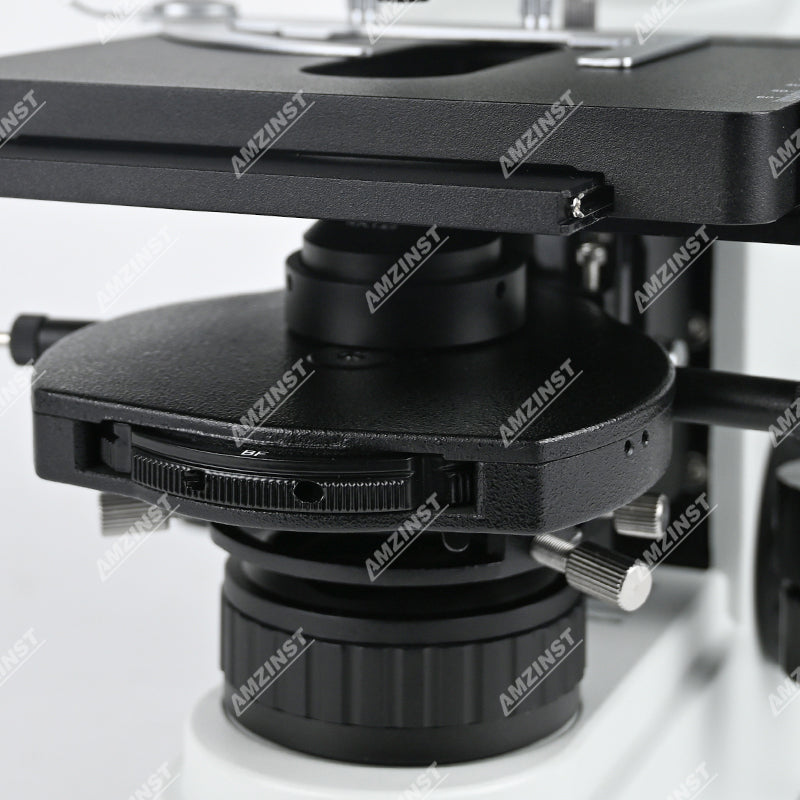

 Condenser

Koehler N.A.1.25 condenser (with plug-in phase contrast, dark field accessory interface), dial-type iris diaphragm, dovetail slot, condenser center adjustable, preset center, gear rack lift

Koehler N.A.1.25 condenser lens group for 10X, 20X, 40X, 100X phase contrast observation

Koehler N.A.1.25 condenser lens group + dark field condenser lens group for 10X, 20X, 40X phase contrast observation, and for 4X-40X dark field observation

๐



●



๐

๐



●



๐

/

/

NKX30-H6V30W

NKX30-L3WLED

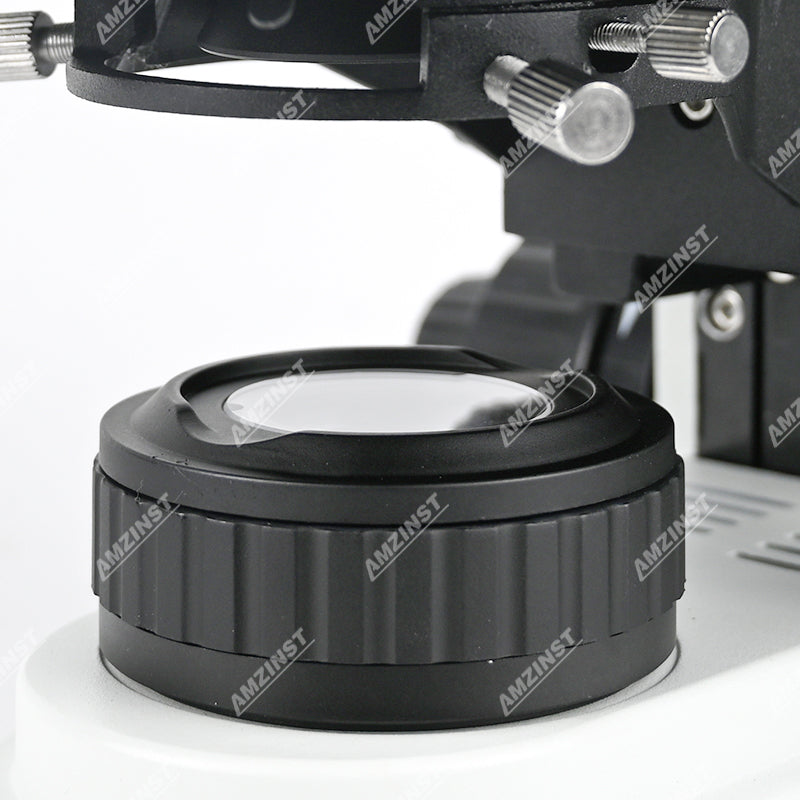

 Illuminator

Main supply 100V-240V, 3W LED lamp with intensity control, fixed center

Main supply 100V-240V, Philips 6V/30W halogen lamp with intensity control (fixed center)

Halogen lamp 6V/30W (Philips)

Single 3WLED lamp cool color temperature 4750K-5500K(warm color temperature 2850K-3250K for optional)

●

๐

๐

๐

●

๐

๐

๐

NKX30-LBD

NKX30-Y

NKX30-GC

NKX30-NF

 Filter

Color temperature conversion filter (Φ 45)

Yellow filter (Φ 45)

Green contrast filter (Φ 45)

Neutral filter (Φ 45)

໐

໐

໐

໐

໐

໐

໐

໐

NKX30-PAA

NKX30-PAP

 Polarizing Attachment

Analyzer

Polarizer (Φ 45)

໐

໐

໐

໐
NKX30-DFK Darkfield
Accessories

Darkfield plug-in board group, suitable for Kolar illumination 4X-40X objective lens

 ໐ ໐

NKX30-SCE

NKX30-SLP1

NKX30-SLP2

 Phase Contrast Accessories

Centering telescope (Φ30)

Phase Contrast group, suitable for 10X, 40X Phase Contrast objective

Phase Contrast group, suitable for 20X, 100X Phase Contrast objective

●

໐

໐

●

໐

໐
NKX30-SL Fluorescent
Accessories		 LED fluorescent block panel

໐

໐

NKX30-B1






NKX30-B1N






NKX30-G1





NKX30-G1N





NKX30-B2





NKX30-UV2





NKX30-UV4






NKX30-B4





 Fluorescence  Module

B1 band-pass LED fluorescence intermediate module
- EX: AT480/30X, Φ25mm;
- BS: AT505DC, 25.5X36X1mm;
- EM: AT535/40M, Φ25mm),
with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 470nm

B1 band-pass LED fluorescence intermediate module
- EX: 480/30, Φ25mm;
- DM: 505, 25.7X36X1mm;
- EM: 535/40, Φ25mm),
with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 470nm

G1 band-pass LED fluorescence intermediate module
- EX: AT560/40X, Φ25mm;
- BS: AT600DC, 25.5X36X1mm;
- EM: AT635/60M, Φ25mm), with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 560nm

G1 band-pass LED fluorescence intermediate module
- EX: 560/40, Φ25mm;
- DM: 595, 25.7X36X1mm;
- EM: 635/60, Φ25mm), with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 560nm

B2 long-pass LED fluorescent intermediate module
- EX: AT480/30X, Φ25mm;
- BS: AT505DC, 25.5X36X1mm;
- EM: AT515LP, Φ25mm), with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 470nm

UV2 UV long-pass LED fluorescence intermediate module
- EX: AT375/28X, Φ25mm;
- BS: AT415DC, 25.5X36X1mm;
- EM: AT435LP, Φ25mm), with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 385nm

UV4 long-pass LED fluorescence intermediate module
- EX: CT365/10X, Φ25mm;
- BS: T400LP, 25.5X36X1mm;
- EM: CT420LP, Φ25mm),
with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 365nm

B4 tuberculosis special module LED fluorescence intermediate module
- EX: 450/50BP, Φ25mm;
- BS: A480LP, 25.5X36X1mm;
- EM: 485LP, Φ25mm), with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 455nm

๐






๐






๐





๐





๐





๐





๐






๐





๐






๐






๐





๐





๐





๐





๐






๐





NKX30-RFA

NKX30-100HG

NKX30-LT100

NKX30-EGP

 Reflected fluorescence Illuminator

Reflected fluorescence Illuminator

100W mercury lamp house

Mercury lamp power supply

Eye guard plate

໐

໐

໐

໐

໐

໐

໐

໐

NKX30-HB100W

NKX30-HB100C

 DC mercury lamp

100W DC mercury lamp (OSRAM)

100W DC mercury lamp

໐

໐

໐

໐

NKX30-XYUV1


NKX30-XYUV1N


NKX30-XYV1


NKX30-XYB1


NKX30-XYB1N


NKX30-XYG1


NKX30-XYG1N


 Filter set

Fluorescence filter set (UV), EX: AT375/28X, Φ25mm;
BS: AT415DC, 25.5X36X1mm; EM: AT460/50M, Φ25mm;

Fluorescence filter set (UV), EX: 375/28, Φ25mm;
DM: 415, 25.7X36X1mm; EM: 460/50, Φ25mm;

Fluorescence filter set (V), EX: AT435/20X, Φ25mm;
BS: AT455DC, 25.5X36X1mm; EM: AT480/30M, Φ25mm;

Fluorescence filter set (B), EX: AT480/30X, Φ25mm;
BS: AT505DC, 25.5X36X1mm; EM: AT535/40M, Φ25mm;

Fluorescence filter set (B), EX: 480/30, Φ25mm;
DM: 505, 25.7X36X1mm; EM: 535/40, Φ25mm;

Fluorescence filter set (G), EX: AT560/40X, Φ25mm;
BS: AT600DC, 25.5X36X1mm; EM: AT635/60M, Φ25mm;

Fluorescence filter set (G), EX: 560/40, Φ25mm;
DM: 595, 25.7X36X1mm; EM: 635/60, Φ25mm;

๐


๐


๐


๐


๐


๐


๐


๐


๐


๐


๐


๐


๐


๐

NKX30-IFW2X   Ground glass insert set (used with 2X objective lens) ໐ ໐
/

Non-fluorescent immersion oil (30ml)

໐

໐

X40-035CT

X40-05CT

X40-065CT

X40-1CT

 Camera adapter
Accessories

0.35X  C-type camera adapter, adjustable (For biological microscope. not available for fluorescence, Phase Contrast, Polarizing, Metallurgical)

0.5X C-type camera adapter, adjustable

0.65X C-type camera adapter, adjustable

1X C-type camera adapter, adjustable

໐

໐

໐

໐

໐

໐

໐

໐

NKX30-MR1

NKX30-MR2

NKX30-EGR1

/

/

 Other options Accessories

High-precision micrometer, grid value 0.01mm

Standard micrometer, grid value 0.01mm

Grid (for eyepiece)

Hexagon wrench M3

Hexagon wrench M1.6

໐

໐

໐

●

●

໐

໐

໐

●

●
