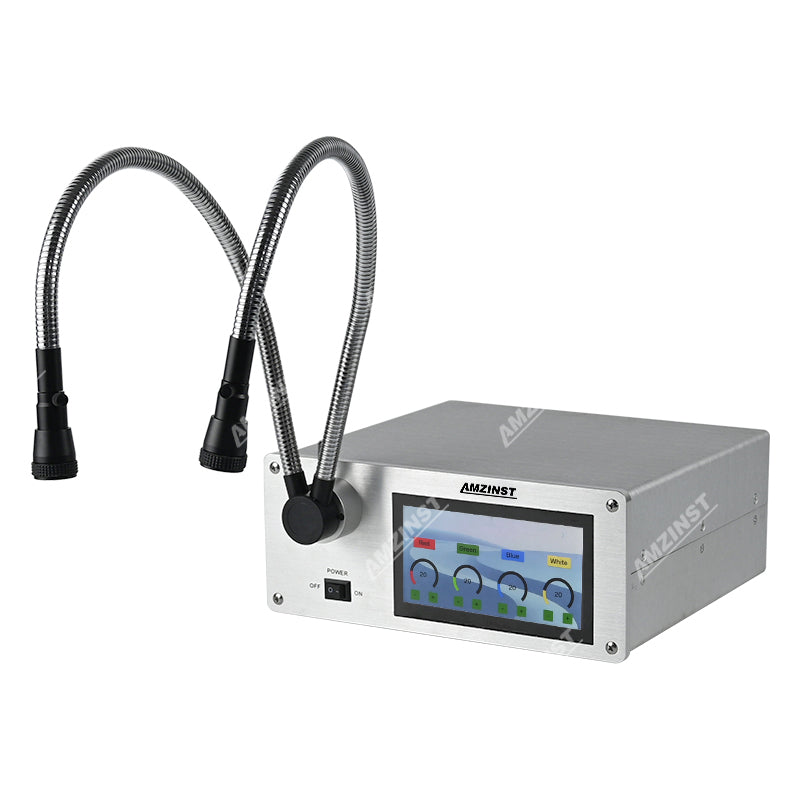

OFL-L60 RGBW quad-color COB LED Fiber Optic Microscopy Illuminator
- Precio habitual
- $0.00
- Precio habitual
-
- Precio de venta
- $0.00
- Precio unitario
- por
Descripción del producto

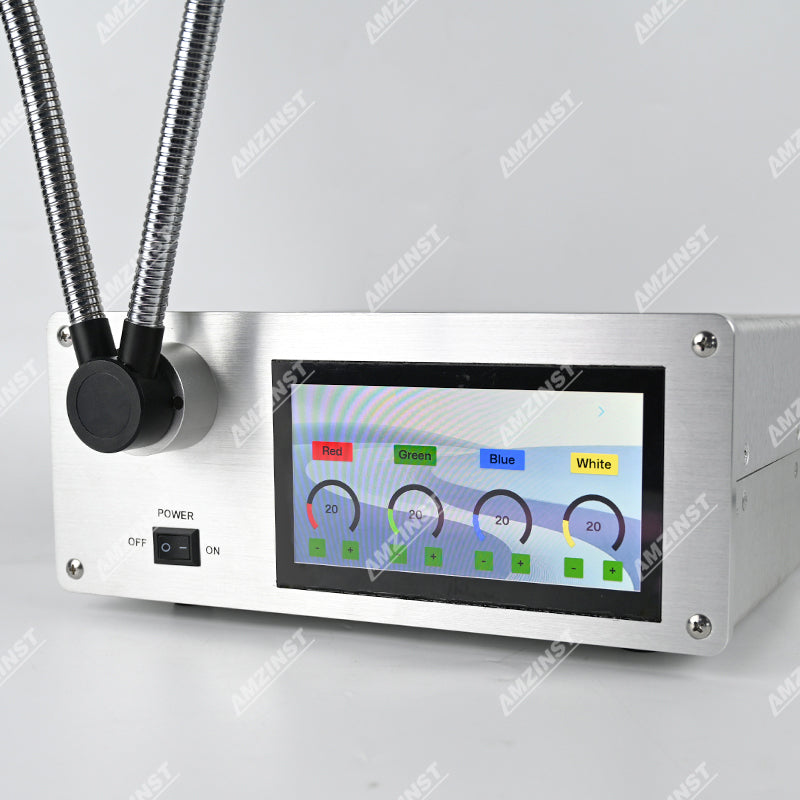

- The light source features a high-power single-die RGBW COB LED for strong luminous output and is equipped with a 13.1×6.9 cm touch screen for precise RGB adjustment.
- An efficient light-mixing optical system with a microlens array ensures uniform color blending, high light utilization, and stable color temperature.

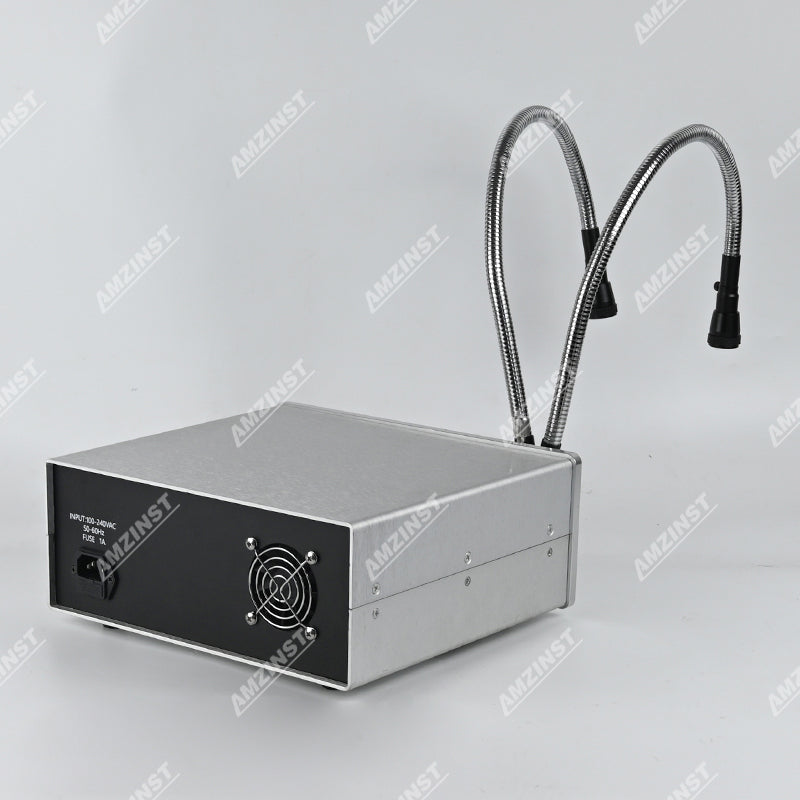

- The optimized thermal design, including a low-noise cooling fan and thermal insulation material, effectively dissipates heat and maintains minimal temperature rise at the fiber port.
- A rugged aluminum housing with EMI shielding and a patented single-screw fiber locking mechanism provides secure, easy connection and reliable operation.
- The high-efficiency driver supports flicker-free, continuous dimming via a multi-turn precision potentiometer, works with wide voltage input, and offers instant on/off.

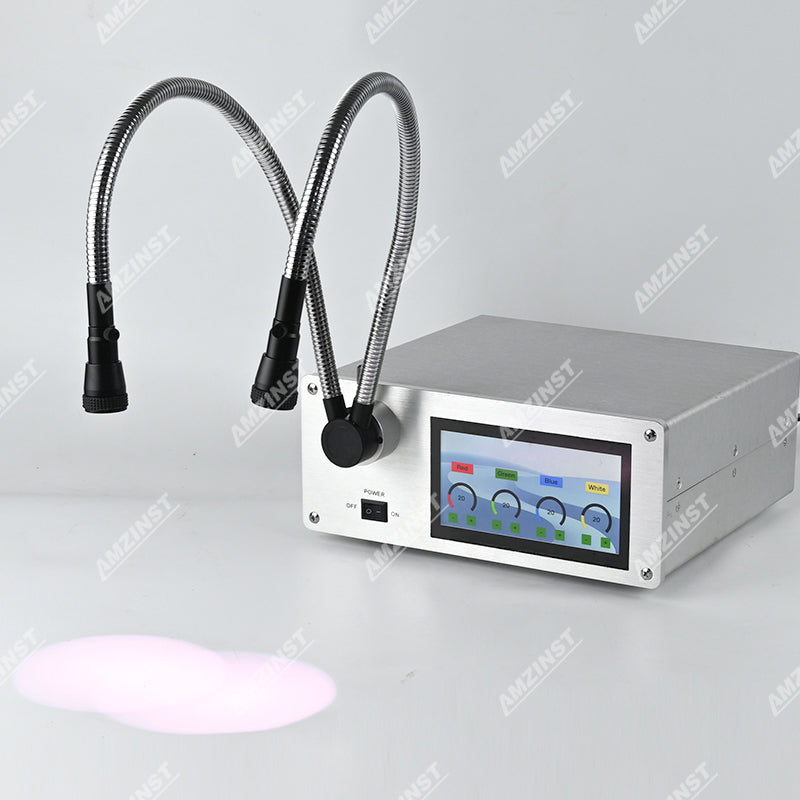

- The system accepts various fiber adapters and an optional focusing lens kit for uniform, sharp-edged illumination with enhanced contrast in microscopy.
Specification
LED Type: RGBW quad-color COB package
LED Power: 60W
LED Wavelength / Color Temperature:
• Red: 623nm
• Green: 525nm
• Blue: 450nm
• White: 6400K
LED Lifetime: ≥30,000 hours

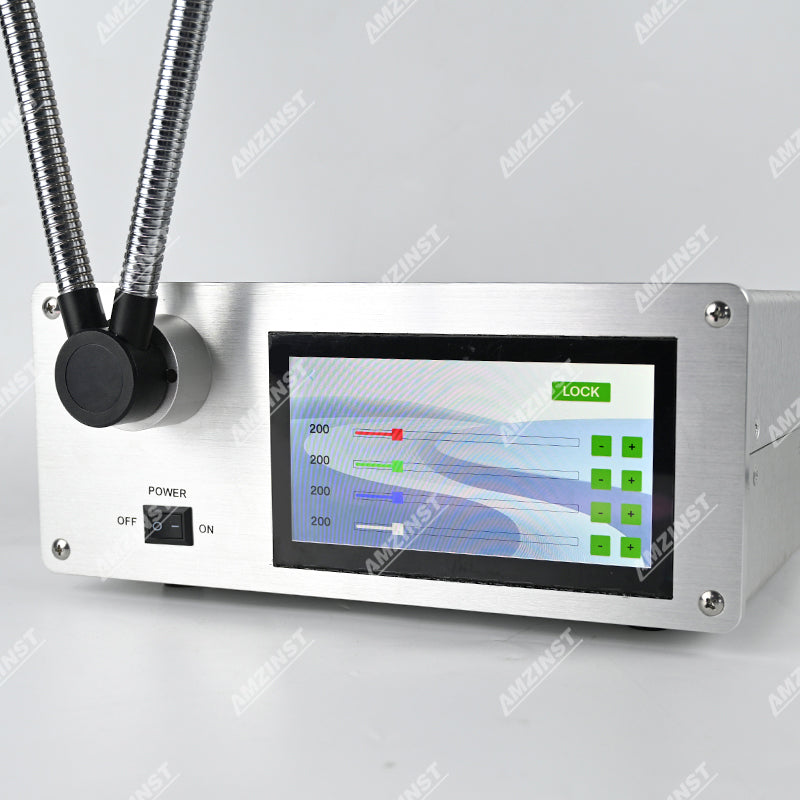

Dimming Method: Precision potentiometer linear continuous dimming, flicker-free; four colors can be dimmed independently
Noise Level: <45 dB @ 30cm
Power Input: 100–240V AC / 50–60Hz
Power Cord Length: 1.5 m (country-specific cord options available)

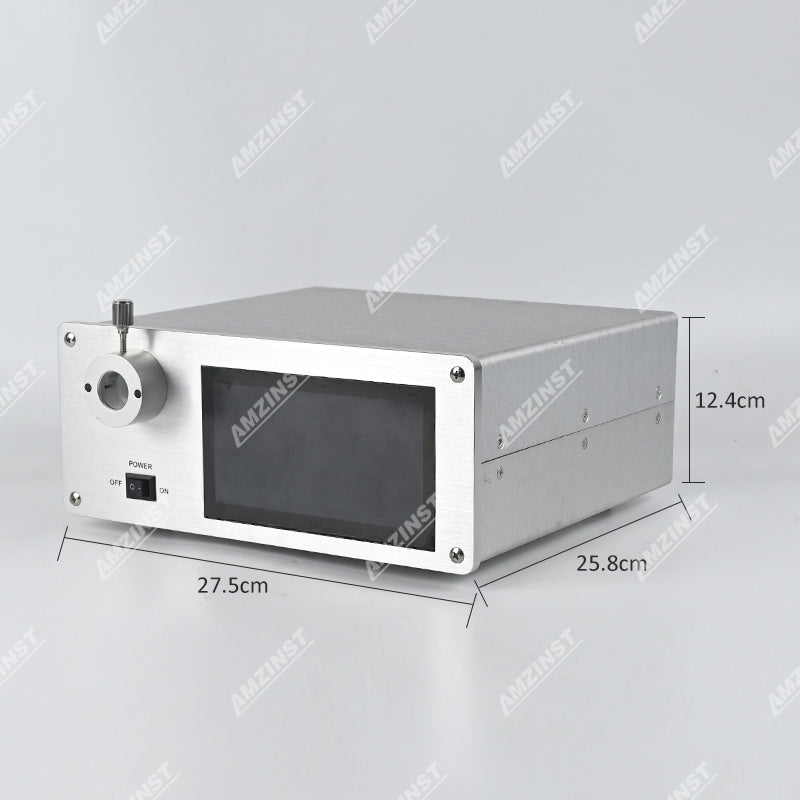

Chassis Dimensions: 280mm (L) × 260mm (W) × 115mm (H)

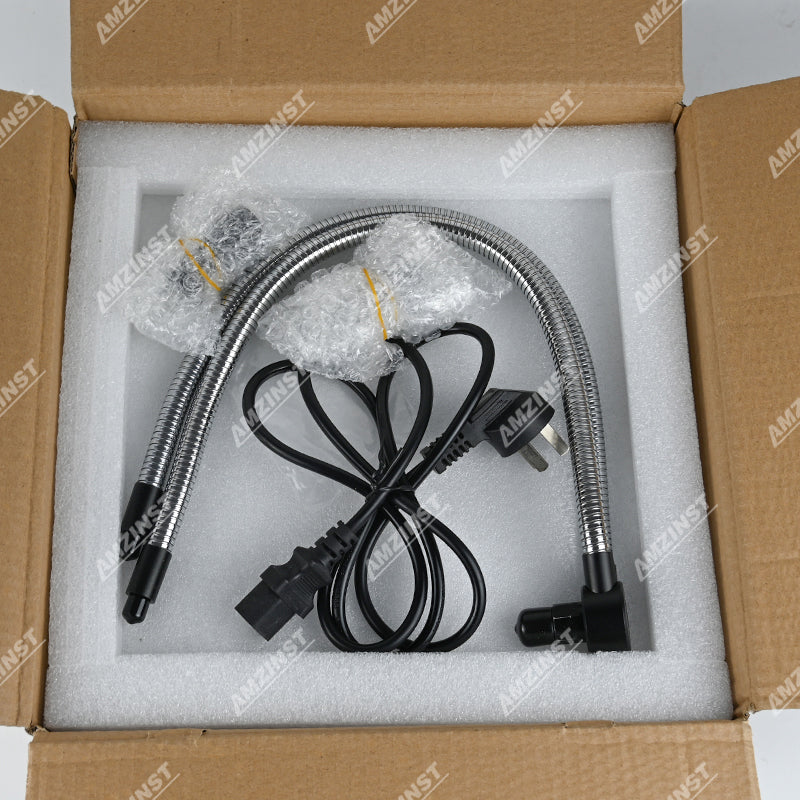

Standard Packing list:
1x Fiber optic illuminator
1x Dual fiber arm
1x Power cord
1x Adjustable Focusing Lens (pair)
