PCT-HX 4K HDMI USB 2.0 CMOS Color Microscope Camera
- Normaler Preis
- $0.00
- Normaler Preis
-
- Verkaufspreis
- $0.00
- Grundpreis
- pro
Produktbeschreibung
Experience stunning 4K at 30fps with zero-lag HDMI output. This standalone camera requires no computer—simply use the included mouse for intuitive on-screen control. Capture and store images/videos directly to a USB flash drive. PC connection remains an option.
Multilingual software (English, German, French, Japanese, Italian, Chinese) enables:
• Live image/video capture, time-lapse, HDR
• Measurement tools: distance, angle, area (polygon, circle, ellipsoid)
• Automatic dark frame noise reduction
• Enhanced depth of field from multi-focus images
• Video-based image stacking
• Reliable, versatile, and ready for professional microscopy
Specification
● Series: HDMI & USB Camera
● Sensor size: 1/8"
● Pixel size: 2.0*2.0 μm
● Effective pixel: 4K
● Resolution: 3840*2160@30FPS

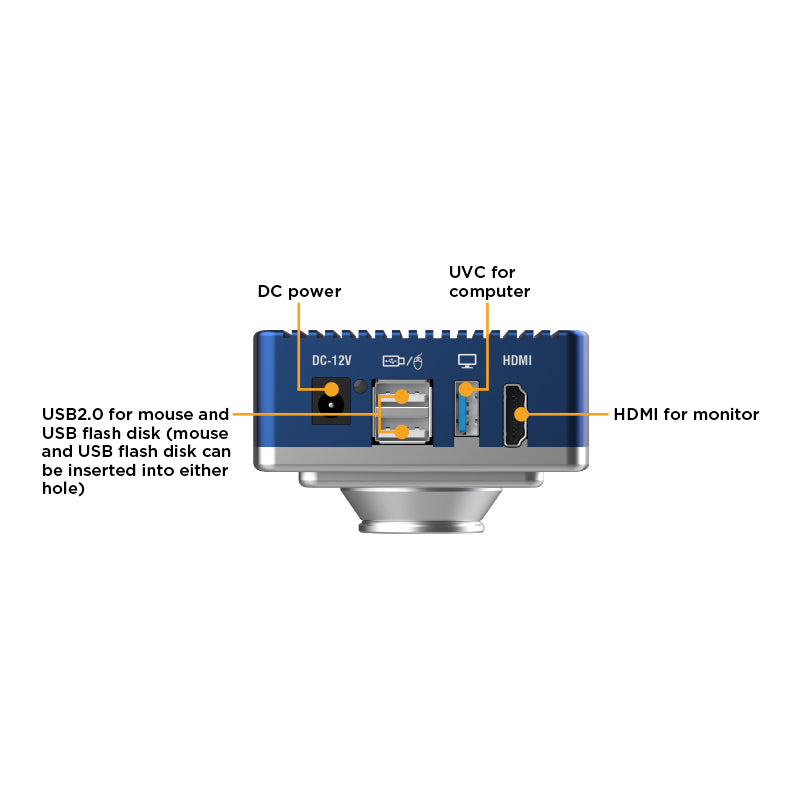

● Output: HDMI, USB, USB flash disk
● Chip architecture: ARM dual-core architecture
● Operating system: Linux
● Kernel structure: Dual-core ARM Cortex-A7
● Clock speed: 1.5GHz
● Power: DC-12V/1A
● Camera dimension: 83.46*74*49.5mm/0.3kg
● Camera body material: Aluminum
Features
● Basic function: Brightness, Contrast, Saturation, White balance, Black-and-white switch, HDR wide dynamic
● UI interface: Easy mouse control
● Image adjustment: Exposure, Flicker restrain, Acutance, Gamma, Cb/ Crgain adjustment
● Camera function: digital amplification, mirroring, contrast, noise reduction, screen freeze. Cross-line can define color, line, hide and display
● Crosshair: small crosshair in the center, can adjust color, line size, hide or display
● Reticle: 8 sets of the reticle, can adjust the color, size, shift, and hide
● Grid line: 8 sets of grid lines, each set can be corresponding to one product
