ATS-PRG Ball & Socket Oblique/Tilting Stage with ESD Rubber Working Plate With Grounding Straps

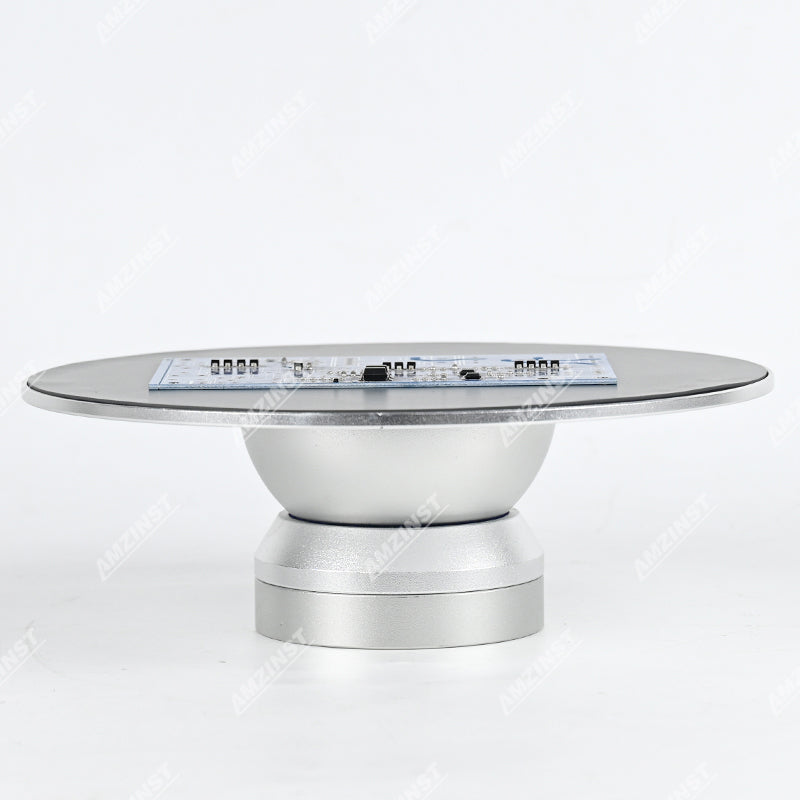

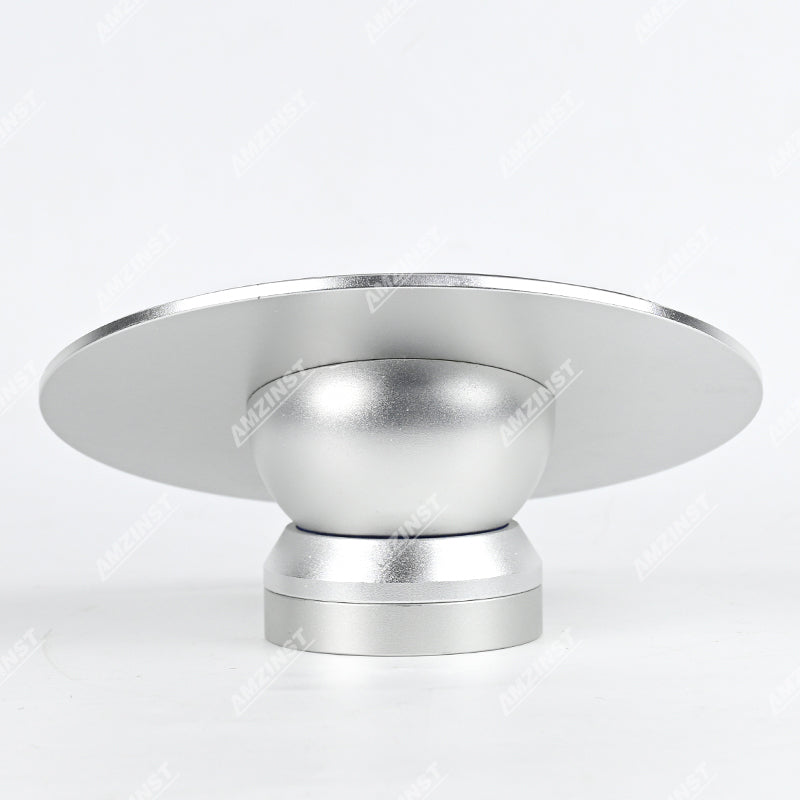

This stage features a 220mm ESD-safe rubber work plate, making it ideal for handling sensitive electronic components. Its compact design, with a 75mm height and 85mm base, offers a full 360° swivel and tilts up to 45° for optimal positioning.

The durable silver-anodized finish ensures scratch resistance, while the 1.49 kg weight provides solid stability during operation. Engineered for precision, this stage is the perfect solution for angled tasks in ESD-protected environments.

Ideal for Stereo Microscopy: The ATS-PR ball-joint tilt stage is an exceptional tool for multi-angle sample observation under stereo microscopes, fundamentally eliminating dimensional constraints in your inspection workflow.

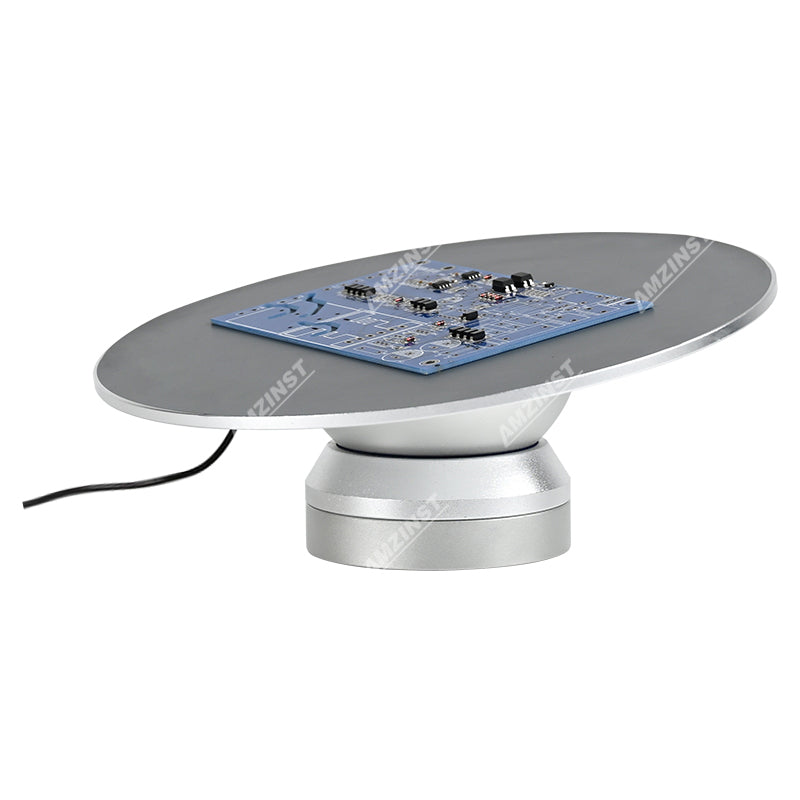

With grounding straps, the user can wear them to prevent the buildup of static electricity further. These straps are connected to a grounding point, which helps to dissipate any static charges that may be present.

Advantage
- Conventional fixed stages require users to manually move or rotate the sample—a process that is not only cumbersome but also often leads to loss of observational focus.

- In contrast, this innovative stage features a unique 360° omnidirectional tilt function, allowing users to effortlessly access top, side, and even bottom views of the sample simply by adjusting the platform angle, without any direct contact.

- This not only streamlines the workflow significantly but also reveals stereoscopic details, layered structures, and surface textures that are undetectable from a single plane.

- Whether applied in flaw detection of precision electronic components, dissection and analysis of biological specimens, or observation of fractured surfaces in industrial materials, this stage delivers stable, precise, and ESD-safe multi-angle observation support.

- It thereby substantially enhances both inspection comprehensiveness and work efficiency.

Specification

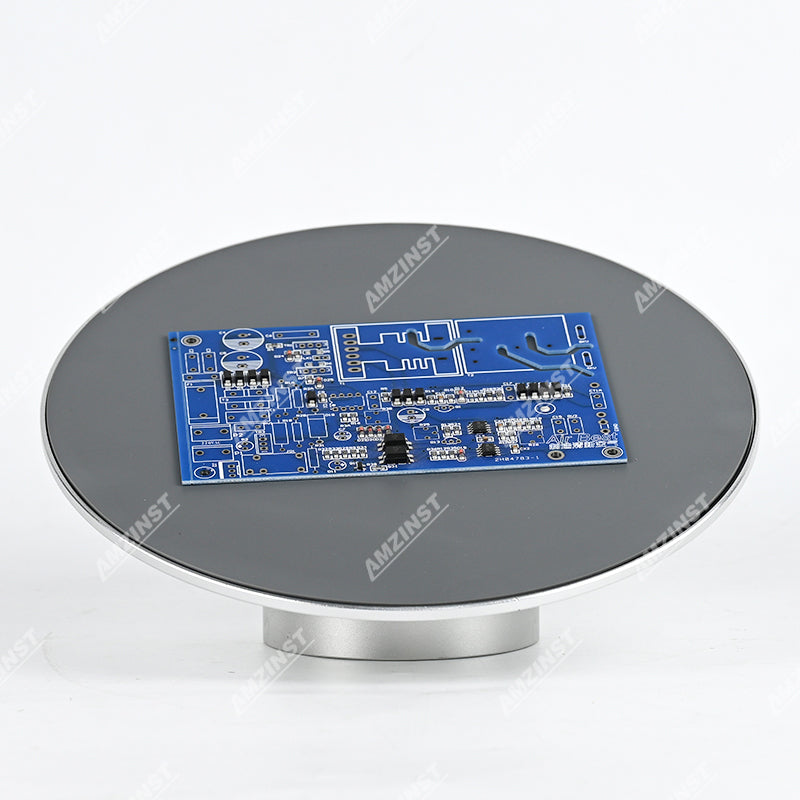

● ESD rubber plate diameter: 220 mm

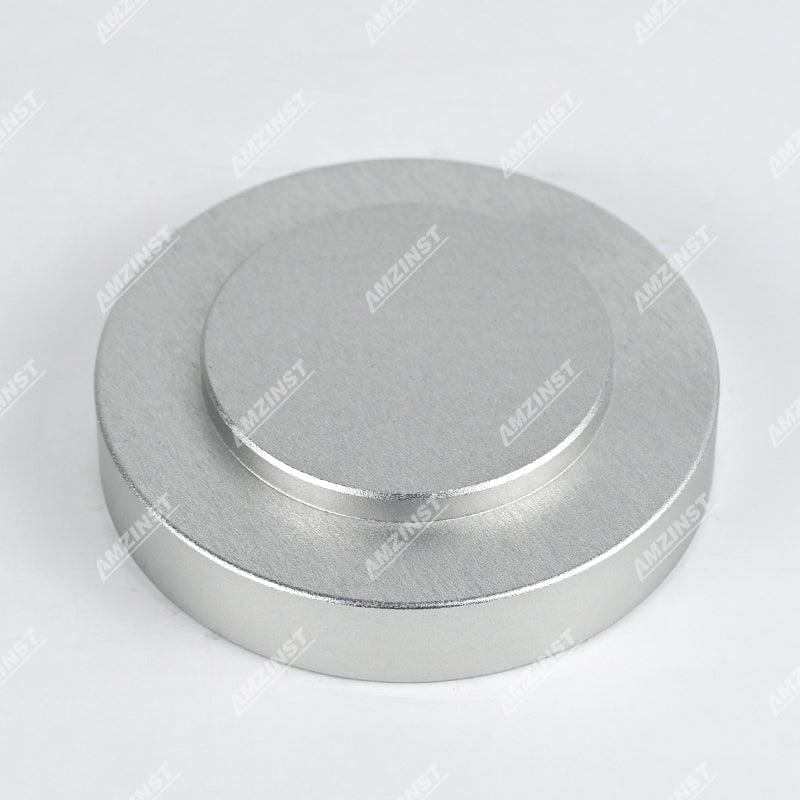

● Base diameter: 85 mm
● The distance from the bottom to the top ESD rubber table: 75 mm
● Tiltable area: 360°

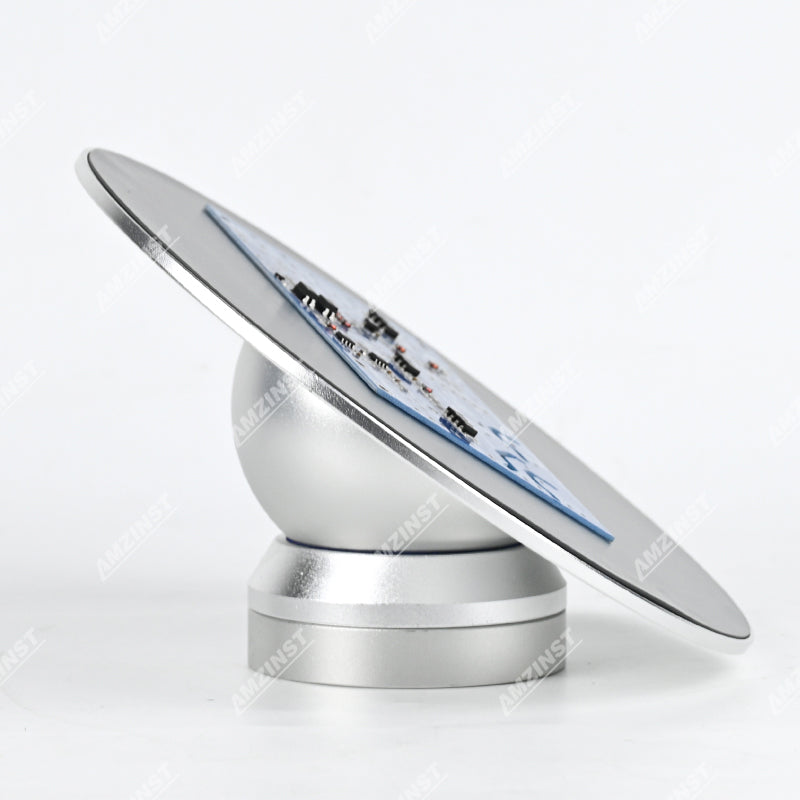

● Tiltable angle: up to 45°
● Surface treatment process: Anodized silver
● Weight: 1.49 kg
● Cord length: 2.5 m
● Grounding point: female socket adapter 10 mm
● Ring eyelet: 4 mm
● Resistance: 1MOhm R
● Cord color: Black

The function of Grounding straps: with grounding straps, the user can wear them to prevent the buildup of static electricity further. These straps are connected to a grounding point, which helps to dissipate any static charges that may be present.
