Educational Stereo Microscope

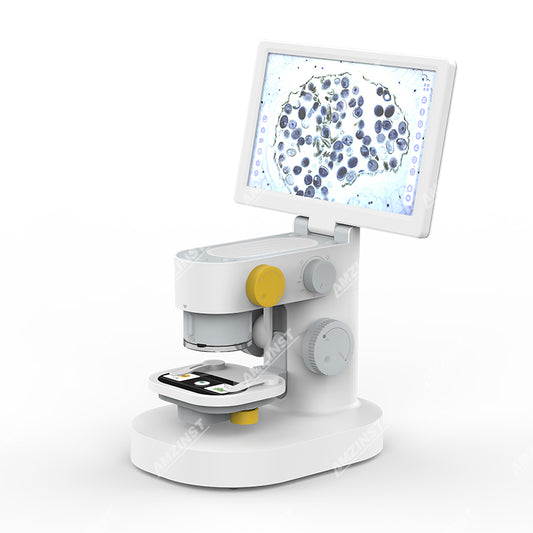

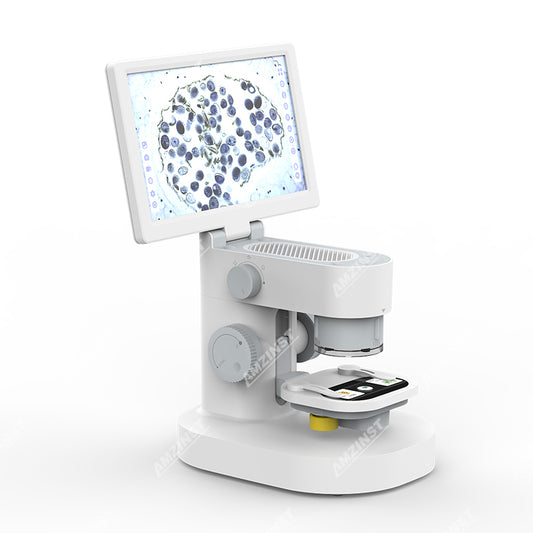

- Screen: 9.0-inch (1024*600) full-color capacitive touchscreen- Photo resolution: 720P- Video resolution: 720P- Video format: AVI- Image format: BMP- Focus mode: manual- Measurement function: support- Digital Zoom: not supported- Illumination: 12 LED lights above the light source, one LED light below(Brightness independent adjustable)- Memory: 32G- White balance: automatic- Automatic: Exposure- PC operating systems: Windows XP,win7,win8.1,win10, Mac OS x 10.5 or higher- Support...

● Head: Binocular, Upright 45 degree inclined, interpupillary distance: 55-75mm● Eyepiece: WF10X● Objective: 2X● Working distance: 70mm● Built-in incident light: Incandescent lamp or LED● Power supply: 2 units of AA batteries● Body material: environmentally friendly plastic

● Head: Binocular, Upright 45 degree inclined, interpupillary distance: 55-75mm● Eyepiece: WF10X● Objective: 2X● Working Distance: 70mm● Built-in Incident Light: Incandescent lamp or LED● Power supply: 2 units of AA batteries● Body material: environmentally friendly plastic

● Head: 45° inclined, 360°rotational monocular head● Eyepiece: Locked-on 10X wide-field eyepiece● Objectives: 2X glass objective● Magnification: 20x● Stage: 14 x 11cm stag with clips, 6cm reversible black and white stage plate● Stand: Pillar stand with focus.● Working distance: 80mm● Body material: metal fame

● Head: 45° inclined, 360°rotational monocular head● Eyepiece: Locked-on 10X wide-field eyepiece● Objectives: 2X glass objective● Magnification: 20x● Stage: 14 x 11cm stag with clips, 6cm reversible black and white stage plate● Stand: Pillar stand with focus.● Working distance: 80mm● Body material: all metal fame

● Eyepieces: 10X● Objective: 1.5X● Magnification: 15X● Illumination: LED● Weight: 300g● Body material: environmentally friendly plastic● Body color: Green & withe

● Eyepieces: 10X● Objective: 1.5X● Magnification: 15X● Illumination: LED● Weight: 300g● Body material: environmentally friendly plastic● Body color: pink

● Eyepieces: 10X● Objective: 1.5X● Magnification: 15X● Illumination: LED● Weight: 300g● Body material: environmentally friendly plastic● Body color: bule & orange

● Eyepieces: 10X● Objective: 1.5X● Magnification: 15X● Illumination: LED● Weight: 300g● Body material: environmentally friendly plastic● Body color: bule

● Head: 45° inclined and 360 rotatable binocular head● Left diopter adjustment: ±5dp.● The interpupillary distance: 55-75mm● Eyepieces: WF 10x/20 mm● Objective: Achromatic 2x/4x● Stand: Pillar stand with focus● Illumination: Incident &transmitted 1 W LED● Color temperature: 6,300 K● Power: Multi-plug 100-240Vac/5Vdc external power supply.

● Head: 45° inclined and 360 rotatable binocular head● Left diopter adjustment: ±5dp.● The interpupillary distance: 55-75mm● Eyepieces: WF 10x/20 mm● Objective: Achromatic 1x/3x● Stand: Pillar stand with focus● Illumination: Incident &transmitted 1 W LED● Color temperature: 6,300 K● Power: Multi-plug 100-240Vac/5Vdc external power supply.

● Head: 45° inclined and 360 rotatable binocular head● Left diopter adjustment: ±5dp.● The interpupillary distance: 55-75mm● Eyepieces: WF 10x/20 mm● Objective: Achromatic 2x/4x● Stand: Fixed stand with focus and handle● Illumination: Incident &transmitted 1 W LED● Brightness Control: touch control● Color temperature: 6,300 K● Power: Multi-plug 100-240Vac/5Vdc external power...

● Head: 45° inclined and 360 rotatable binocular head● Left diopter adjustment: ±5dp.● The interpupillary distance: 55-75mm● Eyepieces: WF 10x/20 mm● Objective: Achromatic 1x/3x● Stand: Fixed stand with focus and handle● Illumination: Incident &transmitted 1 W LED● Brightness Control: touch control● Color temperature: 6,300 K● Power: Multi-plug 100-240Vac/5Vdc external power...

● Head: Binocular Head, 45° inclined, Interpupillary distance 55-75mm● Left diopter adjustment: ±5dp.● Eyepieces: WF 10x/20 mm● Objective: Achromatic 1x/2x/4x● Stand: High-grade fixed stand with focus and handle● Illumination: Incident &transmitted 1 W LED● Color temperature: 6,300 K● Power: Multi-plug 100-240Vac/5Vdc external power supply

ACCESSORIESNUMBER ITEM SPECIFICATION ASH-93S ASH-95S ASH9-BH Head Binocular Head, 45° inclined, Interpupillary distance 55-75mm, Left diopter adjustment: ±5dp. ● ● ASH9-3M   ASH9-5M   Camera Digital head is supplied with a 3.0 MP USB-2.0 COMS camera, including measurement & capture software Digital head is supplied with a 5.0 MP USB-2.0, 1/2.8” CMOS...

● Head: 45° inclined binocular head ● Diopter adjustment: ± 5dp● Interpupillary distance: 55-75mm● Eyepieces: WF10X● Objective: 2X● Incident Illumination: Halogen or LED illumination● Power supply: 110V/60Hz or 220V/50Hz

● Head: 45° inclined binocular head ● Diopter adjustment: ± 5dp● Interpupillary distance: 55-75mm● Eyepieces: WF10X● Objective: 2X/4X or 1X/3X● Working distance: 57mm● Working stage: 60mm frosted glass● Incident &transmitted Illumination: Halogen or LED illumination● Power supply: 110V/60Hz or 220V/50Hz

  AST-5C AST-5CL Binocular head 45° inclined, 360° rotatable ● ● Diopter adjustment ± 5dp ● ● Interpupillary distance 55-78mm ● ● Eyepieces WF5X/16.2 mm WF10X/20 mm WF15X/15 mm WF20X/10 mm WF10X/20 mm (reticule 0,1 mm) ໐ ● ໐ ໐ ໐ ໐ ● ໐ ໐ ໐ Objective Achromatic 2X/4X with...

● Head: 45° inclined 360° rotatable binocular head ● Diopter adjustment: ± 5dp● Interpupillary distance: 55-75mm● Eyepieces: WF10X● Objective: 2X/4X or 1X/3X● Working distance: 76mm● Working stage: 60mm Frosted glass● Incident &transmitted Illumination: Halogen or LED illumination● Power supply: 110V/60Hz or 220V/50Hz

● Head: 45° inclined 360° rotatable binocular head ● Diopter adjustment: ± 5dp● Interpupillary distance: 55-75mm● Eyepieces: WF10X● Objective: 2X/4X or 1X/3X● Working distance: 76mm● Working stage: 60mm Frosted glass● Incident &transmitted Illumination: Halogen or LED illumination● Power supply: 110V/60Hz or 220V/50Hz
