Understanding Curvature of Field in Optics

Introduction

In optical systems, various aberrations can degrade image quality. One such aberration is **curvature of field**, which affects the sharpness of an image across the focal plane. Even if other aberrations like spherical aberration or chromatic aberration are corrected, curvature of field can still cause blurring away from the center of the image.

What is Curvature of Field?

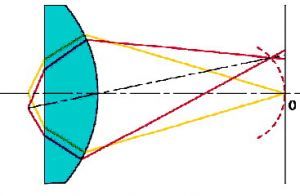

Curvature of field, also known as **Petzval field curvature**, is an optical aberration where the optimal focal plane is not flat but instead curved. This means that:

- Points in the center of the image may be in sharp focus.
- Points toward the edges or corners of the image appear out of focus because they lie on a curved surface rather than a flat plane.

This effect is particularly noticeable in wide-angle lenses and some microscope objectives.

Causes of Field Curvature

The curvature arises due to the **Petzval sum**, a mathematical expression that describes how optical elements contribute to the curvature of the image surface. A simple lens system with positive power tends to produce a curved focal plane.

Key Factors:
Lens Power Distribution – The arrangement of lenses affects the Petzval sum.
Refractive Index – Higher-index materials can help reduce field curvature.
Lens Design – Symmetrical lens designs or the use of field flattener elements can mitigate this effect.

Effects on Photography and Imaging

- In photography, field curvature can cause **edge softness** even when the center is sharp.
- Some lenses intentionally retain field curvature for artistic effects.
- In scientific imaging (e.g., microscopy or astronomy), field curvature can degrade precision, requiring corrective optics.

How to Correct Field Curvature

1. Field Flatteners– Special lens elements designed to counteract the Petzval curvature.
2. Telecentric Lenses – Used in machine vision to maintain a flat focal plane.
3. Software Correction – Some modern cameras use digital post-processing to sharpen edges.
4. Optimal Lens Grouping – Designers balance positive and negative lens elements to minimize curvature.


Curvature of the field is an important consideration in lens design, affecting both consumer and scientific optics. While it can sometimes be used creatively, most high-performance optical systems aim to minimize it through careful engineering. Understanding this aberration helps photographers and engineers make informed choices about lens selection and correction methods.
