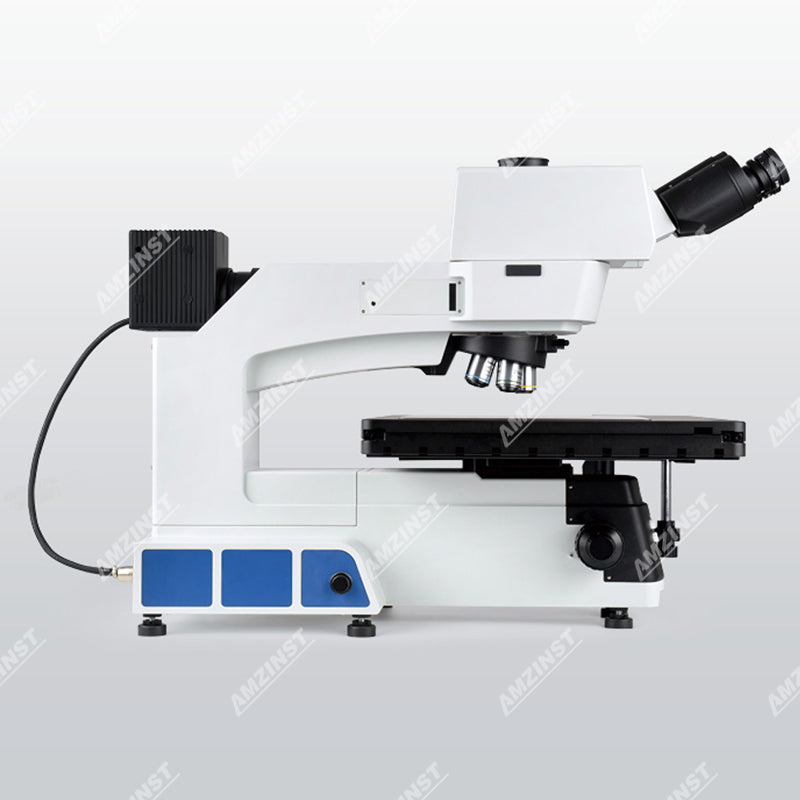

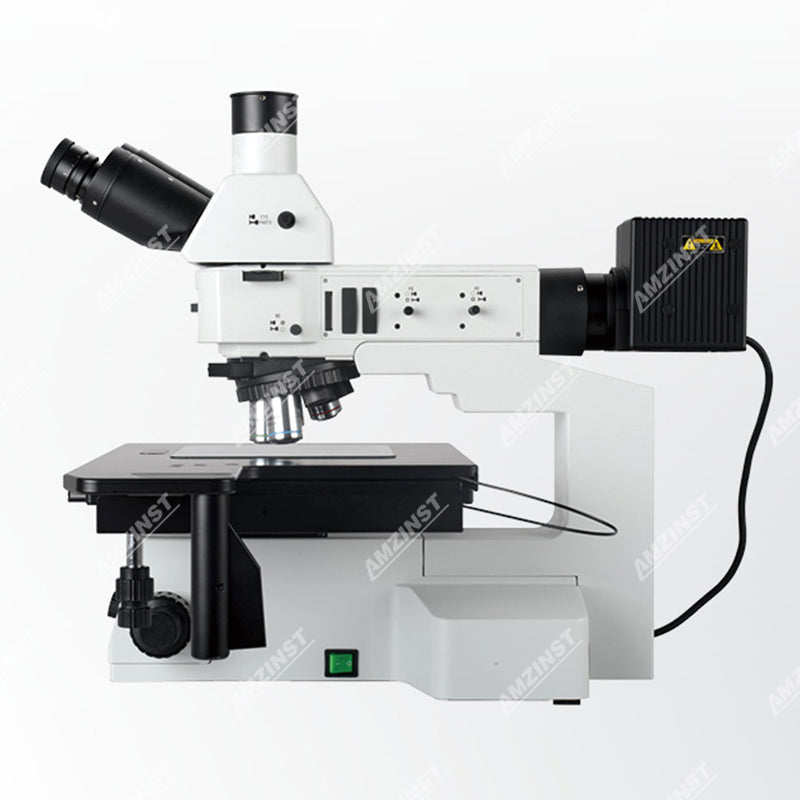

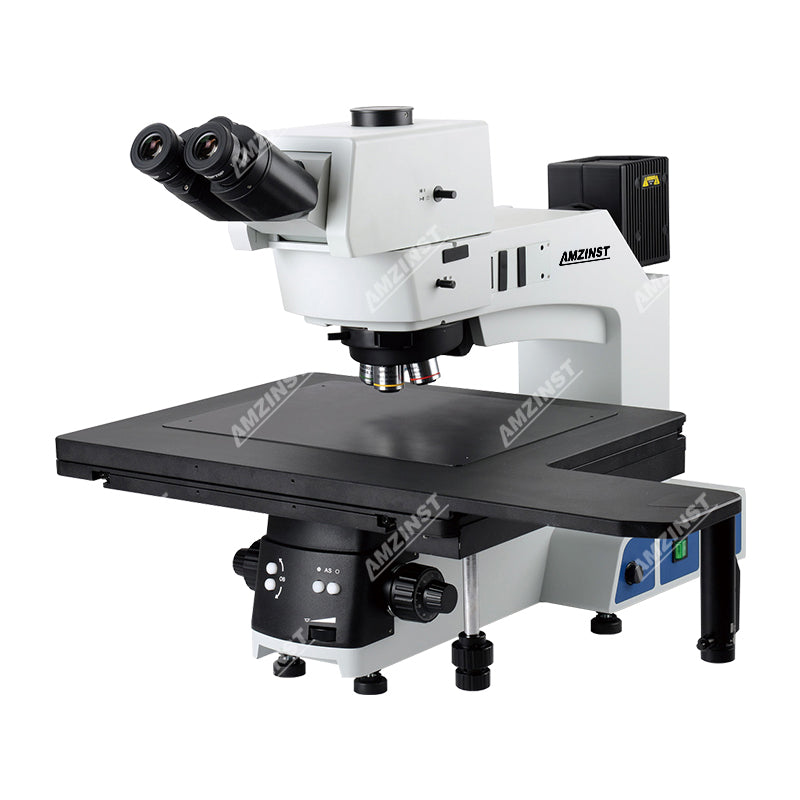

AJX-12R Semiconductor FPD Inspection & Flat Panel Display Inspection Microscopes
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Product Description
| AJX-12R | ||
| Eyepieces |
High Eye-point Wide Field Plan Eyepiece PL10X/25mm, diopter adjustable High Eye-point Wide Field Plan Eyepiece PL10X/25mm, diopter adjustable, with reticle |
●●
|

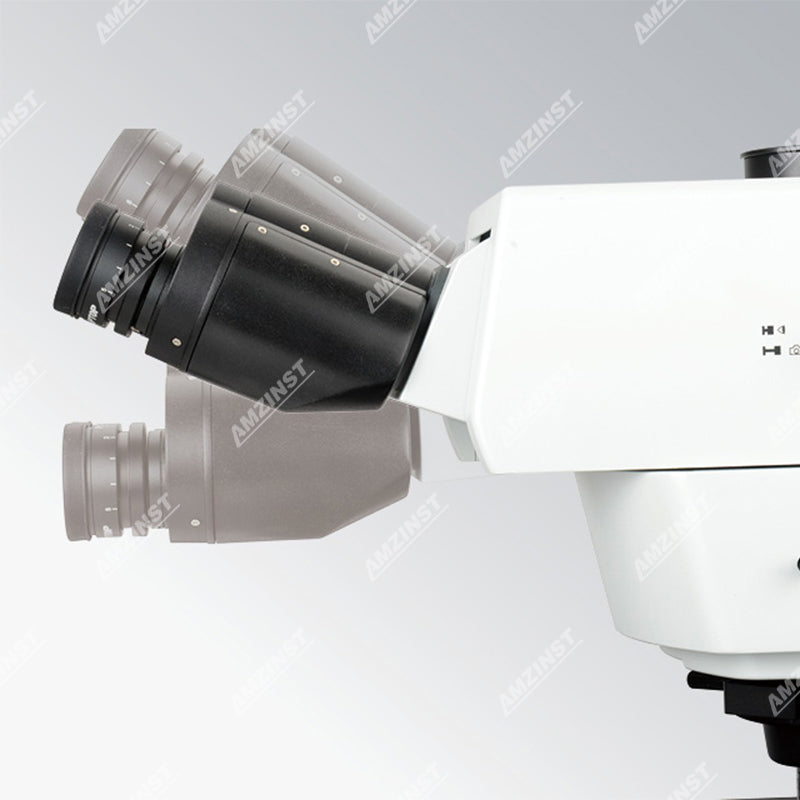

| Viewing Head |
0-35° Tilting trinocular head, Erect image, interpupillary distance: 50-76mm, splitting ratio: 100 : 0 or 0 : 100 |
● |
| Objective 1 |
B&D semi-aprochromatic metallurgical objective 5X / 0.15, WD=13.5mm B&D semi-aprochromatic metallurgical objective 10X / 0.3, WD=9.00mm B&D semi-aprochromati metallurgicalc objective 20X / 0.5, WD=2.50mm LWD B&D semi-aprochromatic metallurgical objective 20X / 0.4,WD=8.50mm B&D semi-aprochromati metallurgicalc objective 50X / 0.8, WD=1.00mm B&D semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm |
● ●
●
|
| Objective 2 |
LWD B&D semi-aprochromati metallurgicalc objective 50X / 0.55, WD=7.5mm LWD B&D semi-aprochromati metallurgicalc objective 100X / 0.8, WD=2.1mm |
●
|
| Objective 3 |
Bright field semi-aprochromati metallurgicalc objective 5X / 0.15, WD=19.5mm Bright field semi-aprochromati metallurgicalc objective 10X / 0.30, WD=10.9mm Bright field semi-aprochromati metallurgicalc objective 20X / 0.50, WD=3.2mm Bright field semi-aprochromati metallurgicalc objective 50X / 0.80, WD=1.20mm Bright field semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm |
|
| DIC |
DIC Slider |
|

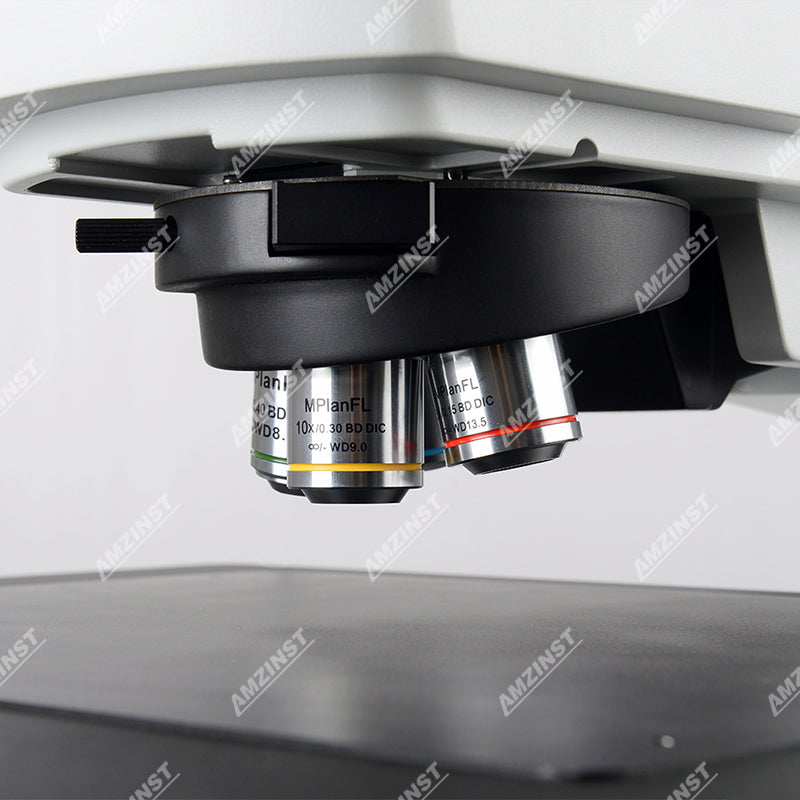

| Nosepiece |
Electronic BD sextuple nosepiece with DIC slot Bright & Dark field quintuple nosepiece ( with DIC slot ) Bright & Dark field sextuple nosepiece( with DIC slot ) Brigh field sextuple nosepiece ( with DIC slot ) Brigh field Septuple nosepiece ( with DIC slot ) |
●
|

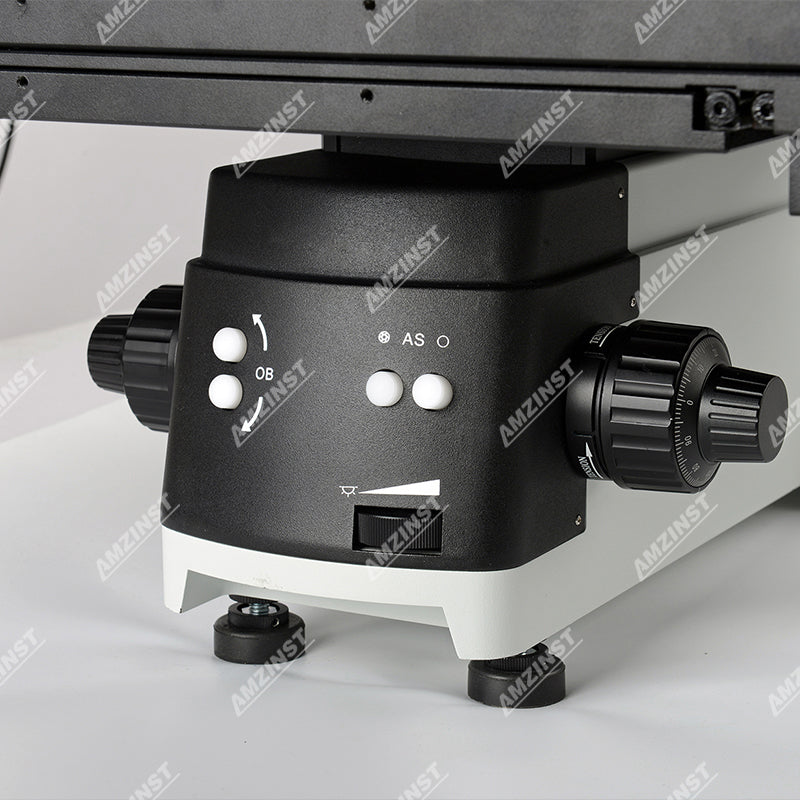

| Focus |
Coaxial Coarse and fine focusing adjustment, Coarse adjustment distance: 35mm, precision of fine adjustment: 0.001mm, with loosen and tight limit ring |
● |
| Stage |
14 X 12 inches three-layer mechanical stage with low position coaxial adjustment, size: 718mm X 420mm, moving range: 356mm X 305mm; with clutch handle for quick movement; glass plate for reflected use |
● |
| Condensor |
B&D reflect illumination, with Electronic Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device sIth bright and dark field |
● |
| Illumination |
12V 100W Halogen lamp( for reflection / Transmitted ) 12V 100W Halogen lamp( PHILIPS 7724 ) |
● ●● |
| Accessories |
12 inch Rrotatable wok plate, apply to 6, 8,12 inch Wafer |
|
| IF Filter |
Blue IF Filter, ( for reflection ): ≤ 480nm Green IF Filter, ( for reflection ): 520-570nm Red IF Filter, ( for reflection ): 630-750nm Natural IF Filter, ( for reflection ) |
● |
| Polarizing kits |
Polarizer ( for reflection ) Fixed analyzer ( for reflection ) |
● ● |
| Camera adapter Accessories |
0.35X camera adapter, C-type interface, adjustable 0.5X camera adapter, C-type interface, adjustable 0.65X camera adapter, C-type interface, adjustable 1X camera adapter, C-type interface, adjustable |
