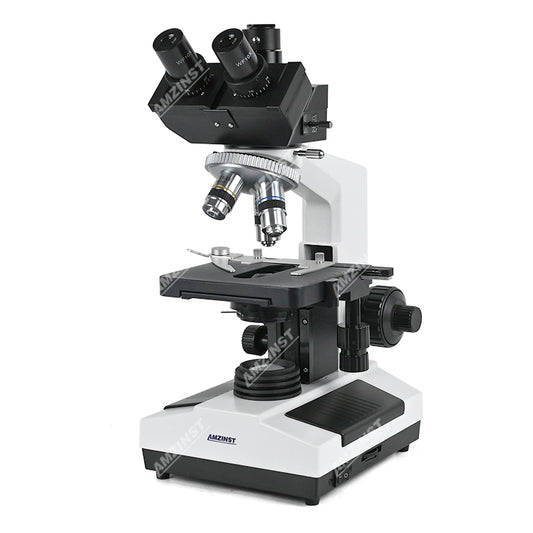

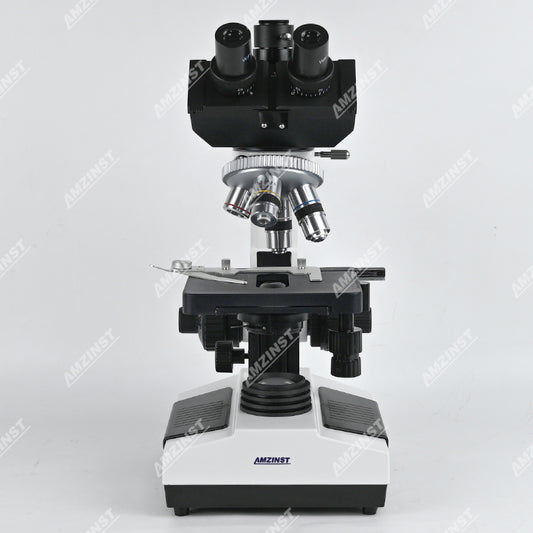

NK-107TL 40X-1600X Trinocular Biological Microscope (30° inclined head)ACCESSORIESNUMBER ITEM SPECIFICATION NK-107BL NK-107TL 107-HEB45 107-HET45 107-HEB30 107-HET30 Viewing head Sliding binocular head, 45° inclined, 360° rotatable, interpupillary distance 55-75mm, both diopter adjustment ±5 Sliding trinocular head, 45° inclined, 360° rotatable, interpupillary distance 55-75mm, Left diopter adjustment ±5 Seidentopf binocular head, 30° inclined, 360° rotatable, interpupillary distance 55-75mm, both diopter adjustment ±5 Seidentopf trinocular head,...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-95B 2023 New Design Compound Binocualr Microscope with Handle & Achromatic ObjectivesOur NK-95 upright biological microscope is a versatile and reliable tool for both amateur and professional applications. With its high-quality optics and durable construction, this microscope is perfect for use in research, education, and clinical settings. The NK-95 features a powerful magnification range of 40x to 1000x, providing unparalleled clarity...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-95T 2023 New Design Compound Trinocualr Microscope with Handle & Achromatic ObjectivesOur NK-95 upright biological microscope is a versatile and reliable tool for both amateur and professional applications. With its high-quality optics and durable construction, this microscope is perfect for use in research, education, and clinical settings. The NK-95 features a powerful magnification range of 40x to 1000x, providing unparalleled clarity...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-

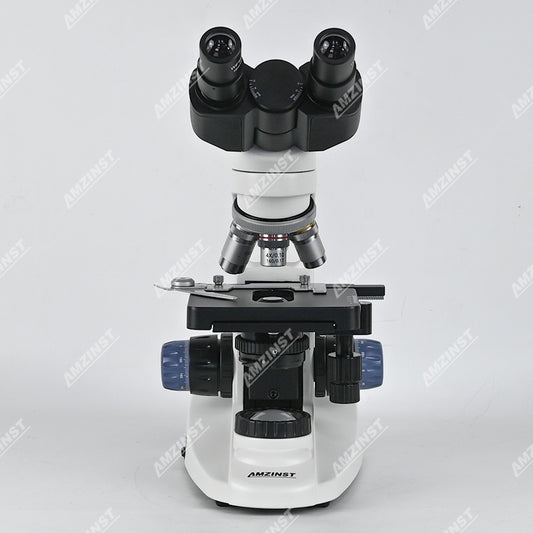

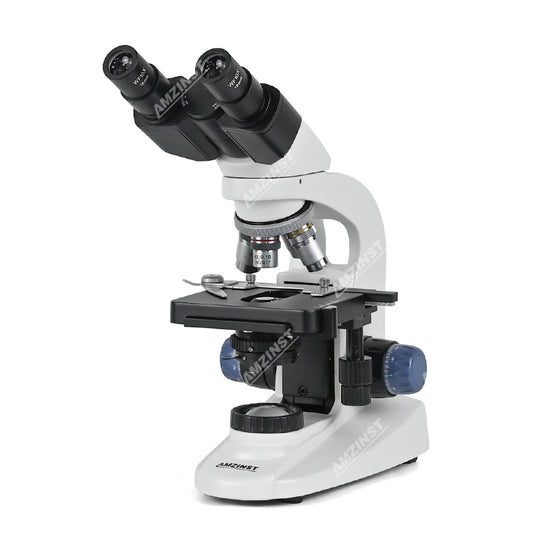

NK-90B 2022 New Design Compound Binocualr Microscope With Achromatic ObjectivesNK-90B NK-90T NK-95B NK-95T Optical System Finite optical system ● ● ● ● Viewing Head Seidentopf binocular viewing head, inclined at 30º, 360º rotatable Seidentopf trinocular viewing head, inclined at 30º, 360º rotatable ● ● ● ● Eyepiece WF10X/18mm wide-field eyepiece WF10X/18mm WF16X/13mm wide-field eyepiece WF16X/13mm...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-

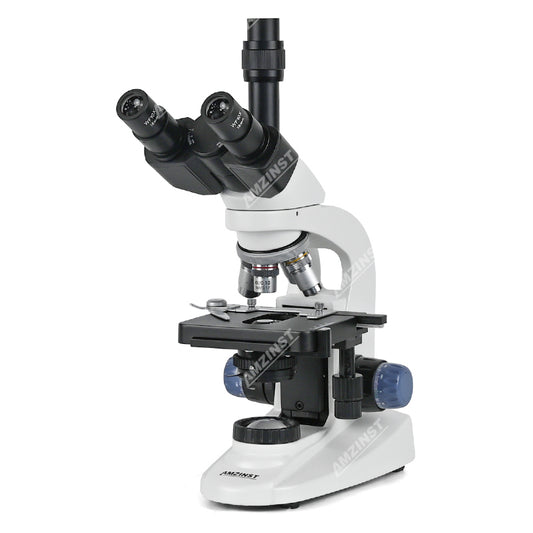

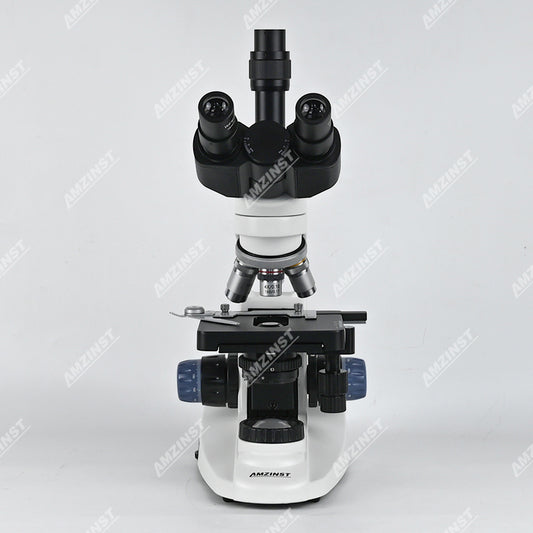

NK-90T 2022 New Design Compound Trinocualr Microscope With Achromatic ObjectivesNK-90B NK-90T NK-95B NK-95T Optical System Finite optical system ● ● ● ● Viewing Head Seidentopf binocular viewing head, inclined at 30º, 360º rotatable Seidentopf trinocular viewing head, inclined at 30º, 360º rotatable ● ● ● ● Eyepiece WF10X/18mm wide-field eyepiece WF10X/18mm WF16X/13mm wide-field eyepiece WF16X/13mm...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-X35 Series Biological MicroscopeOptical system Finite color corrected optical system Viewing head 30° inclined monocular head 30° inclined binocular head, interpupillary distance: 50-75mm, ±5 diopter adjustable 30° inclined trinocular head, splitting ratio R:T=80:20, interpupillary distance: 50-75mm, ±5 diopter adjustable 30° inclined digital viewing head, built-in 3.0 mega pixels CMOS, USB output; interpupillary distance: 50-75mm,...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-62B Infinity Optical Binocular Biological MicroscopeOptical System Infinite Optical System Eyepiece WF10×/20 Viewing Head Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi Infinite Semi-Plan Achromatic Objective 4× NA=0.1 WD=16.8 10× NA=0.25 WD=5.8 40× ...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-25A educational biological microscope● Head: monocular, inclined at 45°, 360°rotatable● Eyepiece: WF10x/18mm● Achromatic objectives: 4x, 10x, 40xs, 100xs(oil)● Nosepiece: quadruple nosepiece● Condenser: abbe condenser NA1.25 with diaphragm filter● Focusing: coaxial coarse and fine adjustment, moving range 22mm● Stage: double layer mechanical stage 140x130mm● Illumination: LED illumination brightness adjustment● Product single size: 25x21.5x37cm
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-25B Educational Biological Microscope● Head: binocular, inclined at 45°, 360°rotatable● Eyepiece: WF10x/18mm● Achromatic objectives: 4x, 10x, 40xs, 100xs(oil)● Nosepiece: quadruple nosepiece● Condenser: abbe condenser NA1.25 with diaphragm filter● Focusing: coaxial coarse and fine adjustment, moving range 22mm● Stage: double layer mechanical stage 140x130mm● Illumination: LED illumination brightness adjustment● Product single size: 25x21.5x37cm
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-25C Educational Biological Microscope● Head: trinocular, inclined at 45°, 360°rotatable● Eyepiece: WF10x/18mm● Achromatic objectives: 4x, 10x, 40xs, 100xs(oil)● Nosepiece: quadruple nosepiece● Condenser: abbe condenser NA1.25 with diaphragm filter● Focusing: coaxial coarse and fine adjustment, moving range 22mm● Stage: double layer mechanical stage 140x130mm● Illumination: LED illumination brightness adjustment● Product single size: 25x21.5x37cm
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-04A 40x-1600x Monocular Biological Microscope with 360° Rotatable Head and Bottom LED Illumination● Head: monocular head, inclined at 45°, 360° rotatable● Eyepiece: WF10x/16mm● Achromatic objectives: 10x, 40xs, 100xs(oil)● Nosepiece: quadruple nosepiece● Condenser: abbe condenser NA1.25 with diaphragm, filter● Focusing: coaxial coarse and fine adjustment, moving range 20mm● Stage: double layer mechanical stage 125x110mm● Illumination: bottom LED illumination● Product single size: 18.5x17x35cm Optional...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-04B 40x-1000x Black Monocular Biological Microscope● Head: monocular head, inclined at 45°, 360° rotatable● Eyepiece: WF10x/16mm● Achromatic objectives: - 4x/0.01, W.D=37.5mm - 10x/0.25, W.D=7.63mm - 40x/0.65(S), W.D=0.63mm - 100x/1.25(S, Oli)● Nosepiece: quadruple nosepiece● Condenser: Abbe NA1.25 with diaphragm● Focusing: coaxial coarse and fine adjustment, moving range 20mm● Stage: double layer mechanical stage 125x110mm● Transmitted Illumination:...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-190A 40X-400X Educational Monocular Brightfield Biological MicroscopeHead Monocular, 45° inclined; 360° rotating Eyepiece WF10x/18 mm, Tube inner diameter 23mm Achromatic Objectives 4x/0.10, WD= 10.6 mm10x/0.25, WD=7.0 mm40x/0.65, WD=0.5 mm Nosepiece Triple ball bearings revolving nosepiece Mechanical stage Fixed Anti-scratch painting stage, 120×110 mm, with sample clips Focusing Separate coarse and fine focusing mechanism with a limit stop to prevent the...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-200A 40X-1000X Monocular Biological Microscope with 45mm DIN achromatic objectiveNK-200A NK-200B NK-200C Head Monocular, 30° inclined, 360° rotatable Articulated free binocular, 30° inclined, 360° rotatable, interpupillary adjustment 55-75mm Articulated free trinocular, 30° inclined, 360° rotatable, interpupillary adjustment 55-75mm ● ๐ ๐ ๐ ● ๐ ๐ ๐ ● Eyepiece WF10x/18mm WF16x ● ๐ ● ๐ ● ๐ Objective...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-200B 40X-1000X Binocular Biological Microscope with 45mm DIN achromatic objectiveNK-200A NK-200B NK-200C Head Monocular; 30° inclined, 360° rotatable Binocular; 30° inclined, 360° rotatable TrInocular; 30° inclined, 360° rotatable ● ๐ ๐ ๐ ● ๐ ๐ ๐ ● Eyepiece WF10x/18mm ● ● ● Objective 45mm DIN achromatic objective 4X, 10X, 40X(S), 100X (S, Oil) ● ● ● Stage...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-200C 40X-1000X Trinocular Biological Microscope with 1x Camera AdapterNK-200A NK-200B NK-200C Head Monocular; 30° inclined, 360° rotatable Binocular; 30° inclined, 360° rotatable TrInocular; 30° inclined, 360° rotatable ● ๐ ๐ ๐ ● ๐ ๐ ๐ ● Eyepiece WF10x/18mm ● ● ● Objective 45mm DIN achromatic objective 4X, 10X, 40X(S), 100X (S, Oil) ● ● ● Stage...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-201E 40x-1000x Biological Microscope with Vertical Tube● Dual observation head: One tube 30° Inclined and another tube vertical, 360° rotatable ● Eyepiece: WF10X/18mm● Achromatic Objective: - 4x/0.1, W.D.=37.5mm- 10x/0.25, W.D.=7.316mm- 40x/0.65 (S), W.D.=0.632mm- 100x/1.25 (S,Oil), W.D.=0.198mm● Nosepiece: Backward quadruple nosepiece● Stage: double layers mechanical stage 130X130mm, moving range X-Y: 60X30mm● Condenser: ABBE N.A.1.25; Ф2-Ф30mm Iris Diaphragm...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-202A 40X-1600X Monocular Biological Microscope● Head: Monocular head, inclined 45°, rotatable 360°, Interpupillary distance 48mm-75mm● Eyepiece: WF10x/18mm● Objective: Achromatic Objectives 4x 10x 40Xs 100Xs (oil)● Nosepiece: Quadruple● Stage: Double layer mechanical stage 115x125mm, XY moving range 60X30mm● Condenser: Abbe N.A. 1.25 with iris diaphragm● Focusing: Coaxial coarse and fine adjustment, moving range 20mm, fine...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-202B 40X-1600X Binocular Biological Microscope● Head: Seidentopf Binocular head, inclined 45°, rotatable 360°, Interpupillary distance 48mm-75mm● Eyepiece: WF10x/18mm● Objective: Achromatic Objectives 4x 10x 40Xs 100Xs (oil)● Nosepiece: Quadruple● Stage: Double layer mechanical stage 115x125mm, XY moving range 60X30mm● Condenser: Abbe N.A. 1.25 with iris diaphragm● Focusing: Coaxial coarse and fine adjustment, moving range 20mm,...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
-
NK-202C 40X-1600X Trinocular Biological Microscope● Head: Seidentopf trinocular head, inclined 45°, rotatable 360°, Interpupillary distance 48mm-75mm● Eyepiece: WF10x/18mm● Objective: Achromatic Objectives 4x 10x 40Xs 100Xs (oil)● Nosepiece: Quadruple● Stage: Double layer mechanical stage 115x125mm, XY moving range 60X30mm● Condenser: Abbe N.A. 1.25 with iris diaphragm● Focusing: Coaxial coarse and fine adjustment, moving range 20mm,...
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Upright Biological Microscope
An upright biological microscope is a type of microscope used to observe and study biological specimens such as cells, tissues, and microorganisms. It is called "upright" because the light source and eyepiece are positioned vertically above the stage, rather than in a slanted position as in a compound microscope. An upright microscope is typically used in research and educational settings to examine slides of biological specimens, and can be equipped with features such as multiple magnifications, phase contrast, and fluorescence capabilities.
