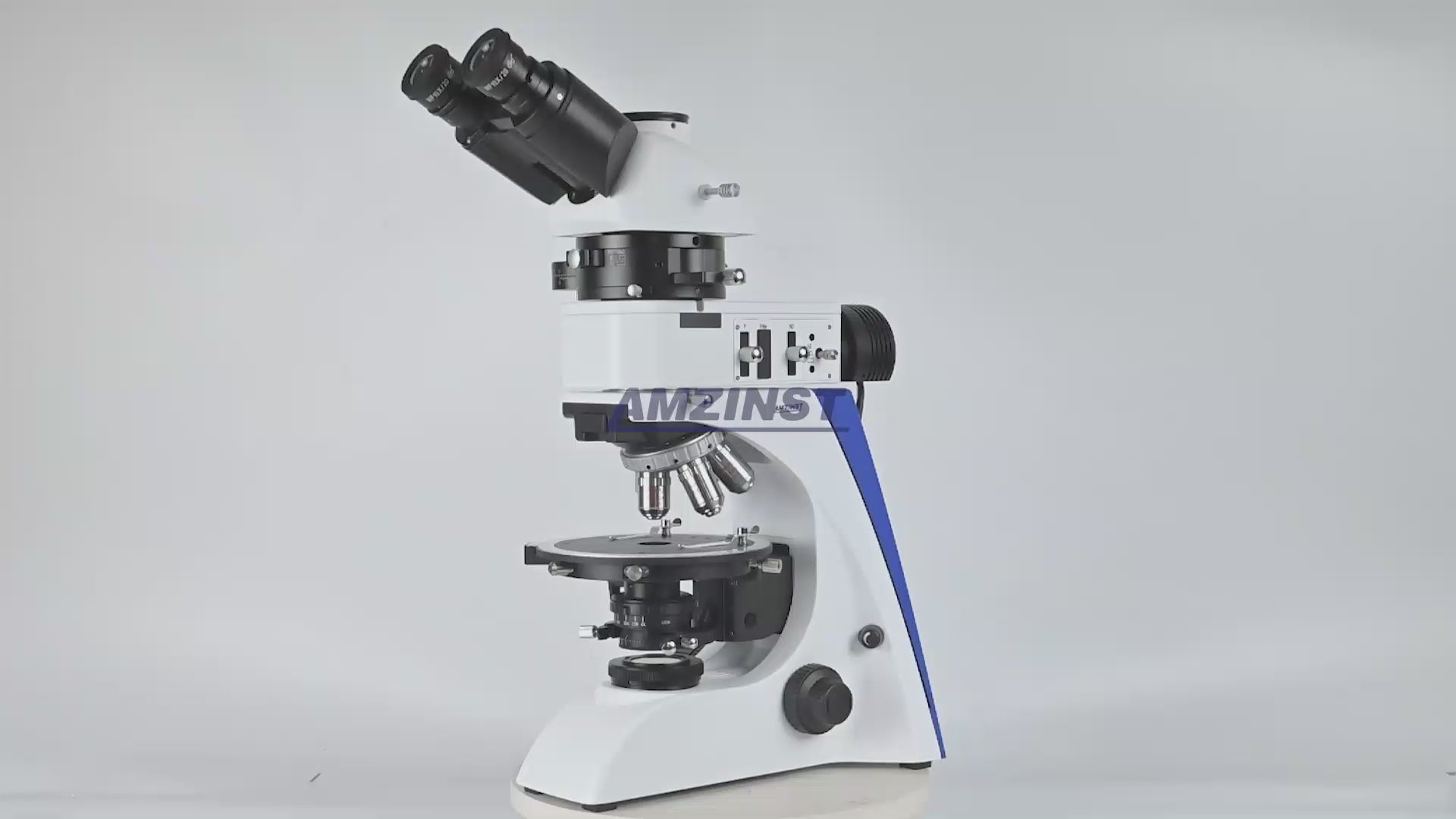

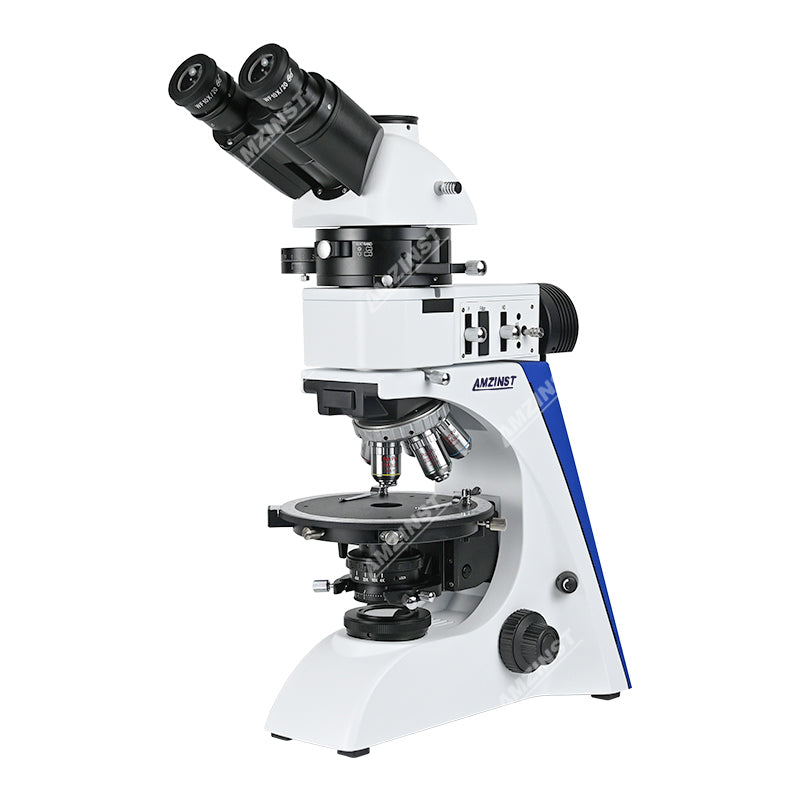

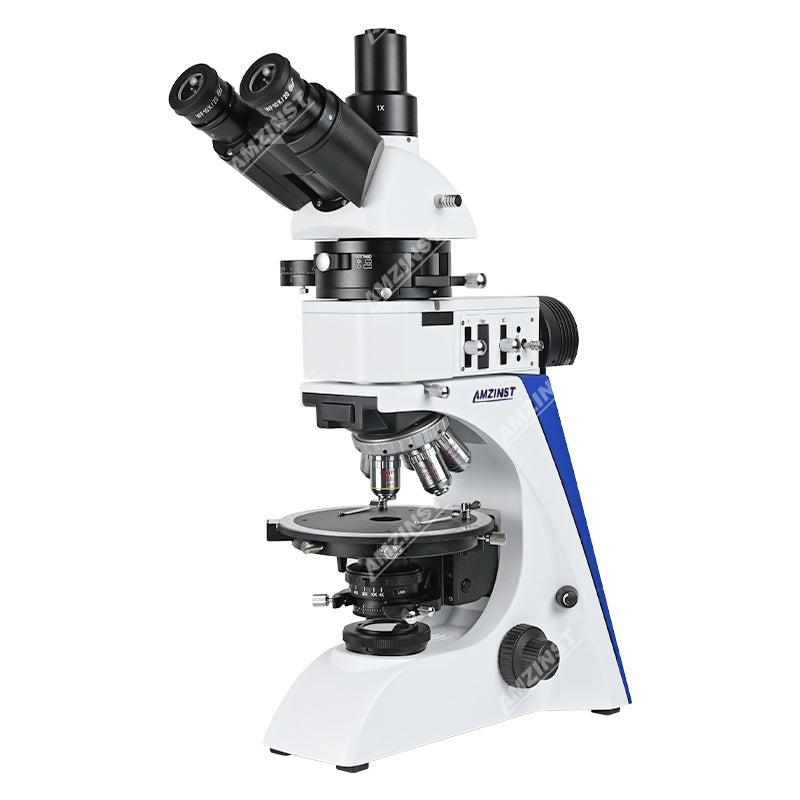

APM-30TRF Trinocular Polarizing Microscope With Transmitting & Reflecting Illumination
APM-30TRF Trinocular Polarizing Microscope With Transmitting & Reflecting Illumination
APM-30TRF Trinocular Polarizing Microscope With Transmitting & Reflecting Illumination
APM-30TRF Trinocular Polarizing Microscope With Transmitting & Reflecting Illumination
APM-30TRF Trinocular Polarizing Microscope With Transmitting & Reflecting Illumination
APM-30TRF Trinocular Polarizing Microscope With Transmitting & Reflecting Illumination

APM-30TRF Trinocular Polarizing Microscope With Transmitting & Reflecting Illumination

SKU: APM-30TRF
Vendor: AMZ Instruments
Product Type: Polarizing Microscope
$0.00
$0.00
Subtotal:
$0.00

Top Optics Manufacturer & Exporter

Learn More.

Ningbo AMZ Instruments Co., ltd.

As a top optics product manufacturer, AMZ INSTRUMENTS provides a broad range of cutting-edge professional optics and accessories to large distributors around the global.

Through our China network of manufacturing facilities we are able to manufacture superior instruments and optical components to our specifications at reasonable prices. To ensure the best in quality and performance we visit, inspect and audit each of our manufacturing partners on a regular basis.

Our products are available exclusively through a nationwide network of authorized distributors and are backed by our industry leading 2-year limited warranty.

Global Shipping

1. Courier shipping by FedEx, UPS, DHL, Estimated to be delivered Around 5-7days.

2. Air shipping, Estimated to be delivered Around 5-7days.

3. Sea shipping, Estimated to be delivered Around 25-40days.

Shipping Information

We can ship to virtually any address in the world. please email us at info@amz-instruments.com or call +86 15990266988 to get a quote that includes shipment fees.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Shipment fees are calculated based on the destination, size and weight of your item(s) and include insurance of the goods shipped. Our standard shipment method is Fed Ex, UPS. If you have your own UPS or Fed Ex, DHL account #, we are happy to ship on your account. Please emial or call us to place your order and provide us your account information.

 Why Choose Us?

AMZINST manufactures optics products and related accessories, which have been consistently distributed and trusted by worldwide companies.

China-owned and operated facilities provide the management, quality control, design, marketing and customer service that make AMZINST® a market leader. In our China warehouse, each product is unpacked, assembled and individually tested and inspected by our team of technicians to ensure compliance with the strict quality standards. Join our network of distributors for a mutually beneficial partnership.

Product Description

Standard Configuration:

SKU Tube  Objective Illumination
APM-30T Trinocular Non-stress Infinity Plan Objective PLAN 4x, 10x, 20x, 40x Transmitting 6V/30W Halogen lamp
APM-30TL Trinocular Non-stress Infinity Plan Objective PLAN 4x, 10x, 20x, 40x

Transmitting 5W LED lamp
APM-30TR Trinocular Non-stress LWD Infinity Plan Objective LMPlan FL 5x, 10x, 20x, 50x Reflecting 12V/50W Halogen lamp
APM-30TRL Trinocular Non-stress LWD Infinity Plan Objective LMPlan FL 5x, 10x, 20x, 50x Reflecting 5W LED lamp
APM-30TRF Trinocular

Non-stress Infinity Plan Objective PLAN 4x, 10x, 20x, 40x

Non-stress LWD Infinity Plan Objective LMPlan FL 50x

 Transmitting 6V/30W Halogen lamp, Reflecting 12V/50W halogen lamp
APM-30TRFL Trinocular

Non-stress Infinity Plan Objective PLAN 4x, 10x, 20x, 40x

Non-stress LWD Infinity Plan Objective LMPlan FL 50x

 Transmitting & Reflecting 5W LED lamp





Specification:

 Item Specification APM-30T APM-30TL APM-30TR APM-30TRL APM-30TRF APM-30TRFL
Eyepiece

WF10X/22mm (adjustable)

WF10X/22mm (adjustable， reticle 0.1mm)

WF10X/20mm (adjustable)

WF10X/20mm (adjustable, reticle 0.1mm)

WF10x/20mm (adjustable) with grid

WF10x/20mm (adjustable) with crosshairs

WF10x/20mm (adjustable) with pointer

●

●

໐

໐

໐

໐

໐

●

●

໐

໐

໐

໐

໐

໐

໐

●

●

໐

໐

໐

໐

໐

●

●

໐

໐

໐

໐

໐

●

●

໐

໐

໐

໐

໐

●

●

໐

໐

໐
Seidentopf Binocular Head

Inclined 30°, rotatable 360°,
Interpupillary distance:  48mm-76mm

 ໐ ໐ ໐ ໐ ໐ ໐

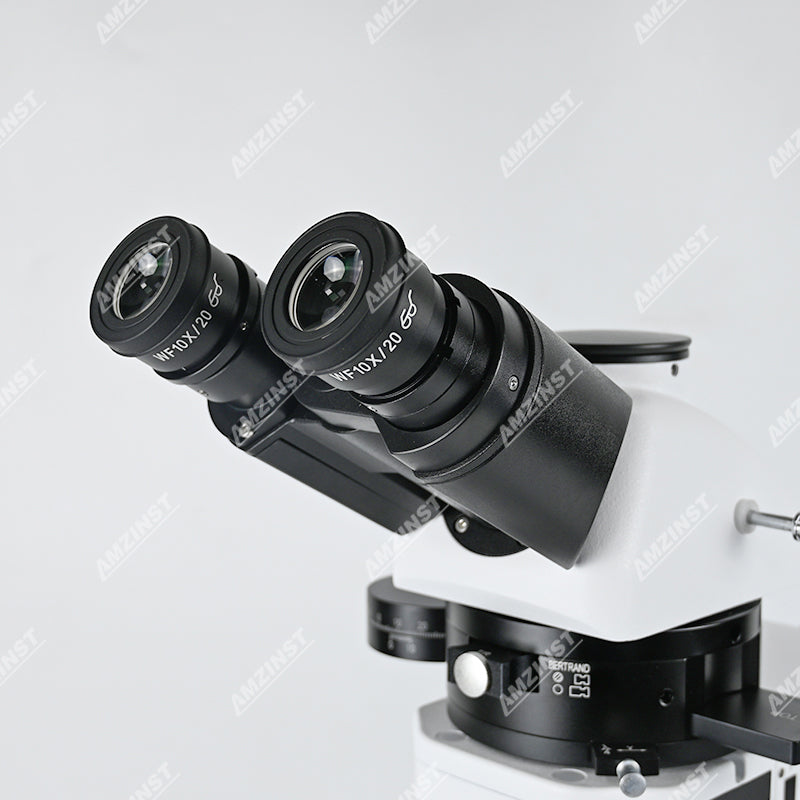

Seidentopf Trinocular Head

Inclined 30°, Rotatable 360°,
Interpupillary Distance: 48mm-76mm, Light distribution(both) 100: 0 (100% for eyepiece) 80:20 (80% for trinocular head and 20% for eyepiece)

 ● ● ● ● ● ●

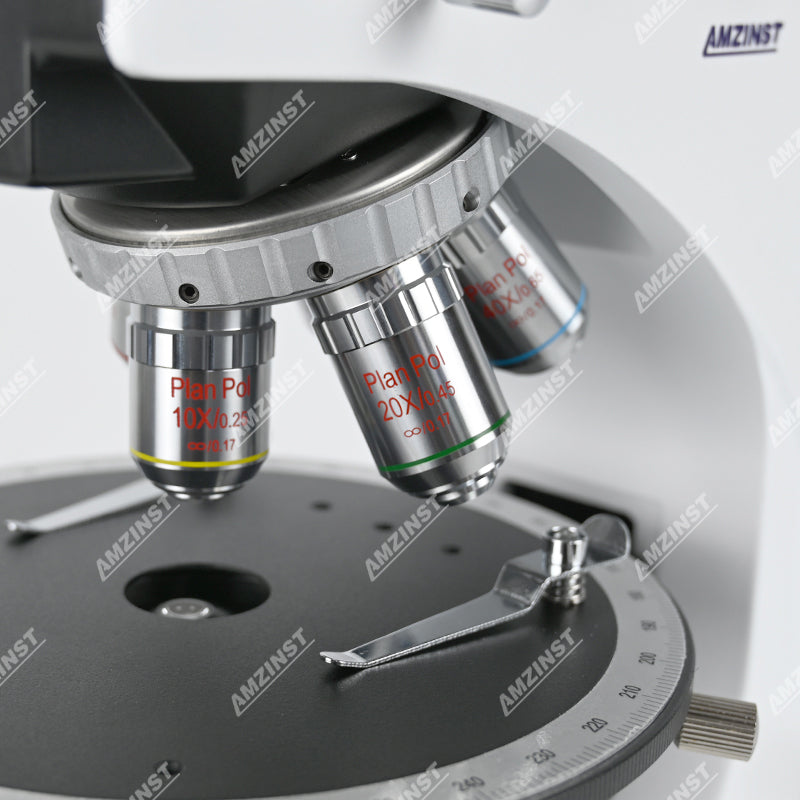

Non-stress Infinity Plan Objective(Transmitting)

PLAN 4X/0.11   W.D.= 12.1mm

PLAN 10X/0.25   W.D.= 4.64mm

PLAN 20X/0.40(S)   W.D.=2.41mm

PLAN 40X/0.66(S)   W.D.=0.65mm

PLAN 60X/0.80(S)   W.D.=0.33mm

PLAN 100X/1.25(S, Oil)  W.D.=0.12mm

●

●

●

●

໐

໐

●

●

●

●

໐

໐

/

/

/

/

/

/

/

/

/

/

/

/

●

●

●

●

໐

໐

●

●

●

●

໐

໐
Non-stress LWD InfinityPlan Objective(Reflecting)

LMPlan FL 5×/0.15 W.D=21.00mm

LMPlan FL 10×/0.30 W.D.= 20.00mm

LMPlan FL 20×/0.40 W.D.= 15.00mm

LMPlan FL 50×/0.55 W.D.= 10.00mm

LMPlan 100×/0.85(Dry) W.D.= 3.00mm

/

/

/

/

/

/

/

/

/

/

●

●

●

●

໐

●

●

●

●

໐

໐

໐

໐

●

໐

໐

໐

໐

●

໐

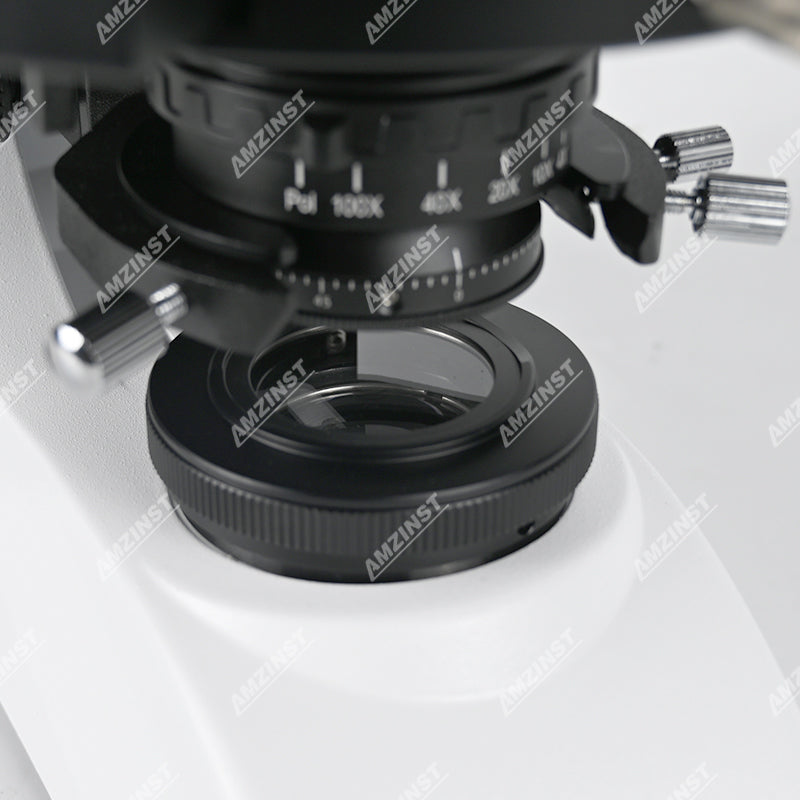

Nosepiece

Quintuple (center adjustable)

 ● ● ● ● ● ●

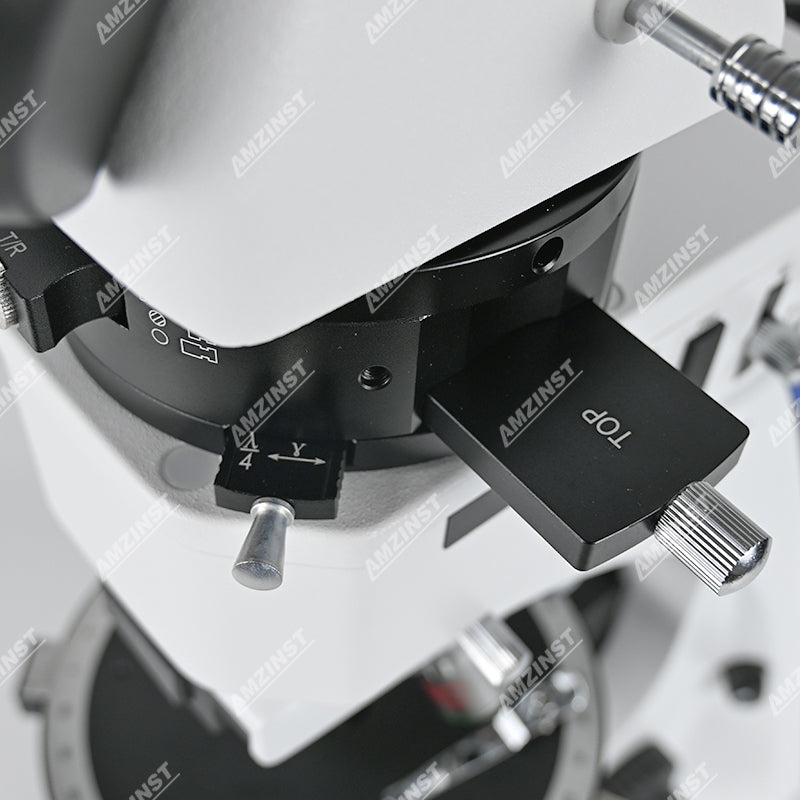

POL Media

Analyzer rotatable 360°, module type, can be locked

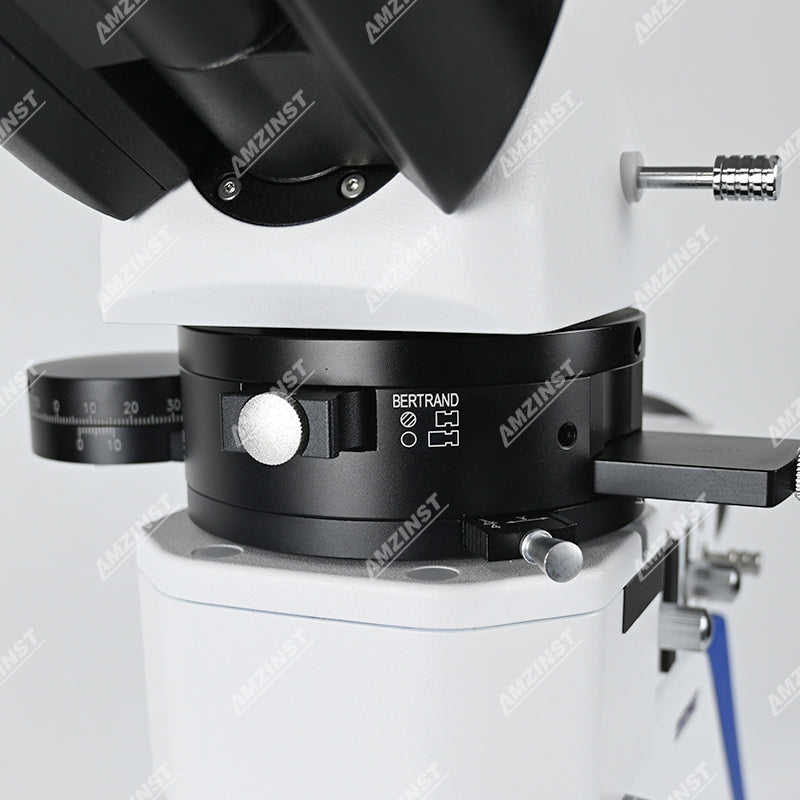

Bertrand lens, Built-In, focus adjustable

●

●

●

●

●

●

●

●

●

●

●

●
Slip

λslip(First Class Red)

λ/4 slip

Quartz wedge(Ⅰ～ Ⅳ)

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

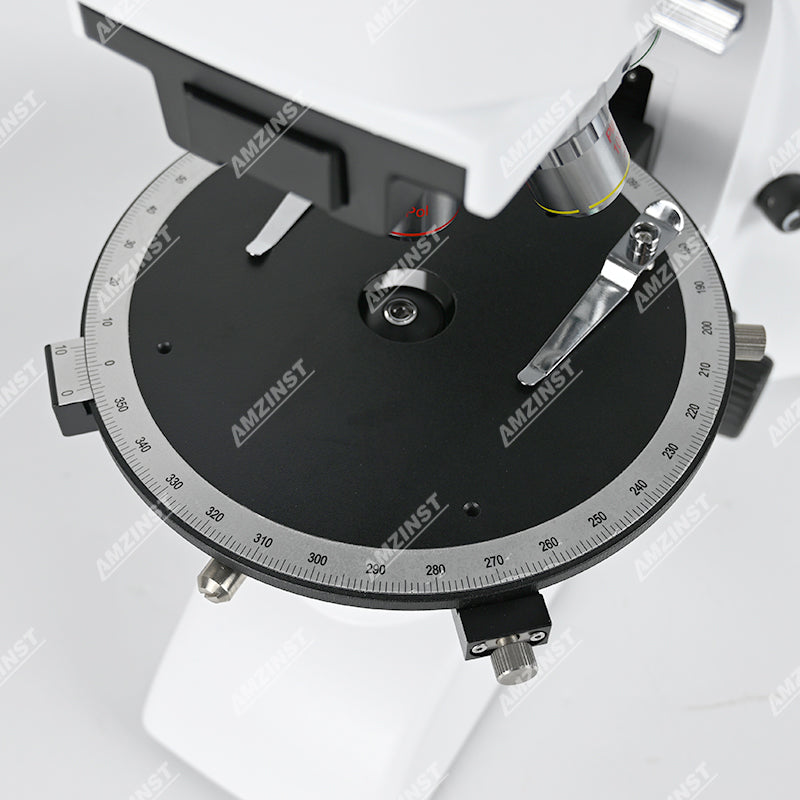

Revolving Round Stage

Rotatable 360°, center adjustable, can be locked.division 1°, vernier division 6’. Diameter Φ174mm

 ● ● ● ● ● ●

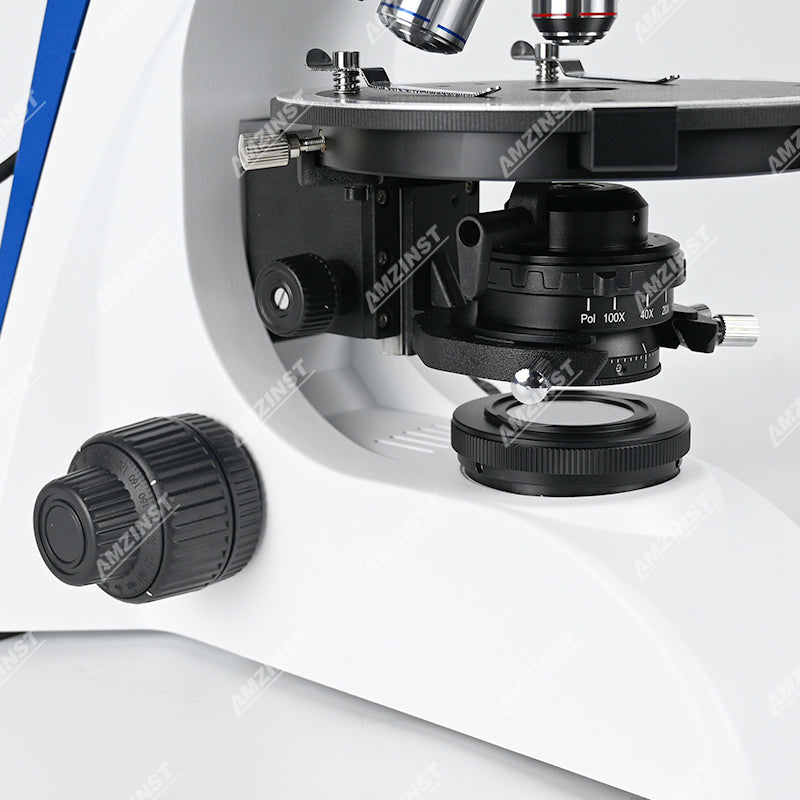

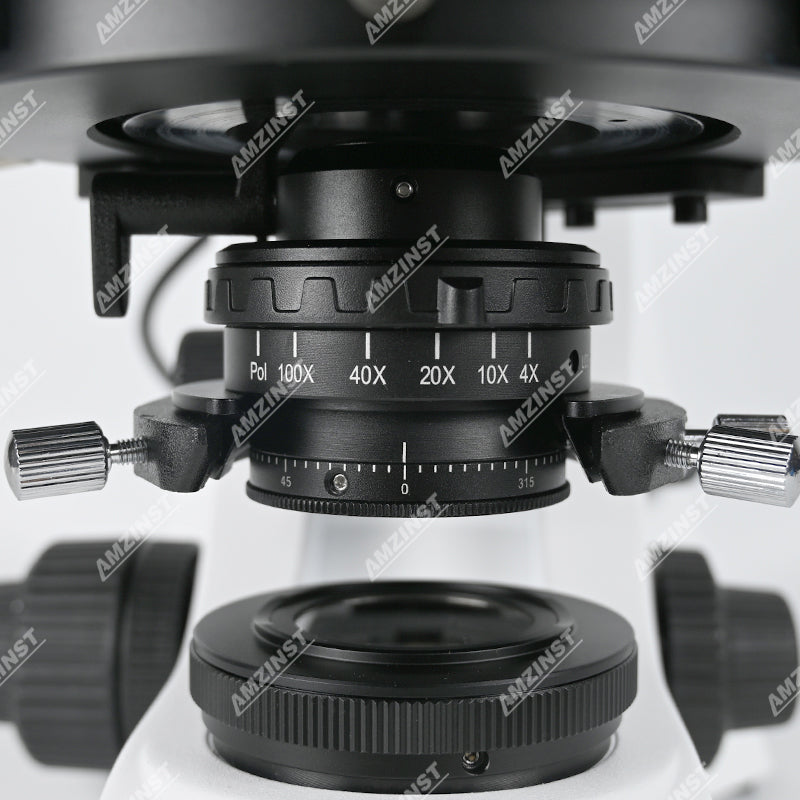

Swing-out Condenser

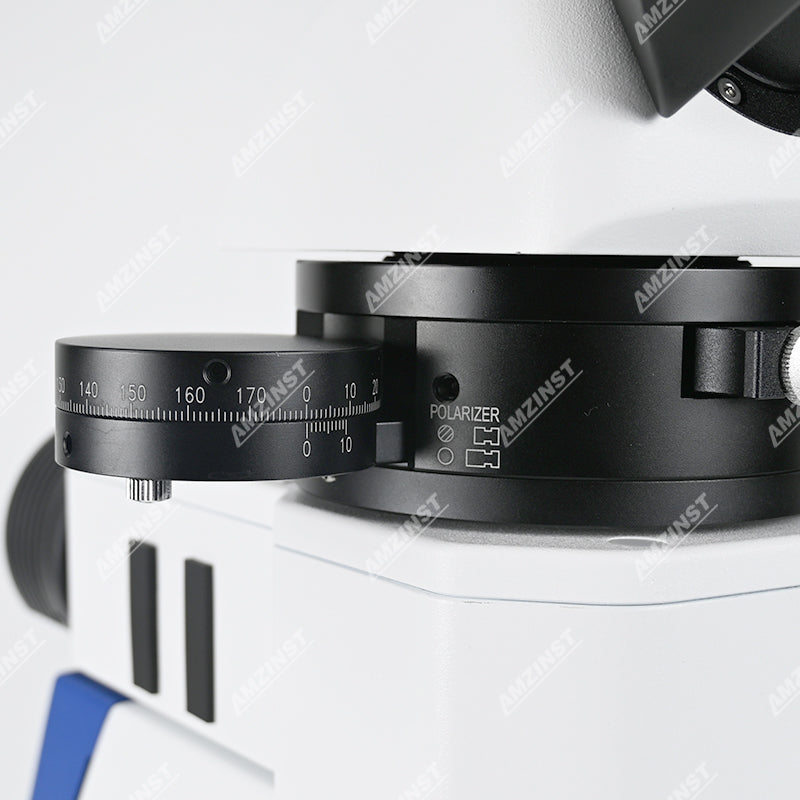

N.A.0.9/0.13, polarizing unit ( with scale, rotatable 360°, can be locked)

 ● ●  / / ● ●
Focusing Unit

Coaxial Coarse and Fine Focusing, coarse stroke 25mm, Fine stroke per rotation: 0.2mm, fine division 2 μm

 ● ● ● ● ● ●
Transmitting Illumination

6V/30W Halogen lamp, Input voltage:100V-240V 50/60Hz

●

/

/

/

●

/

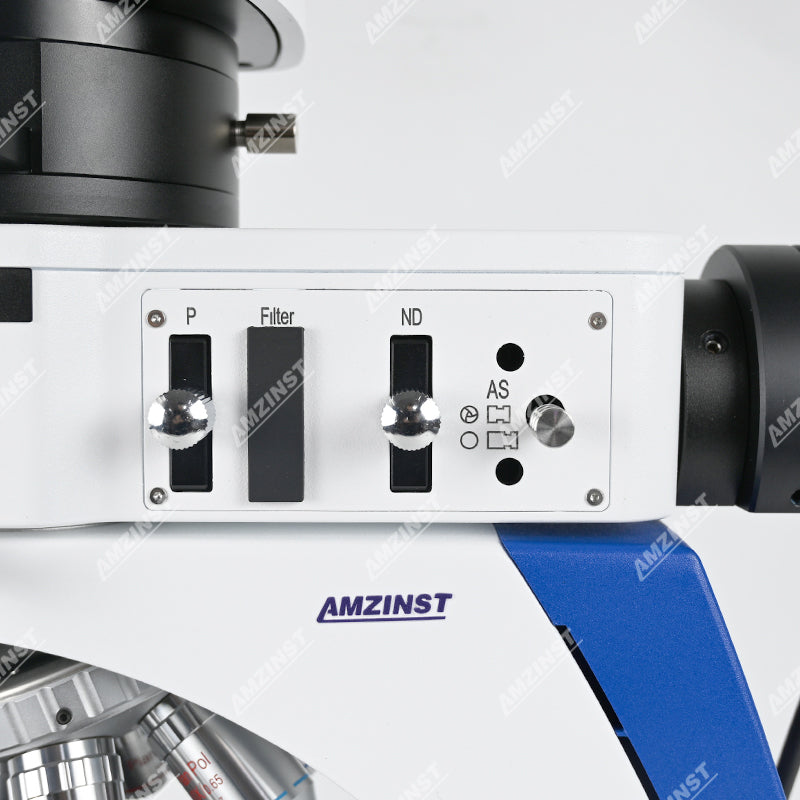

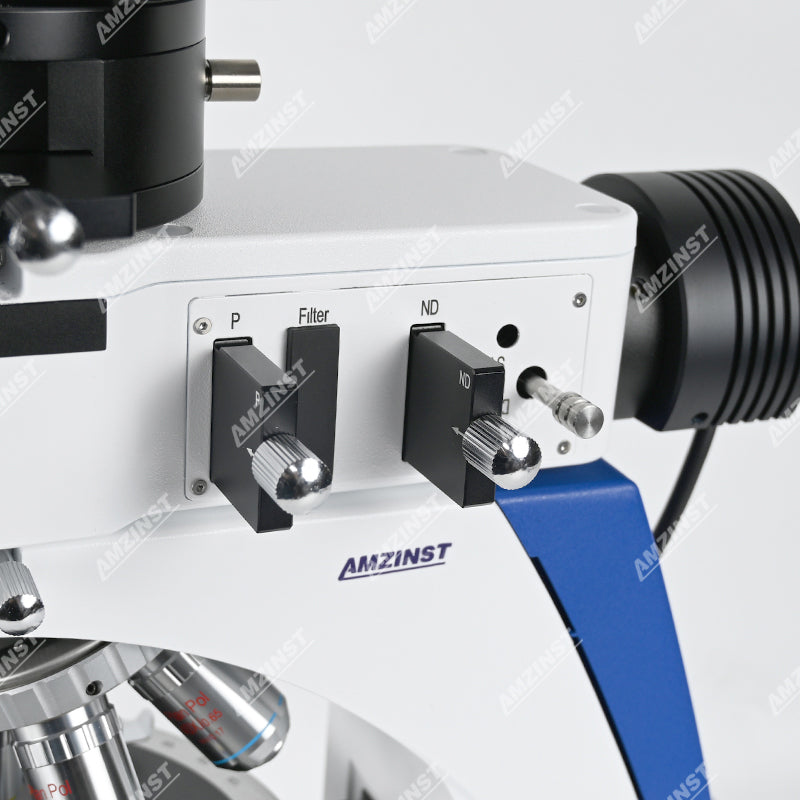

Reflecting Illumination

12V/50W halogen lamp, Input voltage:100V-240V 50/60Hz, with field diaphragm, aperture diaphragm, polarizer,

 / / ● / ● /

Transmitting Illumination

5WLED lamp, Input voltage:100V-240V 50/60Hz

 / ● / / / ●

Reflecting Illumination

5WLED lamp Input voltage, 100V-240V 50/60Hz

 / / ໐ ● / ●
Filter

Blue

Amber

Green

Neutral

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐
Attached Polarizing Mechanical Stage



 ໐ ໐ ໐ ໐ ໐ ໐
C-Mount

1X (Focus adjustable)

0.75X (Focus adjustable)

0.5 X (Focus adjustable)

0.35 X (Focus adjustable)

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐

Note: ''●'' Standard outfit     ''໐'' optional outfit
