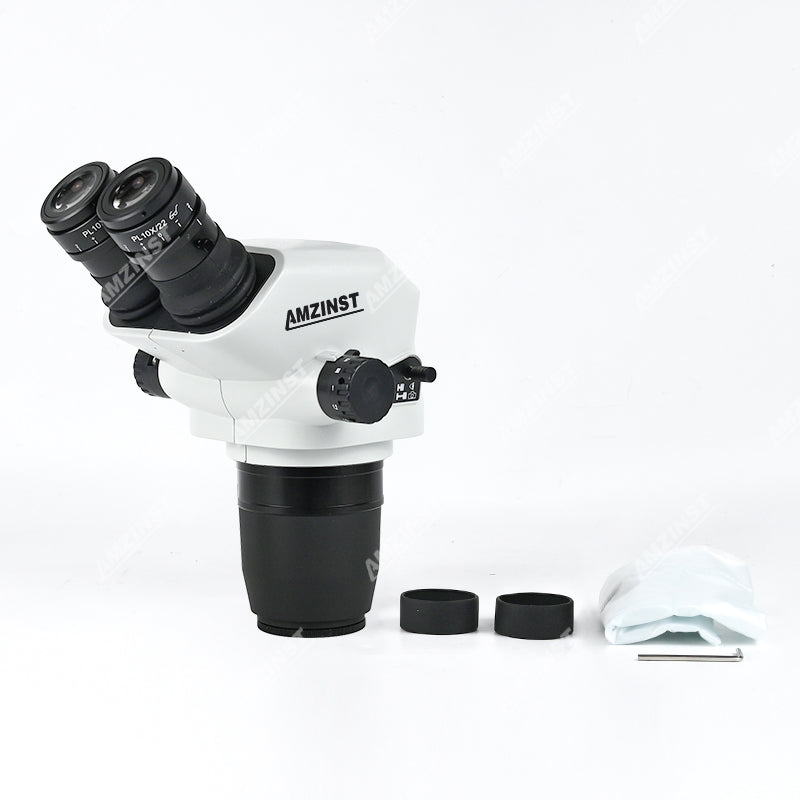

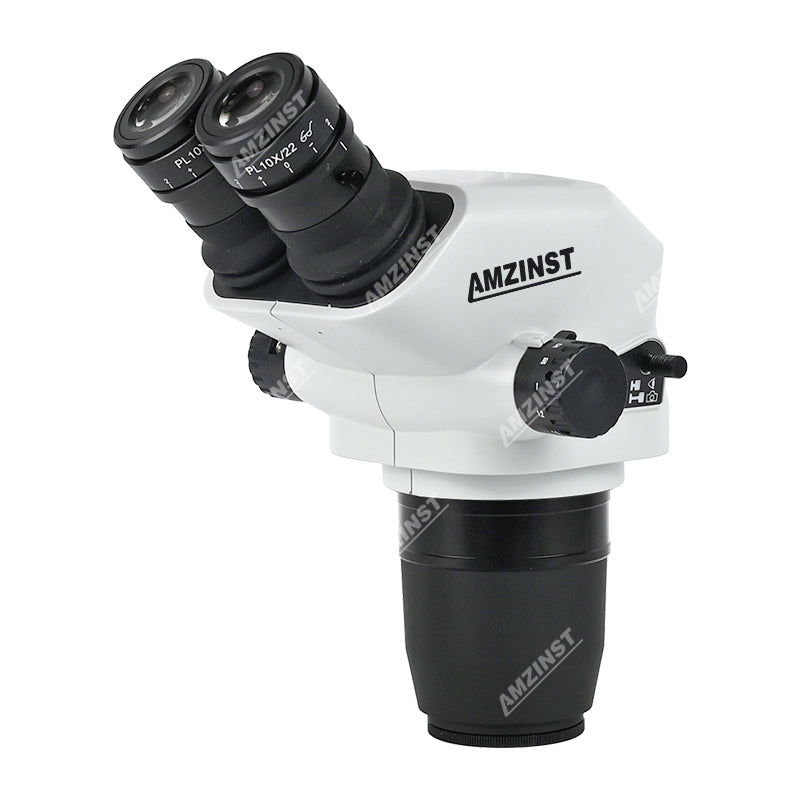

ZM-6745BX 6.7X-45X Greenough optical Binocular Stereo Zoom Microscope Head
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Product Description
Adopting the Greenough optical system, ZM-6745BX with a compact structure is sleek and sporty. The newly designed optical path and click stop function makes it more precision and practical for the inspection of electronic components and PC boards in the industrial field, It is also available for scientific research, education antique identification, etc.

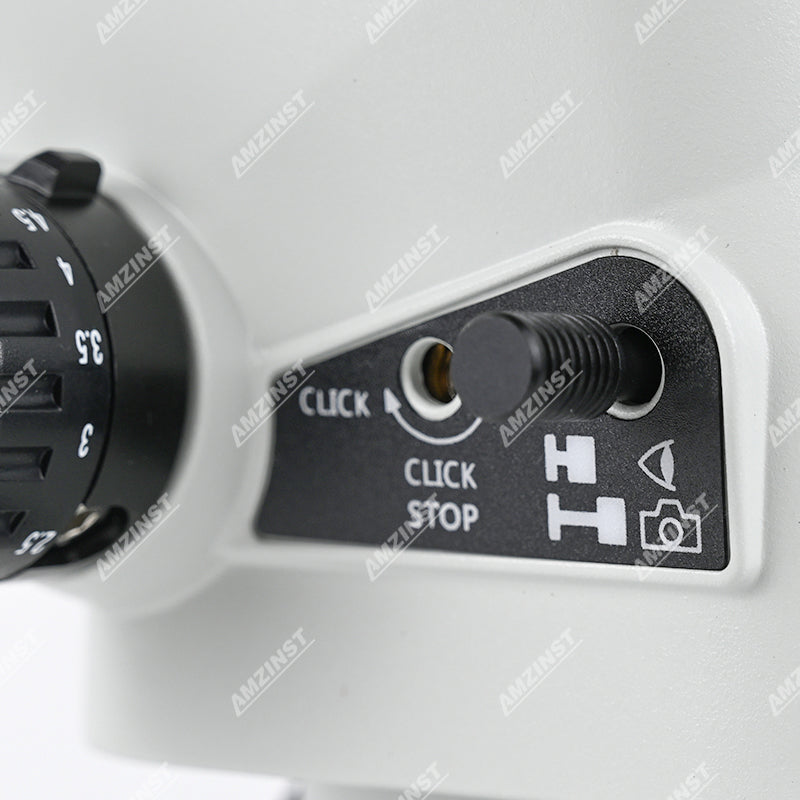

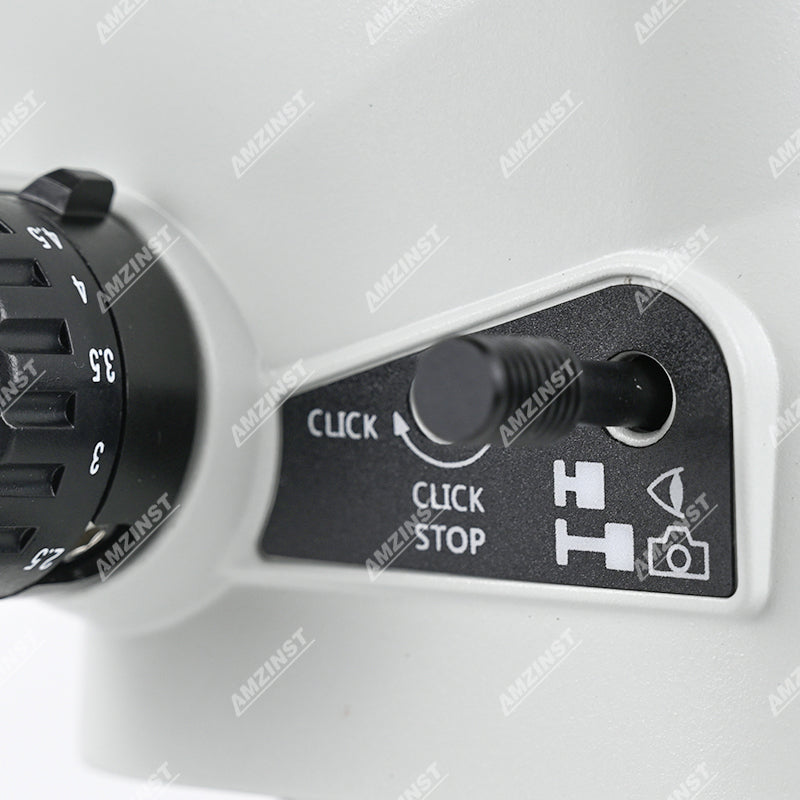

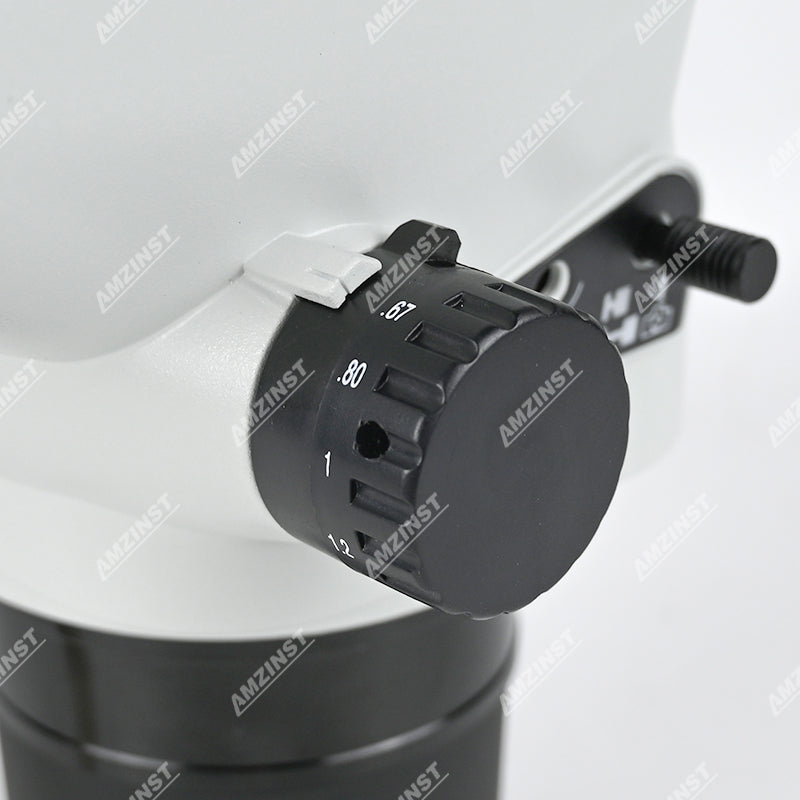

Zoom hand wheel with click stop as a critical improvement ensures accurate amplification, and is very useful for sample dimension confirmation.
Greenough optical system with a convergence angle of 10 degrees, and working with wide field plan eyepieces, ensures excellent flatness and depth of field.
Specification:
● Optical system: Greenough.
● Head: 45° inclined binocular head with fixed eyepiece tube, Interpupillary distance adjustment: 52mm - 76mm, diopter adjustment +/- 5, with click stop and interlock mechanism

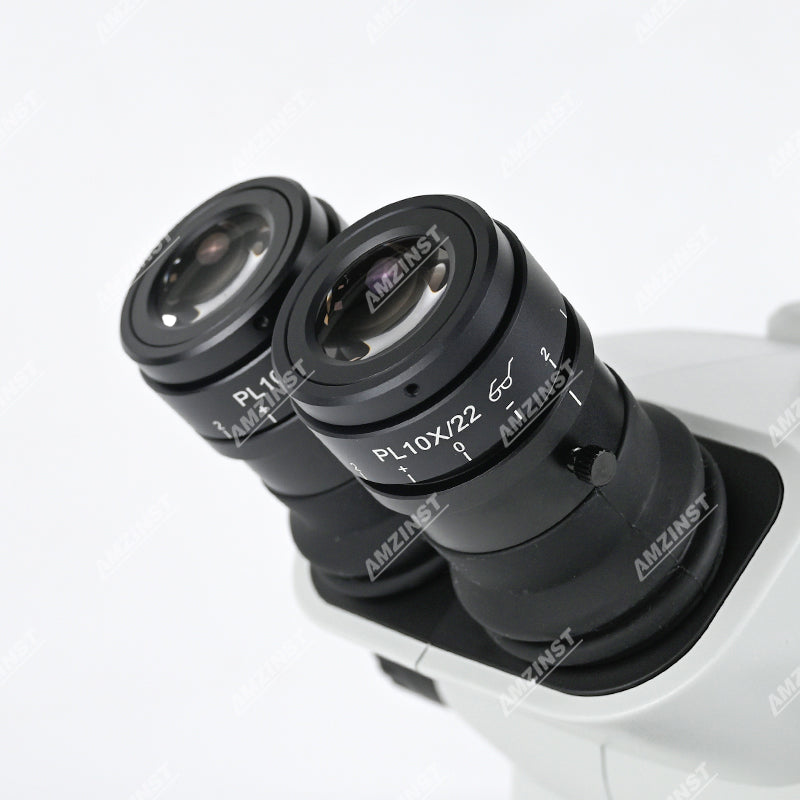

● High eye-point wide field plan eyepiece PL10X/22mm, with adjustable diopter
● Zoom objective: 0.67X - 4.5X
● Working distance: 110mm
● Head mounting size: 76mm in diameter
● Dust cover: Yes (Included)
Optional Accessories:
- High eye-point wide field plan eyepiece PL10X/22mm, with adjustable diopter (SKU: ZX6745-10EX)
- High eye-point wide field plan eyepiece PL15X/16mm, with adjustable diopter (SKU: ZX6745-15EX)
- High eye-point wide field plan eyepiece PL20X/12.5mm, with adjustable diopter (SKU: ZX6745-20EX)
- Auxiliary Objective 0.3X, W.D= 287mm, (SKU: AX6745-03X)
- Auxiliary Objective 0.5X, W.D= 177mm, (SKU: AX6745-05X)
- Auxiliary Objective 0.7X, W.D= 120mm (SKU: AX6745-07X)
- Auxiliary Objective 1.5X, W.D= 47mm (SKU: AX6745-15X)
- Auxiliary Objective 2X, W.D= 26mm (SKU: AX6745-20X)
