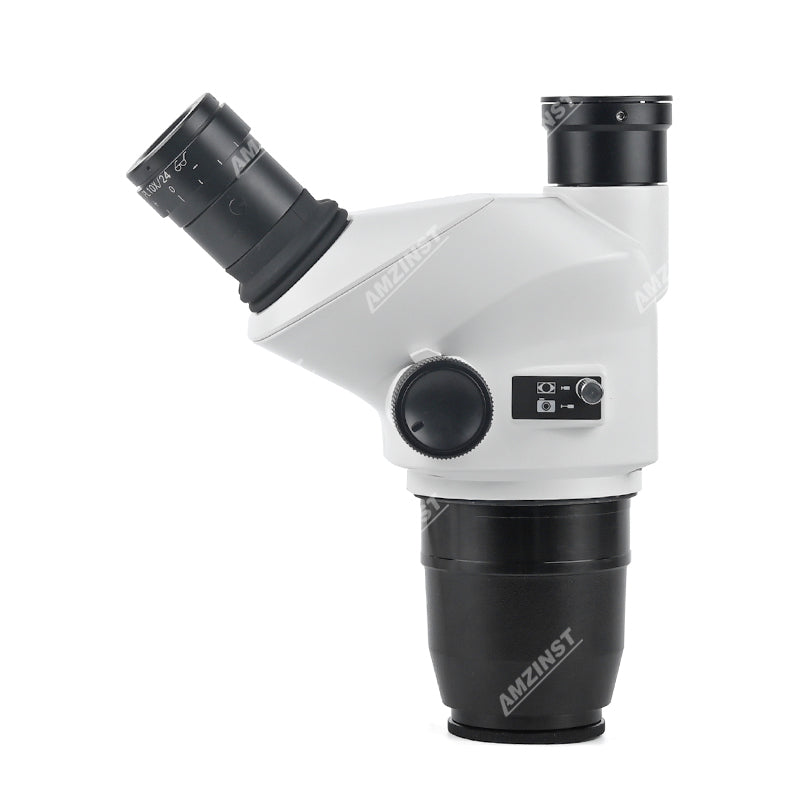

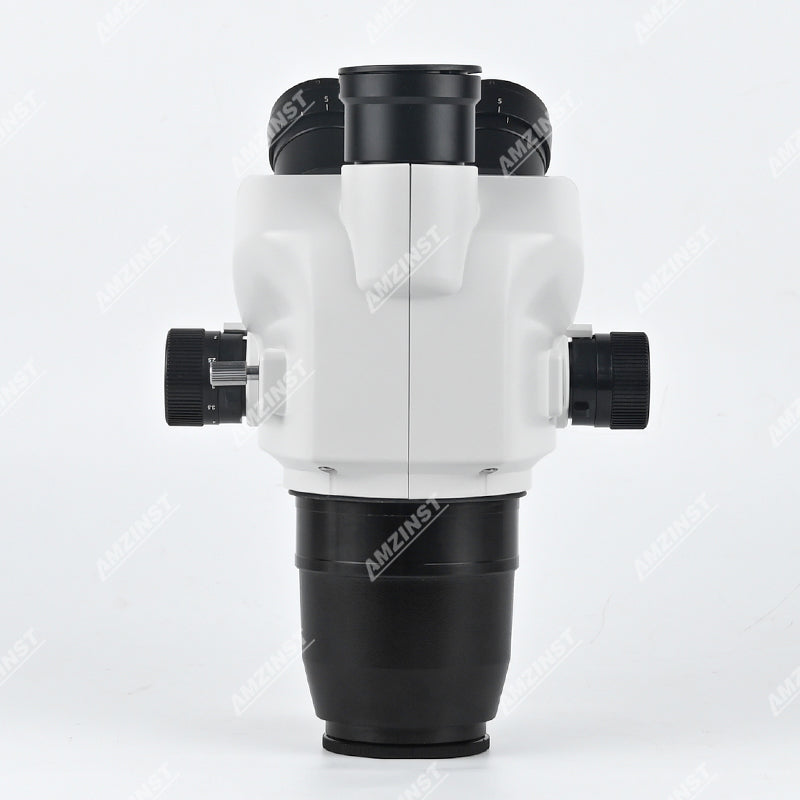

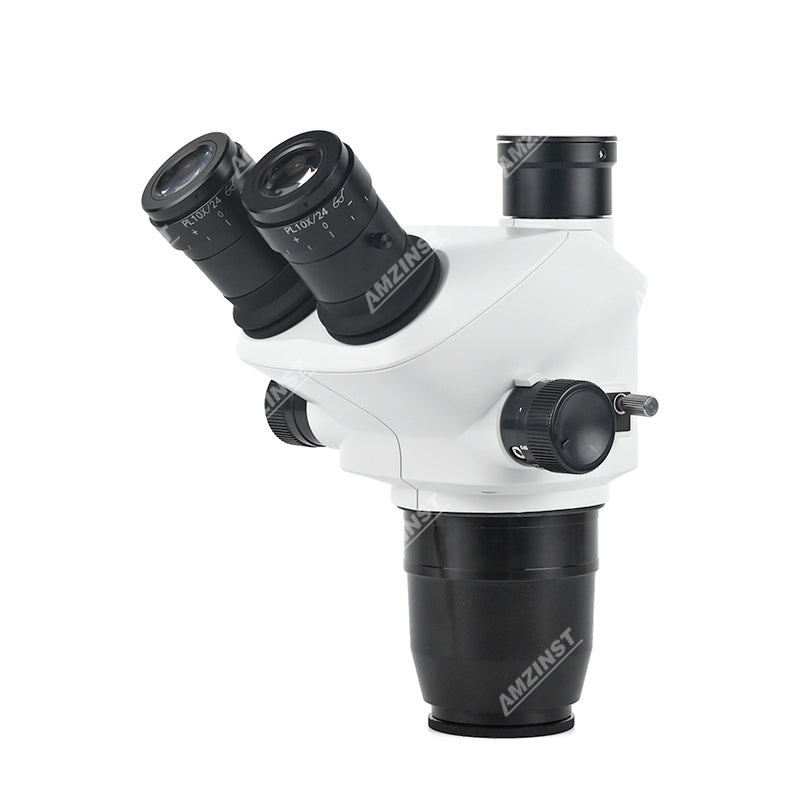

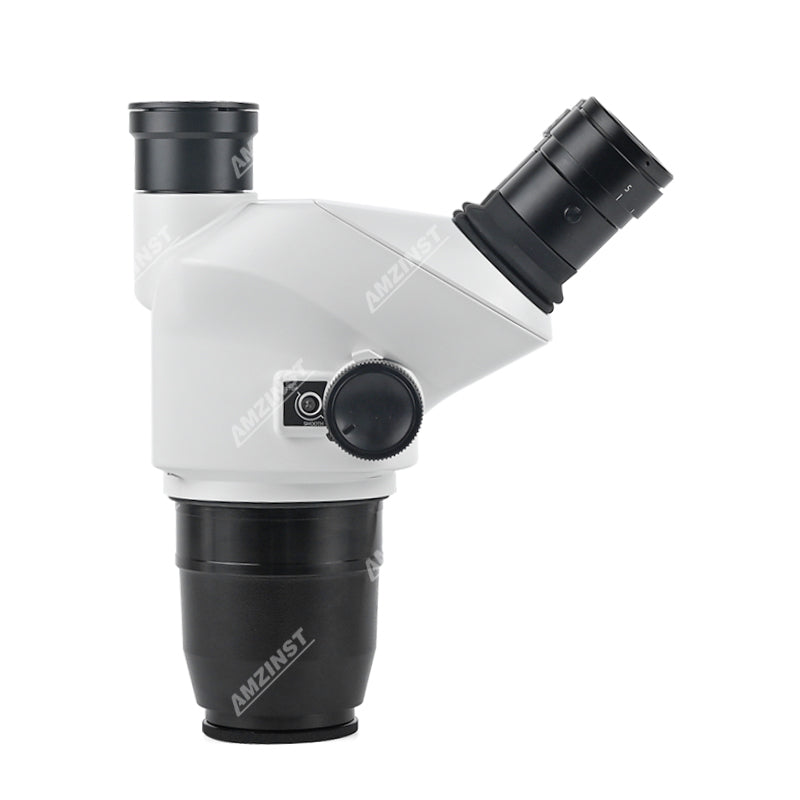

ZM-6552TH Greenough Zoom 0.65X-5.2X Trinocular Stereo Microscope Body With Light Split Optional
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Product Description
Specification:
● Optical system: Greenough.
● Head: 45°inclined trinocular head with fixed eyepiece tube,
● Interpupillary distance adjustment: 55mm - 75mm,
● Diopter adjustment +/- 5,

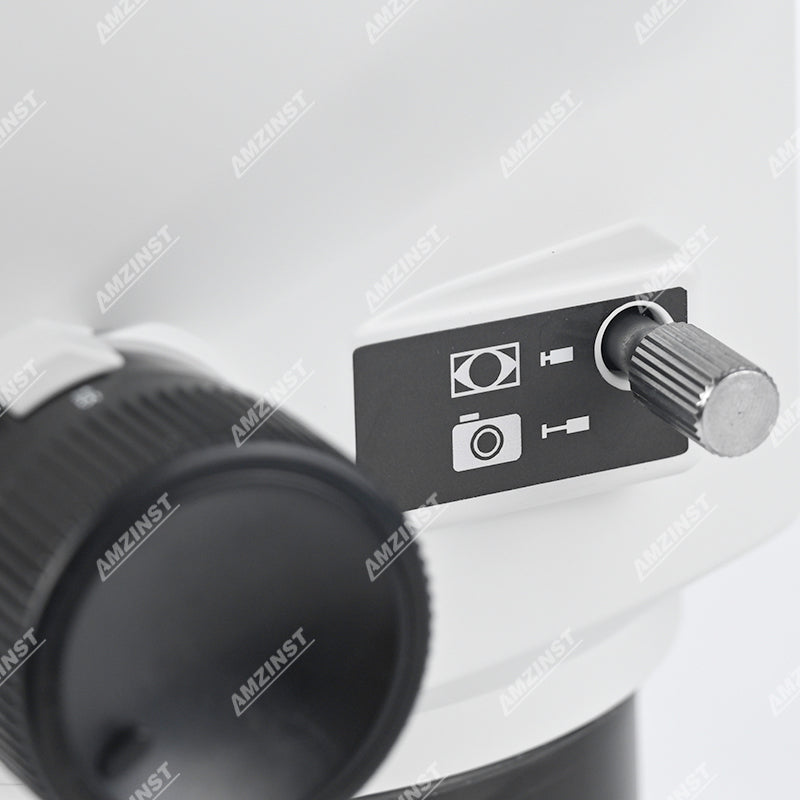

● Light split 0:100 (with lever)

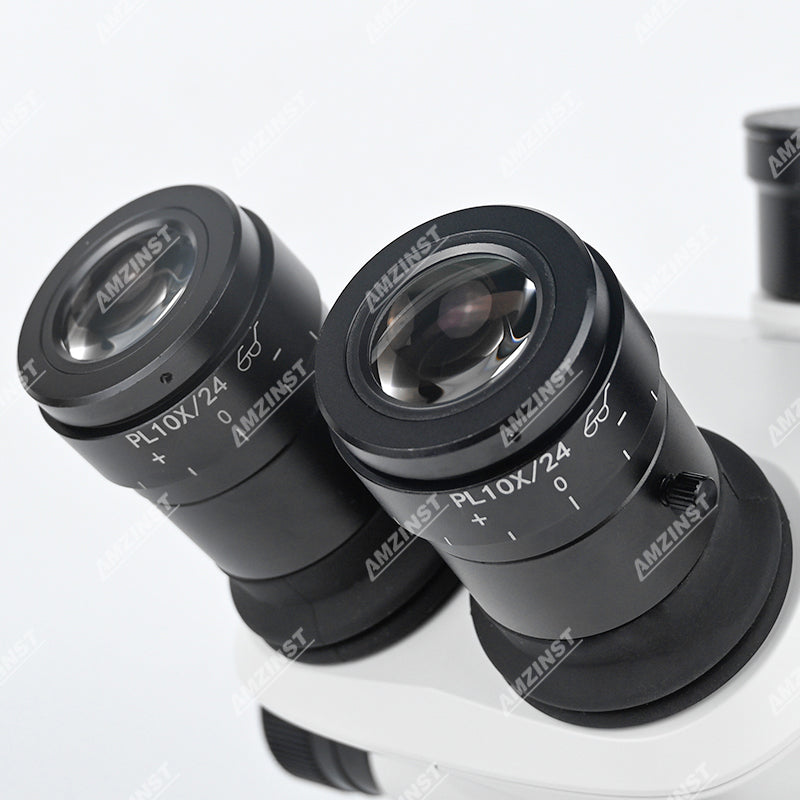

● High eye-point wide field plan eyepiece: PL10X/24mm, with adjustable diopter

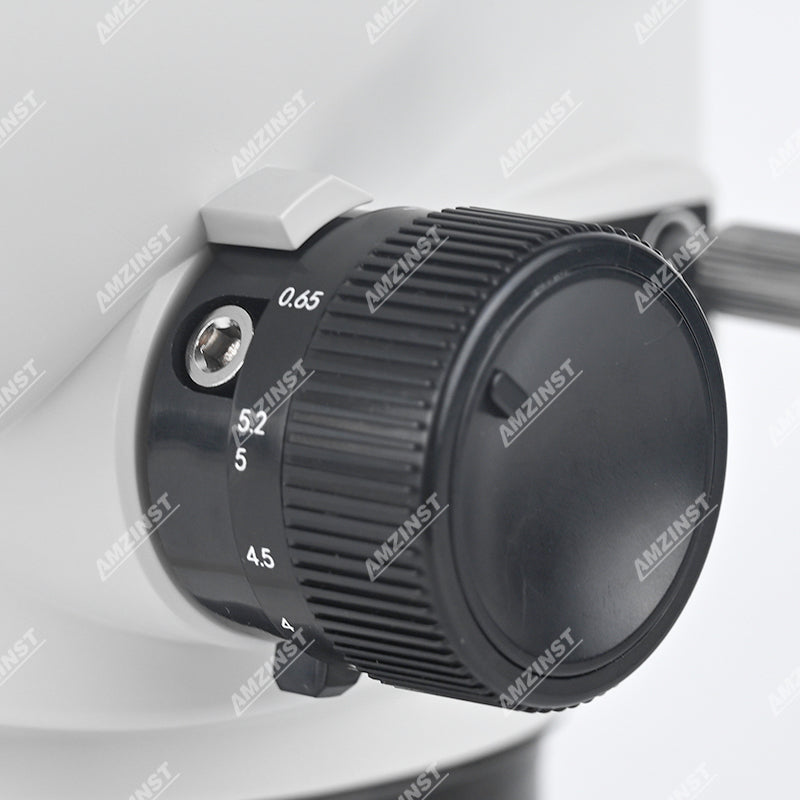

● Zoom objective: 0.65X - 5.2X
● Zoom Ratio:1:8
● Working distance: 111mm
● Head mounting size: 76mm in diameter
● Dust cover: Yes (Included)

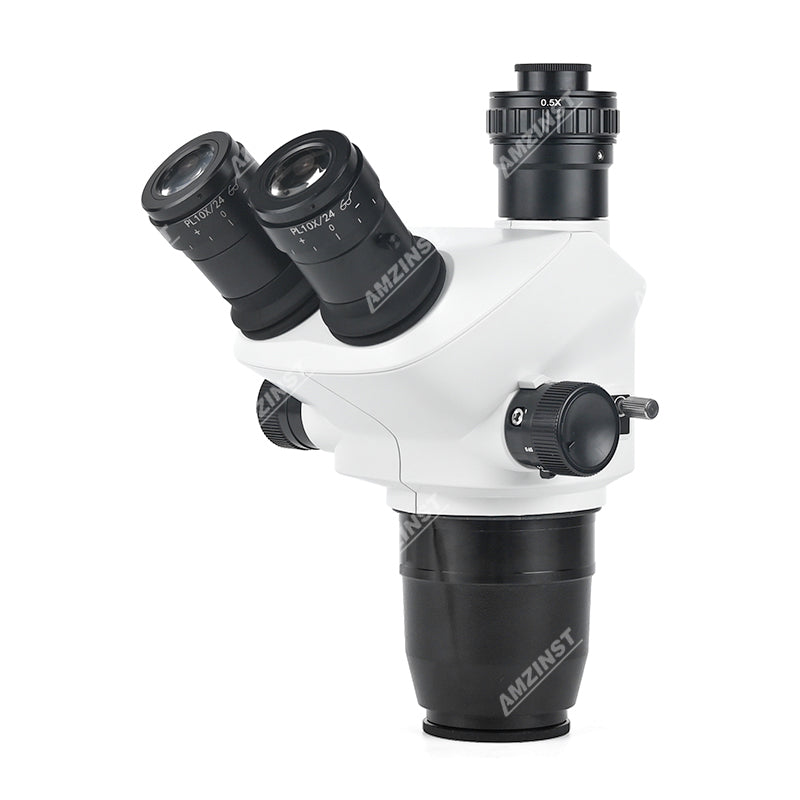

● C-Mount adapter: 0.5X
Optional Accessories:
- Head: 45° inclined trinocular head with fixed eyepiece tube, Interpupillary distance adjustment: 52mm - 76mm, diopter adjustment +/- 5, light split 20:80, (SKU: ZM-6552TX2)
- High eye-point wide field plan eyepiece PL10X/24mm, with adjustable diopter (SKU: ZM6552-10EX)
- High eye-point wide field plan eyepiece PL15X, with adjustable diopter (SKU: ZM6552-15EX)
- High eye-point wide field plan eyepiece PL16X, with adjustable diopter (SKU: ZM6552-6EX)
- High eye-point wide field plan eyepiece PL20X, with adjustable diopter (SKU: ZM6552-20EX )
- High eye-point wide field plan eyepiece PL25X, with adjustable diopter (SKU: ZM6552-25EX )
- Auxiliary Objective 0.3X, (SKU: AU6552-03X)
- Auxiliary Objective 0.5X, (SKU: AU6552-05X)
- Auxiliary Objective 0.75X, (SKU: AU6552-075X)
- Auxiliary Objective 1X, (SKU: AU6552-1X)
- Auxiliary Objective 2X, (SKU: AU6552-2X)
- Camera C-mount adapter 0.4X (SKU: ZM6552-04CT)
- Camera C-mount adapter 0.5X (SKU: ZML-05CT)
- Camera C-mount adapter 1X (SKU:ZM6552-1CT)
- Camera C-mount adapter 1.6X (SKU: ZM6552-16CT)
Working Distance & Field of View:
|
Eyepieces
|
Magnification
|
Standard(1X)
|
0.5X
|
0.75X
|
1.5X
|
2X |
|
WF10X/24mm
|
Total magnification Field of view (mm) |
6.5X-52X ø 36.92-4.62 |
3.25X-26X ø 73.85-9.23 |
4.88X-39X ø 49.23-6.15 |
9.75X-78X ø 24.62-3.08 |
13X-104X ø 18.46-2.31 |
|
WF15X/16mm
|
Total magnification Field of view (mm) |
9.75X-78X ø 24.62-3.08 |
4.88X-39X ø 49.23-6.15 |
7.31X-58.5X ø 32.82-4.1 |
14.63X-117X ø 16.41-2.05 |
19.5X-156X ø 12.31-1.54 |
|
WF20X/12mm
|
Total magnification Field of view (mm) |
13X-104X ø 18.46-2.31 |
6.5X-52X ø 36.36-4.62 |
9.75X-78X ø 24.62-3.08 |
19.5X-156X ø 12.31-1.54 |
26X-208X ø 9.23-1.15 |
|
WF25X/10mm
|
Total magnification Field of view (mm) |
16.25X-130X ø 15.38-1.92 |
8.13X-65X ø 30.77-3.84 |
12.19X-97.5X ø 20.51-2.56 |
24.38X-195X ø 10.26-1.28 |
32.5X-260X ø 7.69-0.96 |
|
Work Distance
|
118mm
|
218mm
|
140mm
|
68mm
|
42mm
|
