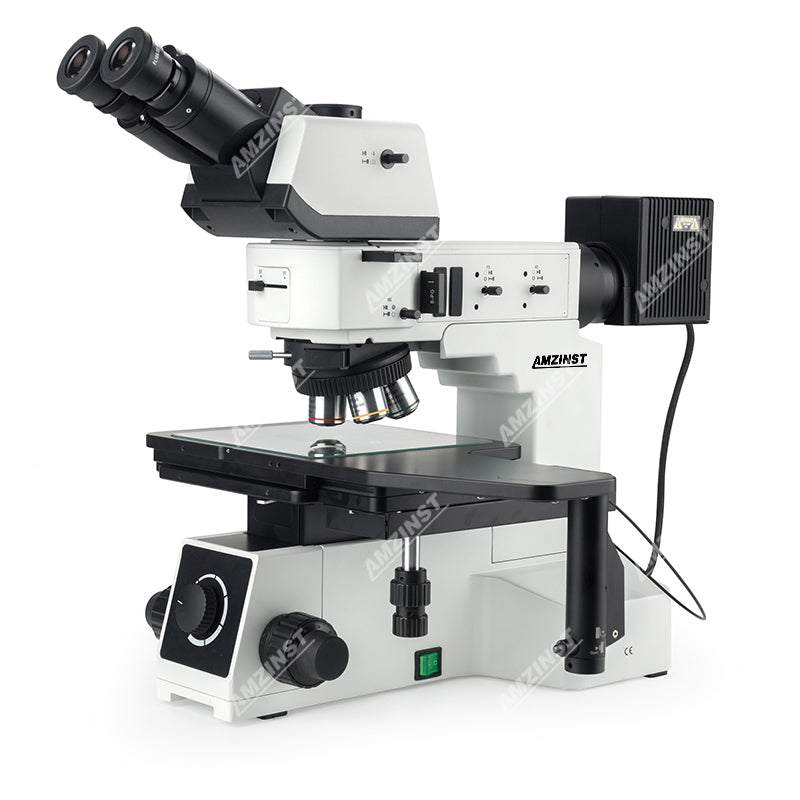

AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope
AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope

AJX-6R/ AJX-6RF Wafer Inspection Bright/Dark Field Metallographic Microscope

SKU: AJX-6R
Vendor: AMZINST
Product Type: Upright Metallographic Microscope
$0.00
$0.00
Model: AJX-6R
Subtotal:
$0.00

Top Optics Manufacturer & Exporter

Learn More.

Ningbo AMZ Instruments Co., ltd.

As a top optics product manufacturer, AMZ INSTRUMENTS provides a broad range of cutting-edge professional optics and accessories to large distributors around the global.

Through our China network of manufacturing facilities we are able to manufacture superior instruments and optical components to our specifications at reasonable prices. To ensure the best in quality and performance we visit, inspect and audit each of our manufacturing partners on a regular basis.

Our products are available exclusively through a nationwide network of authorized distributors and are backed by our industry leading 2-year limited warranty.

Global Shipping

1. Courier shipping by FedEx, UPS, DHL, Estimated to be delivered Around 5-7days.

2. Air shipping, Estimated to be delivered Around 5-7days.

3. Sea shipping, Estimated to be delivered Around 25-40days.

Shipping Information

We can ship to virtually any address in the world. please email us at info@amz-instruments.com or call +86 15990266988 to get a quote that includes shipment fees.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Shipment fees are calculated based on the destination, size and weight of your item(s) and include insurance of the goods shipped. Our standard shipment method is Fed Ex, UPS. If you have your own UPS or Fed Ex, DHL account #, we are happy to ship on your account. Please emial or call us to place your order and provide us your account information.

 Why Choose Us?

AMZINST manufactures optics products and related accessories, which have been consistently distributed and trusted by worldwide companies.

China-owned and operated facilities provide the management, quality control, design, marketing and customer service that make AMZINST® a market leader. In our China warehouse, each product is unpacked, assembled and individually tested and inspected by our team of technicians to ensure compliance with the strict quality standards. Join our network of distributors for a mutually beneficial partnership.

Product Description

ACCESSORIES
ORDER NUMBER
ITEM
 SPECIFICATION
AJX-6R
AJX-6RF

AJX6-35TTR


AJX6-30TR


AJX6-35TRI

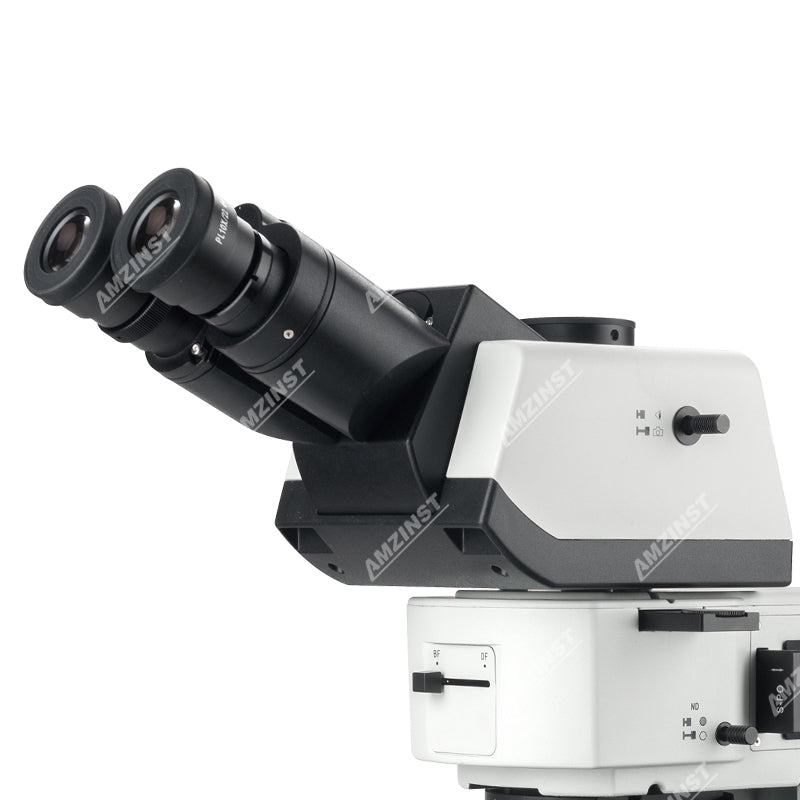

 Head

5-35° tilt angle adjustable, erect image, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 (support 22/23/16mm field of view)

30° inclined, erect image, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 (support 25/26.5mm field of view)

30° inclined, inverted Image, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 or 20: 80 (support 25/26.5mm field of view)

●


໐


໐


●


໐


໐


AJX6-10EX22

AJX6-10EX22R

AJX6-10EX22T

AJX6-10EX22TR

AJX6-10EX23

AJX6-15EX16

AJX6-10EX25T

AJX6-10EX25TR

AJX6-10EX26.5T

AJX6-10EX26.5TR

 High eye-point wide field plan eyepiece

PL10X/22mm

PL10X/22mm, with reticle

PL10X/22mm, diopter adjustable

PL10X/22mm, diopter adjustable, with reticle

PL10X/23mm, Diopter adjustable

PL15X/16mm

PL10X/25mm, diopter adjustable

PL10X/25mm, diopter adjustable, with reticle

PL10X/26.5mm, diopter adjustable

PL10X/26.5mm, diopter adjustable, with reticle

●●

໐

໐

໐

໐

໐

໐

໐

໐

໐

●●

໐

໐

໐

໐

໐

໐

໐

໐

໐

AJX6-BDL5XDIC

AJX6-BDL10XDIC

AJX6-BDL20XDIC

 Infinity LWD B&D plan Achromatic Metallurgical Objectives

5X/0.15, W.D.=9.00mm

10X/0.30, W.D.=9.00mm

20X/0.45, W.D.=3.40mm

●

●

●

●

●

●
AJX4-SEP50X Infinity semi-aprochromatic metallurgical objective with correction ring  50X/0.70,  WD=2.3-2.93mm

໐

໐
AJX6-DICR DIC DIC slider (for AJX6-BDL5XDIC, AJX6-BDL10XDIC, AJX6-BDL20XDIC) ໐ ໐

AJX6-BDL20XAPO

AJX6-BDL50XAPO

AJX6-BDL100XAPO

 Infinity LWD B&D semi-Aprochromatic Metallurgical Objectives

20X/0.40, WD=8.50mm

50X/0.55, WD=7.50mm

100X/0.80, WD=2.10mm

໐

●

໐

໐

●

໐

AJX6-BD5XAPO

AJX6-BD10XAPO

AJX6-BD20XAPO

AJX6-BD50XAPO

AJX6-BD100XAPO

 B&D Semi-Aprochromatic Metallurgical Objectives

5X/0.15, WD=13.50mm

10X/0.30 WD=9.00mm

20X/0.50 WD=2.50mm

50X/0.80 WD=1.00mm

100X/0.90 WD=1.00mm

໐

໐

໐

໐

໐

໐

໐

໐

໐

໐
AJX6-DICRG DIC2 DIC slider  (for B&D Semi-Aprochromatic Metallurgical Objectives) ໐ ໐
AJX6-OLYDICR DIC3 Reasearh level DIC slider  (for B&D Semi-Aprochromatic Metallurgical Objectives ) ໐ ໐

AJX6-BDLA

 Nosepiece

Backward quintuple nosepiece, with DIC slot

●

●

AJX6-MXF





AJX6-MXFT

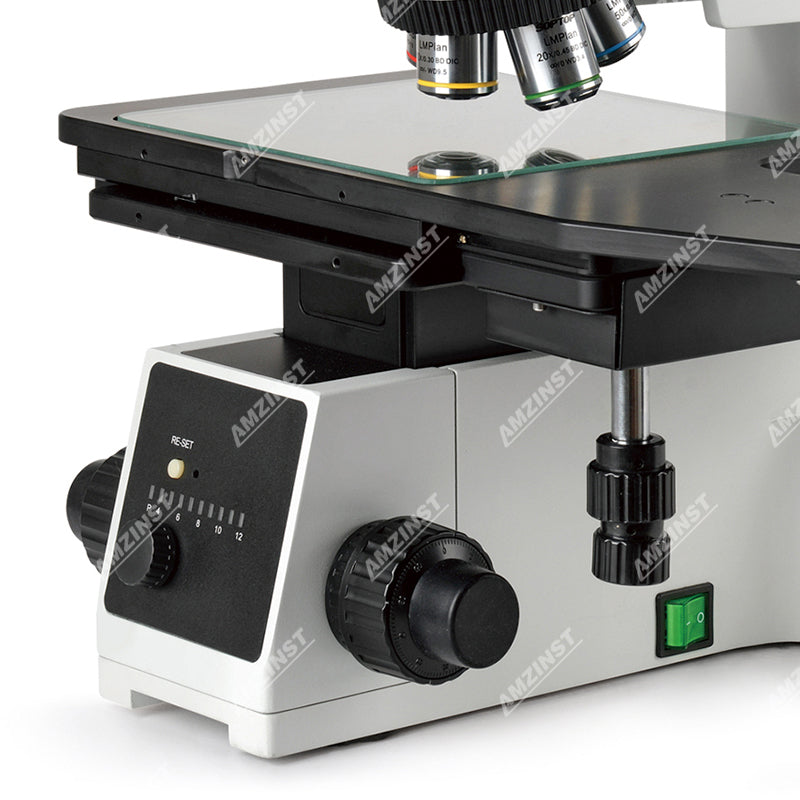

 Frame

Reflected frame,
Coaxial coarse and fine adjustment, coarse adjustment 33mm, precision of fine adjustment: 0.001mm, with coarse adjustment stop and tightness adjustment.
Input power 100-240V.
With brightness setting button and reset button

Reflected & transmitted frame,
Coaxial coarse and fine adjustment, coarse adjustment 33mm, precision of fine adjustment: 0.001mm, with coarse adjustment stop and tightness adjustment.
Input power 100-240V.
With 5W LED warm light transmitted lighting system. Reflected and transmitted light source independent dimming.

●





/






/





●






AJX6-MSC6



AJX4-SRD

AJX4-MSC4


AJX4-MSC4N


AJX4-SRTD

AJX4-MSC4RT

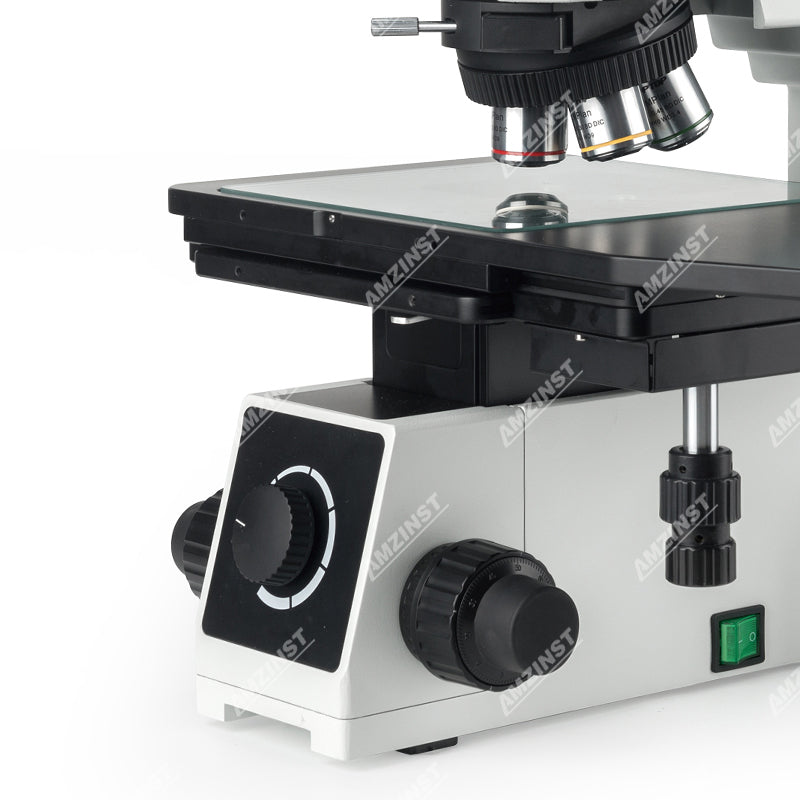

 Stage

6" double layers mechanical stage 445x240mm, reflected light moving range 158x158mm, transmitted light moving range 100x100mm, with glass insert, right hand position X-Y moving hand wheel, with glass work plate (reflected / transmitted)

4'' platform adapter interface (reflected)

4" double layers mechanical stage 230X215mm, moving range 105x105mm, with metal work plate, right hand position X-Y moving hand wheel  (reflected)

4" double layers mechanical stage 230x215mm, moving range 105x105mm, with glass insert, left hand position X-Y moving hand wheel,  (reflected)

4-inch platform adapter interface (reflected/transmitted)

4" double layers mechanical stage 230x215mm, moving range 105x105mm, with glass insert, low hand position X-Y moving hand wheel, with glass work plate (reflected/transmitted)

●



໐

໐


໐


໐

໐



●



໐

໐


໐


໐

໐



AJX6-MRL2



AJX6-MLH

AJX6-100HA

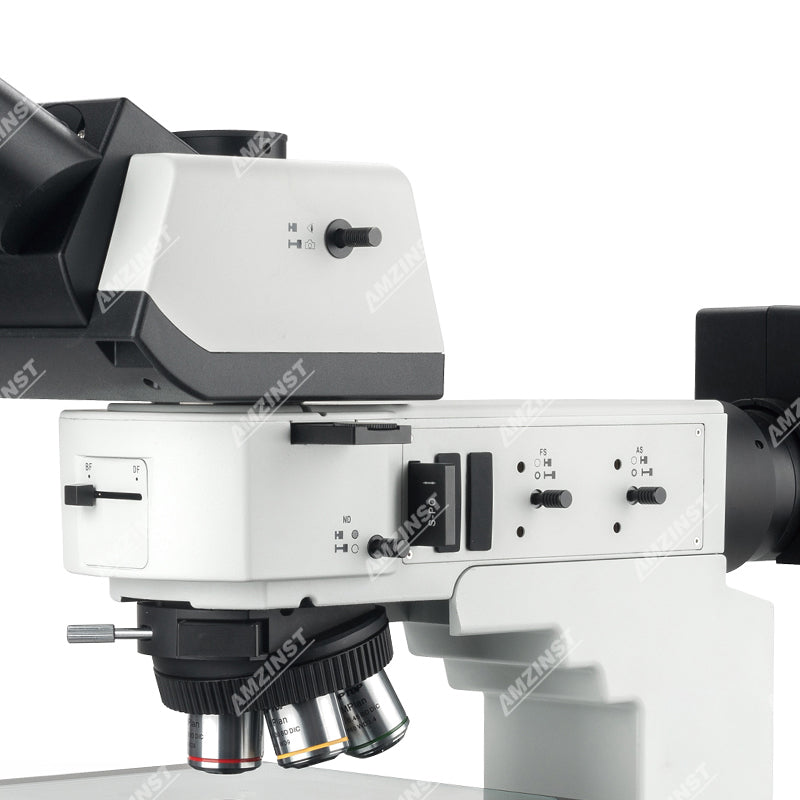

 Reflected
Illumination

B&D reflected illumination, with Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device sIth bright and dark field

12V100W Halogen lamp house, Pre-Centering

12V100W Halogen lamp

●



●

●

●



●

●

AJX6-MPS

AJX6-AP360

AJX6-FDQ

 Polarizing kits

Polarizer (for reflection)

360° rotatable analyzer

Fixed analyzer (for reflection)

●

●

໐

●

●

໐
AJX6-MSC6R Accessories 6 inch rotatable plate, apply to 4, 5, 6 inch wafer ໐ ໐

AJX6-TIFB

AJX6-TIFG

AJX6-TIFR

AJX6-TIFN

 Interference filter

Blue interference filter, (for reflected): ≤ 480nm

Green interference filter, (for reflectied): 520-570nm

Red interference filter, (for reflected): 630-750nm

Natura interference filter, (for reflected)

໐

໐

໐

●

໐

໐

໐

●

X50-035CT

X50-05CT

X50-065C

X50-1C

 Camera adapter
Accessories

0.35X camera adapter, C-type interface, adjustable

0.5X camera adapter, C-type interface, adjustable

0.65X camera adapter, C-type interface, adjustable

1X camera adapter, C-type interface, adjustable

໐

໐

໐

໐

໐

໐

໐

໐


''●'' = Standard configuration         ''໐''= Optional
