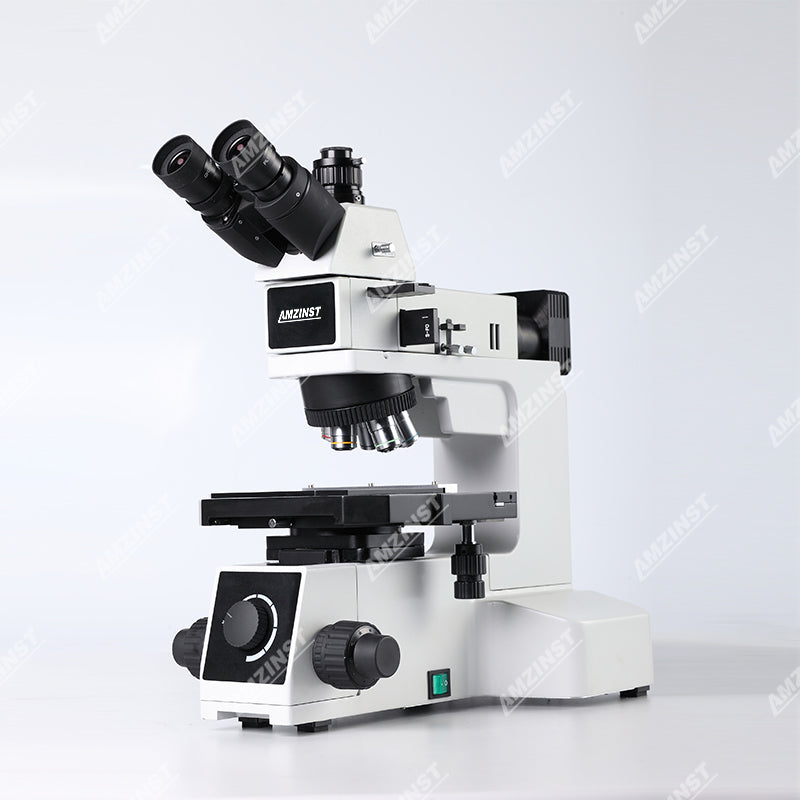

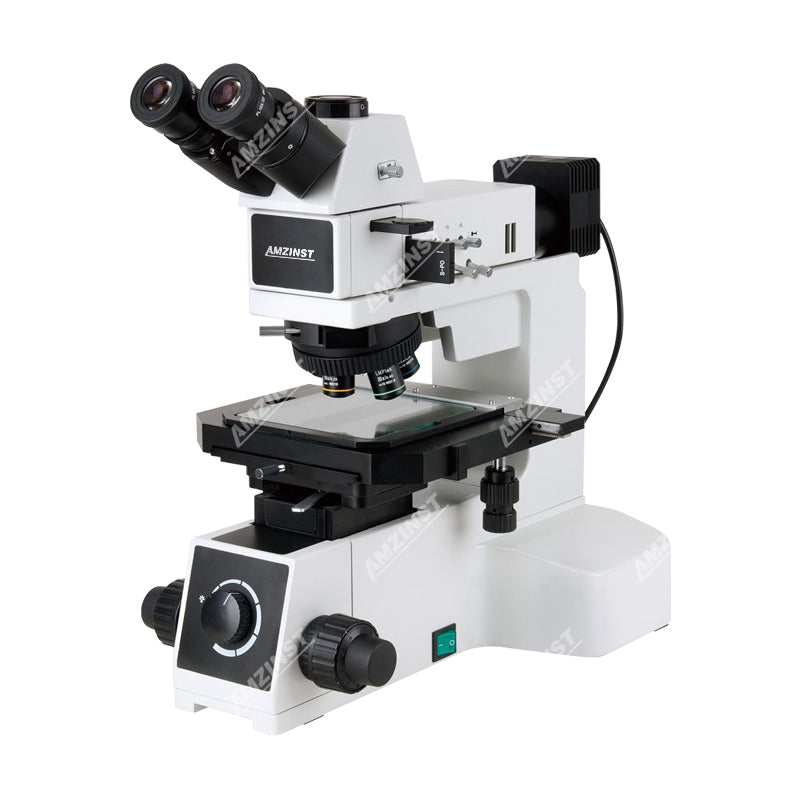

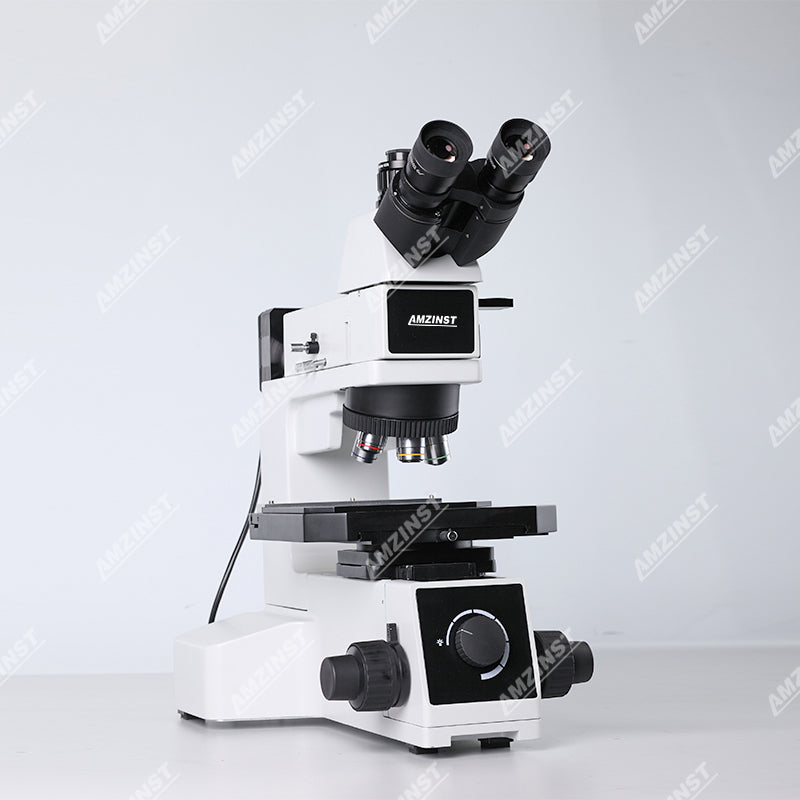

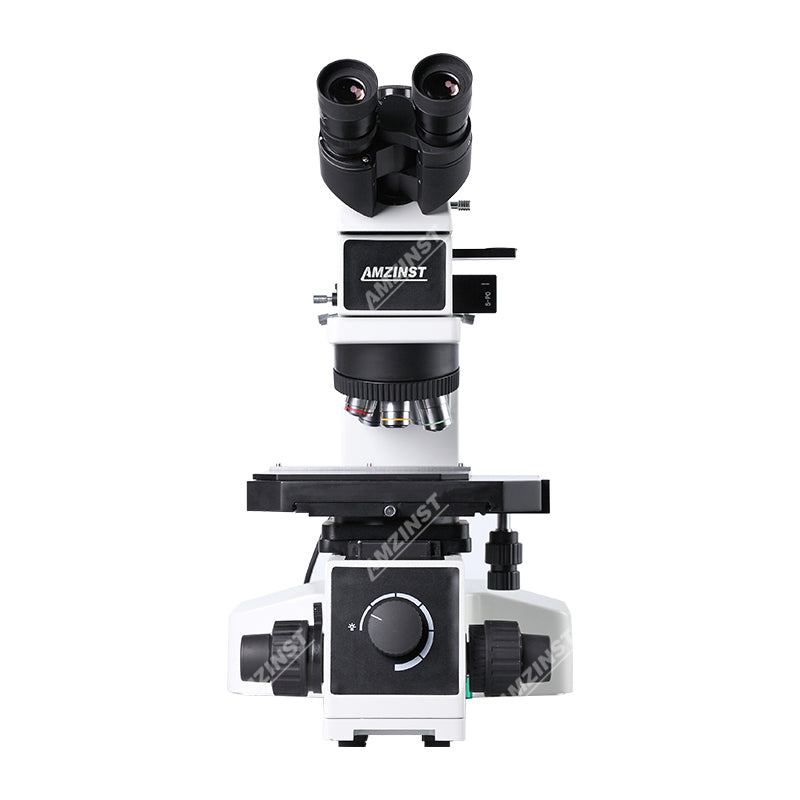

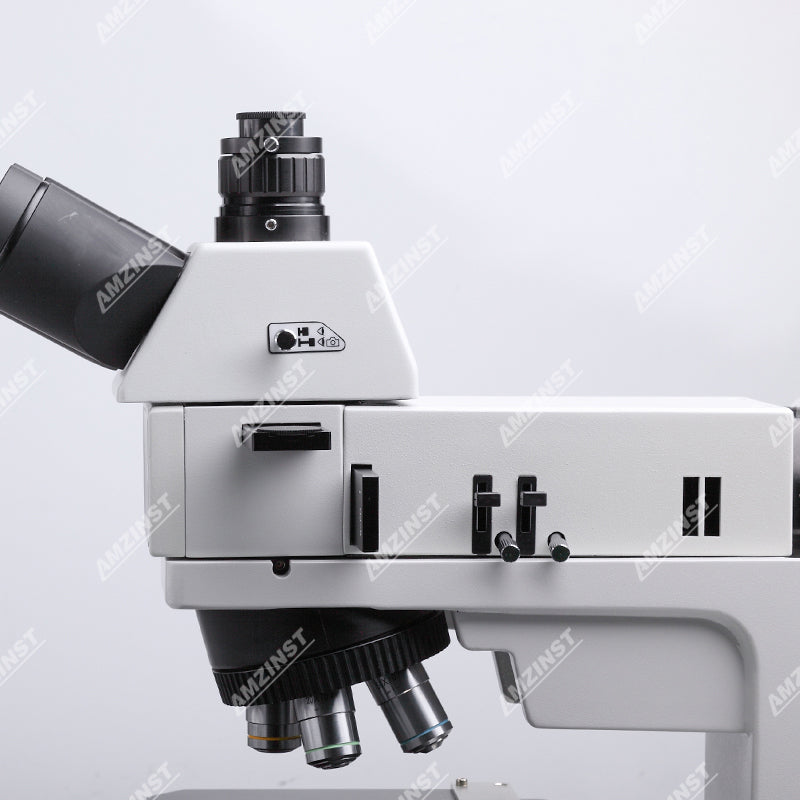

AJX-4R/ AJX-4RT Upright Metallurgical Trinocular Microscope
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Product Description
| ACCESSORIES ORDER NUMBER |
ITEM
|
SPECIFICATION |
AJX-4R
|
AJX-4RT
|
|
AJX4-30HE AJX6-35TTR |

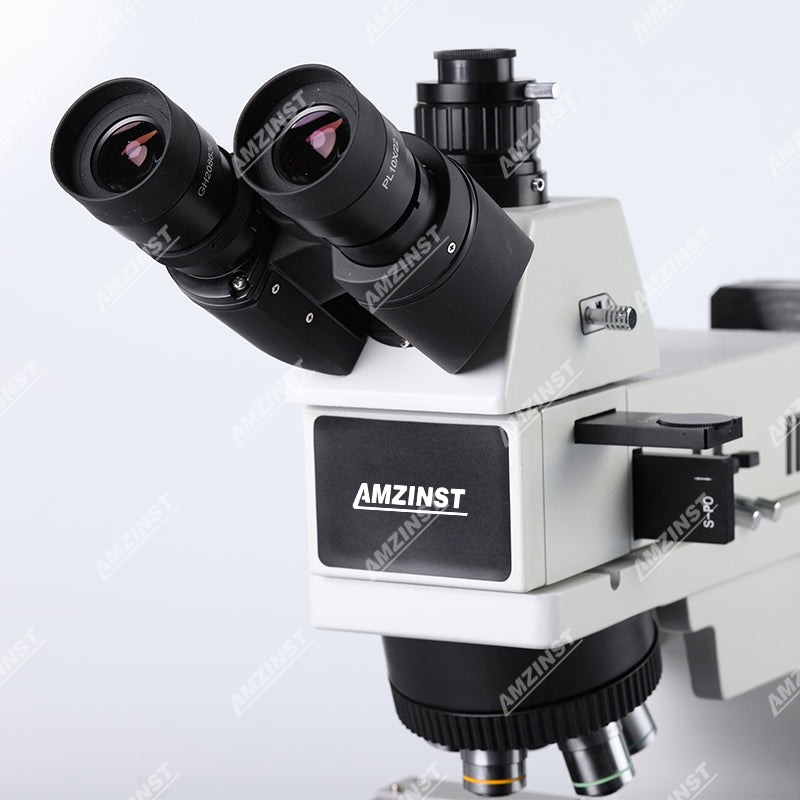

Head |
Compensation infinity trinocular head, 30° inclined, 360° rotatable, interpupillary distance: 54-75mm, diopter ±5 adjustment, splitting ratio R:T=100:0 or 50:50 5-35° tilt angle adjustable, Erect image, compensation infinity trinocular Head, , Diopter +/-5 adjustable, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 |
● ໐ |
● ໐ |
|
AJX4-10EX22 AJX4-10EX22R AJX4-10EX22T AJX4-10EX22TR AJX4-15EX16 |
High eye-point wide field plan eyepiece |
PL10X/22mm PL10X/22mm, with reticle PL10X/22mm, Diopter adjustable PL10X/22mm, Diopter adjustable, with reticle PL15X/16mm |
●● ໐ ໐ ໐ ໐ |
●● ໐ ໐ ໐ ໐ |
|
AJX4-LM5X AJX4-LM10X AJX4-LM20X AJX4-LM50X AJX4-LM100X |
LWD infinity plan achromatic metallographic objective |
5X/0.15, WD=10.80mm 10X/0.30, WD=12.20mm 20X/0.45, WD=4.00mm 50X/0.55, WD=7.90mm 100X/0.80, WD=2.15mm |
● ● ● ● ໐ |
● ● ● ● ໐ |
| AJX4-SEP50X | Infinity semi-aprochromatic metallurgical objective with correction ring | 50X/0.70, WD=2.3-2.93mm |
໐ |
໐ |
| AJX-DICR | DIC | DIC slider | ໐ | ໐ |

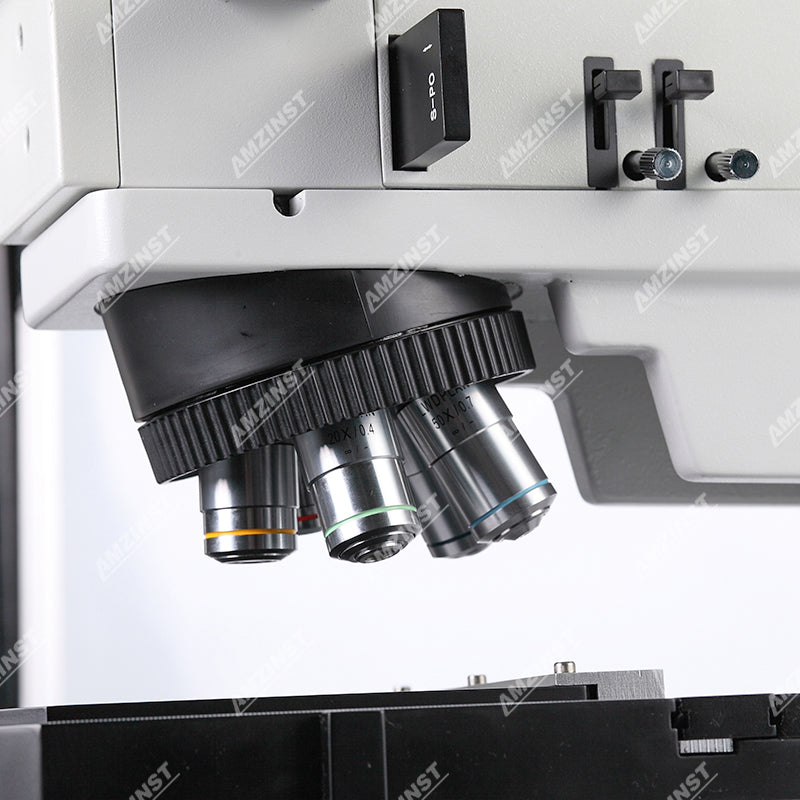

| AJX4-Q5 | Nosepiece | Backward quintuple nosepiece, with DIC slot | ● | ● |
|
AJX4-MXF AJX4-MXFT |
Frame & illumination |
Reflect frame, Reflect & transmitted frame, |
● ໐ |
໐ ● |
|
AJX4-RDL AJX4-RDLED |
Reflected illumination |
Reflected illuminator, Kela lighting system, with variable aperture and field diaphragm, center adjustable; with oblique Illumination function; With 5W LED warm lighting house (color temperature 2850K-3250K). |
● ● |
● ● |
|
AJX4-SRD AJX4-SRTD AJX4-MSC4 AJX4-MSC4N AJX4-MSC4RT AJX6-MSC6 |

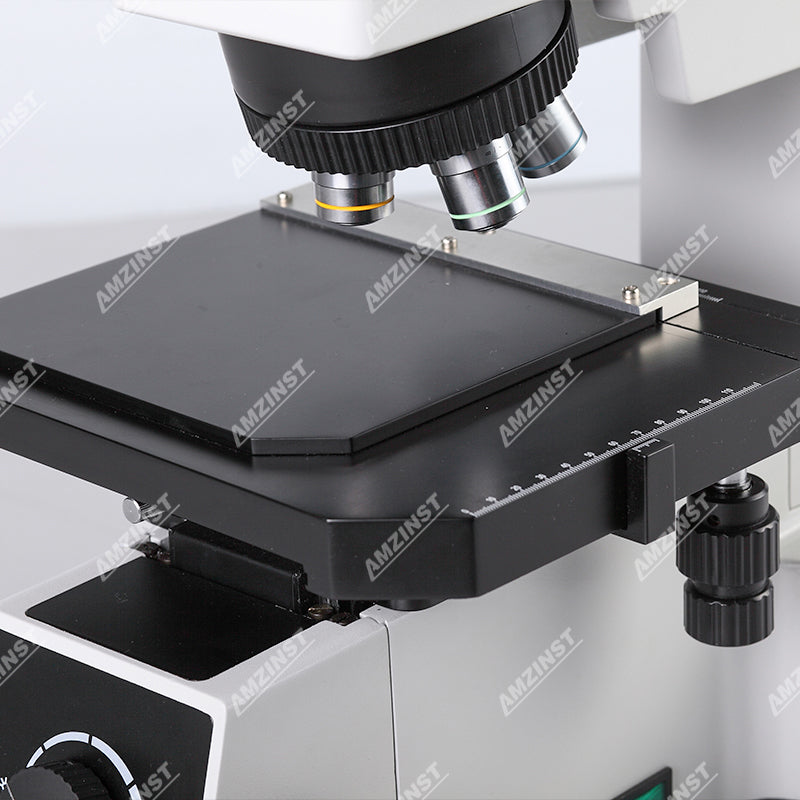

Stage |
4 inch platform adapter interface (reflected) 4 inch platform adapter interface (reflected/transmitted) 4 inch double layers mechanical stage 230*215mm, moving range 105x105mm, right hand position X-Y moving hand wheel, with metal work plate (For reflected light) 4 inch double layers mechanical stage 230*215mm, moving range 105x105mm, left hand position X-Y moving hand wheel, with metal work plate (For reflected light) 4 inch double layers mechanical stage 230x215mm, moving range 105x105mm, with glass work stage (For reflected & transmitted light) 6 inch three layers mechanical stage 445x240mm, reflected light moving range 158x158mm, transmitted light moving range 100x100mm, With clutch handle, can be used for fast movement in the full stroke range, with glass work plate (for reflected/transmitted light) |
● ໐ ● ໐ ໐ ໐ |
໐ ● ໐ ໐ ● ໐ |
| AJX6-MSC4R | Rotatable Stage | 4 inch rotatable plate, apply to 4 inch wafer | ໐ | ໐ |
|
AJX6-TIFB AJX6-TIFG AJX6-TIFR AJX6-TIFN |
Interference filter |
Blue interference filter, (for reflected): ≤ 480nm Green interference filter, (for reflectied): 520-570nm Red interference filter, (for reflected): 630-750nm Natura interference filter, (for reflected) |
໐ ໐ ໐ ໐ |
໐ ໐ ໐ ໐ |
|
AJX4-MPS AJX4-AP360 AJX4-FDQ |
Polarizing kits |
Polarizer (for reflection) 360° rotatable analyzer Fixed analyzer (for reflection) |
● ● ໐ |
● ● ໐ |
|
X40-035CT X40-05CT X40-065CT X40-1CT |
Camera adapter Accessories |
0.35X camera adapter, C-type interface, adjustable 0.5X camera adapter, C-type interface, adjustable 0.65X camera adapter, C-type interface, adjustable 1X camera adapter, C-type interface, adjustable |
໐ ໐ ໐ ໐ |
໐ ໐ ໐ ໐ |
''●'' = Standard configuration ''໐''= Optional
