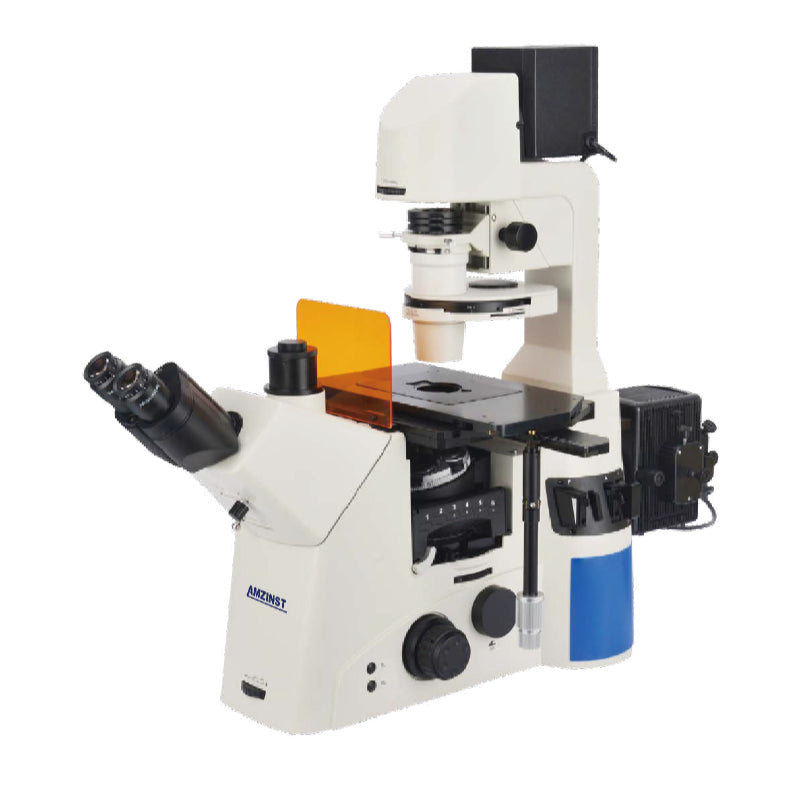

NK-X910 Inverted Biological Microscope
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Product Description
| ACCESSORIES SKU |
ITEM | SPECIFICATION | NK-X910 |
|
/ / / / / / |
Observation Method |
Bright Field Dark Field Phase Contrast Polarizing Flourescent DIC |
● / ● ໐ ● ໐ |
| 900-HE | Head | Seidentopf trinocular head, inclined 45°, interpupillary distance 47-78mm, ligth split switch T 100%:B 0%/T 20%:B 80%/T 0%:B 100%, with built-in bertrand lens which can be used as centering telescope |
● |
|
900-EX1025 900-EX1025R 900-EX1022 900-EX12.5 900-EX15 900-EX20 |
Eyepiece |
SWF10X/25mm diopter adjustable SWF10X/25mm diopter adjustable, with corss reticle SW10X/22mm diopter adjustable 12.5X/17.5mm diopter adjustable 15X/16mm diopter adjustable 20X/12mm diopter adjustable |
໐ ໐ ●● ໐ ໐ ໐ |
|
900-T115 900-T115CF |
Intermediate Lens |
Intermediate lens turret 1.0X, 1.5X, under nosepiece Intermediate Lens turret 1.0X, 1.5X CF, under nosepiece |
● ໐ |
|
900-MAS 900-ENS 900-MCS |
Nosepiece |
Manual Sextuple Nosepiece, With DIC Slot Encoded Manual Sextuple Nosepiece, With DIC Slot Motorized Coded Manual Sextuple Nosepiece, With DIC Slot, With Objective Protection Function When Switch The Objectives |
● ໐ ໐ |
|
900-PH4 900-PH10 900-PH10L 900-PH20 900-PH20A 900-PH40A 900-PH60A |
N-iPLFN PH Infinity Plan Semi-APO Phase Contrast Objective |
4X/0.13, W.D.=16.2mm 10X/0.30, W.D.=7.3mm 10X/0.30, W.D.=15.7mm 20X/0.45, W.D.=8.00mm 20X/0.45, W.D.=7.5-8.8mm, built-in correct ring 40X/0.6, W.D.=3-4.4mm, built-in correct ring 60X/0.7, W.D.=1.8-2.6mm, built-in correct ring |
໐ ● ໐ ໐ ● ● ໐ |
|
900-IPA4 900-IPA10 900-IPA10L 900-IPA20 900-IPA40L 900-IPA40 900-IPA60A |
N-iPLFN Infinity Plan Semi-APO Objective |
4X/0.13, W.D.=16.2mm 10X/0.30, W.D.=7.3mm 10X/0.30, W.D.=15.7mm 20X/0.45, W.D.=8.00mm 40X/0.60, W.D.=3.60mm 40X/0.75, W.D.=1.43mm, No coverslip 60X/0.70, W.D.=1.8-2.6mm, built-in correct ring |
໐ ໐ ໐ ໐ ໐ ໐ ໐ |
|
900-HPH10 900-HPH20X 900-HPH40X |
Hoffman Phase Contrast Objective |
10X/0.25, W.D.=9.5mm, Hofiman accessories only 20X/0.40, W.D.=12.35mm, Hofiman accessories only 40X/0.60, W.D.=2.30mm, Hofiman accessories only |
໐ ໐ ໐ |
|
900-PA4 900-PA10 900-PA20 900-PA40 900-PA60 900-PA100 900-PA100U |
N-PLAPO Plan APO Objective |
4X/0.10, W.D.=29.30mm 10X/0.45, W.D.=4.00mm 20X/0.75, W.D.=1.10mm 40X/0.95, W.D.=0.19-0.21mm, coverslip 0.11- 0.23 60X/1.40 (Oil), W.D.=0.25mm 100X/1.45 (Oil), W.D.=0.13mm 100X/1.49(Oil), W.D.0.16-0.09mm, coverslip 0.13-0.19 (23℃), 0.14-0.2 (37℃) |
໐ ໐ ໐ ໐ ໐ ໐ ໐ |
|
900-CD6 900-CD6EN 900-CD6M 900-CD6M1 |
Nosepice |
Sextuple Nosepiece with DIC Prism Slot Encoded Sextuple Nosepiece with DIC Prism Slot Electric Sextuple Nosepiece with DIC Prism Slot Electric Sextuple Nosepiece with DIC Prism Slot |
● ໐ ໐ ໐ |
|
/ / |
Focusing |
Coaxial coarse & fine focusing, focusing range 9mm (Up 7mm, Down 2mm), coarse stroke 2mm, fine Stroke 0.2mm Motorized Z Axies (Optical Grating Type) Focusing System, Focusing Range 9mm (Up 7mm, Down 2mm), Focusing Resloution 0.02um With Optical Grating, Movement Repeat Positioning Accuracy +/-0.1um, Prevent Stage Fall Down Function |
● ໐ |
|
900-MS 900-MMSL 900-MMS 900-PU 900-96WP 900-PDA 900-SMA |
Working Stage |
3 Layers Mechnical Stage, Moving Range 130*85mm, flexible knob, Different small sizes stage could be attached to main stage Motorized X/Y Axies (Optical Grating Type) Mechanical Stage, Size 325x144mm, Moving Range 130x100mm, Max Speed 50mm/s, Resolution 0.1um, Repeat Accuracy +/-0.5um, Available For Different Size Small Stage Mounted on Top Layer, With Separate Communication/Main Control Box & Stick Motorized X/Y Axies (Optical Grating Type) Mechanical Stage, Size 325x144mm, Moving Range 115x75mm, Max Speed 71mm/s, Resolution 0.1um, Repeat Accuracy +/-0.5um, Available For Different Size Small Stage Mounted on Top Layer, With Separate Communication/Main Control Box & Stick Universal bracket 96 well plate holder 160x110mm Petri dish attachment Slice mounting accessory |
● ໐ ໐ ໐ ໐ ໐ ໐ |
|
900-CD0.55 900-CDHS 900-CDMT |
Condenser |
Long working distance turret condenser, N.A.0.55, W.D=26mm, With 6 positions for phase contrast annulus, DIC annulus, bright field view Hoffman Spotting Scope, with Hoffmann accessories Motorized long working distance turret condenser, N.A.0.55, W.D.=26mm, with 6 positions for 10X, 20X ,40X phase contrast annulus, DIC1, DIC2 annulus, and bright field view |
● ໐ / |
|
900-TUMF 900-TUEN 900-TUMEN |
Multi Function Turret |
Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods Coding Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods Motorized Coded Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods |
● / / |
| 900-DFB | Dark Field | Dark Field Block, Put In Multi Function Turret, For Reflect Light Source | ໐ |
|
900-RP 900-RPA |
Polarizing Kit |
Polarizer Filter On LWD Turret Condenser Analyzer Slide, Insert Into Slot On Nosepiece, 360° Rotatable |
໐ ໐ |
|
900-PH1 900-PH2 900-PH3 900-PH4 |
Phase Contrast Parts |
Phase contrast parts I Phase contrast parts ll Phase contrast parts lll Phase contrast parts lV |
໐ ● ● ໐ |
|
900-DIC10C 900-DIC20C 900-DIC40C 900-DIC1020C 900-DIC40C1 900-DIC10S 900-DIC20S 900-DIC40S |
DIC |
10X DIC component, Put In LWD Turret Condenser 20X DIC component, Put In LWD Turret Condenser 40X DIC component, Put In LWD Turret Condenser 10X/20X DIC component, Put In LWD Turret Condenser 40X DIC component, Put In LWD Turret Condenser DIC Slider 10X, Insert Into Slot On Nosepiece DIC Slider 20X, Insert Into Slot On Nosepiece DIC Slider 40X, Insert Into Slot On Nosepiece |
໐ ໐ ໐ ໐ ໐ ໐ ໐ ໐ |
|
900-H12V100 900-B12V100 900-H5W 900-H10W |
Transmitted Light Source |
12V100W halogen kohler illumination, brightness adjustable, flexible illuminator body can retrovert from optical path for large space of operation and sample exchange 12V100W halogen bulb 5W S-LED Kohler Illumination, Brightness Adjustable 10W S-LED Kohler Illumination, Brightness Adjustable |
● ໐ ໐ ໐ |
|
900-F100W 900-FL10W / / 900-FLB 900-FLG 900-FLU 900-FLV 900-FLR 900-FLB1 900-FLG1 900-FLU1 900-FLMCB 900-FLMCL 900-MPB 900-MPD 900-MPT 900-MPP 900-MPO 900-MPC |
Reflect Fluorescent Light Source |
Reflect 100w osram mercury HBO fluorescent light house intelligent power supply control box with barrier to stop/recover fluorescent illumination quickly 10W S-LED Fluorescent Light, 4 Color Bands, Brightness Adjustable By Control Box Empty Excitation odule for NK-X900 Series microscope 75W Metal Halide Light Source, Life Time 2000 Hours B Fluorescent Module (BP460-495,DM505,BA510) G Fluorescent Module (BP510-550.DM570,BA575) U Fluorescent Module(BP330-385.DM400，BA420) V Fluorescent Module (BP400-410,DM455，BA460) R Fluorescent Module (BP620-650,DM660，BA670-750) B1 Fluorescent Module (BP460-495,DM505, BA510-550) G1 Fluorescent Module (BP528-553,DM565, BA578-633) U1 Fluorescent Module(BP360-390.DM415, BA435-485) FL-mCherry Excitation Module (Band Pass) (BP540-580, DM600, BA605-665) FL-mCherryExcitation Module (Long Pass) (BP540-580.DM600，BA610) Module Part 01 (Bright Field) Module Part 02 (Dark Field) Module Part 03 (Transmission) Module Part 04 (Polarization + λPart) Module 05 (Polarization) Module 06 (Circular Offset) |
● ໐ ໐ ໐ ● ● ● ໐ ໐ ໐ ໐ ໐ ໐ ໐ ໐ ໐ ໐ ໐ ໐ ໐ |
| X900-LCD | LCD Screen | 4.3" LCD Information Touch Screen In Front of Main Body, For Easy Use in Dark Working Condition. --Show Objectives In Use In Nosepiece --Show Cubes In Use In Multi Function Turret --Brightness Memorize & Restore Function --Touch To Adjust Brightness --Touch To Set The System |
໐ |
|
900-04CT 900-05CT 900-1CT |
Camera Adapter |
C-Mount 0.4X C-Mount 0.5X C-Mount 1.0X |
໐ ໐ ● |
|
900-FG 900-FY 900-FN 900-FF 900-ND6 900-ND25 |
Filter |
Green Filter Φ38 Yellow Filter Φ38 Color Temperature(2) Frosted sheet ND6 Density Chip Φ25 ND25 Density Chip Φ25 |
● ● ● ໐ ໐ ໐ |
''●'' = Standard configuration ''໐'' = Option
Don't hesitate to contact us to get the catalog for this microscope.
