ASZ-ZT5MP5 Zoom 10X-40X Trinocular Diamond/Jewelry Microscope with 5.1 MP USB2.0 CMOS Camera
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Product Description

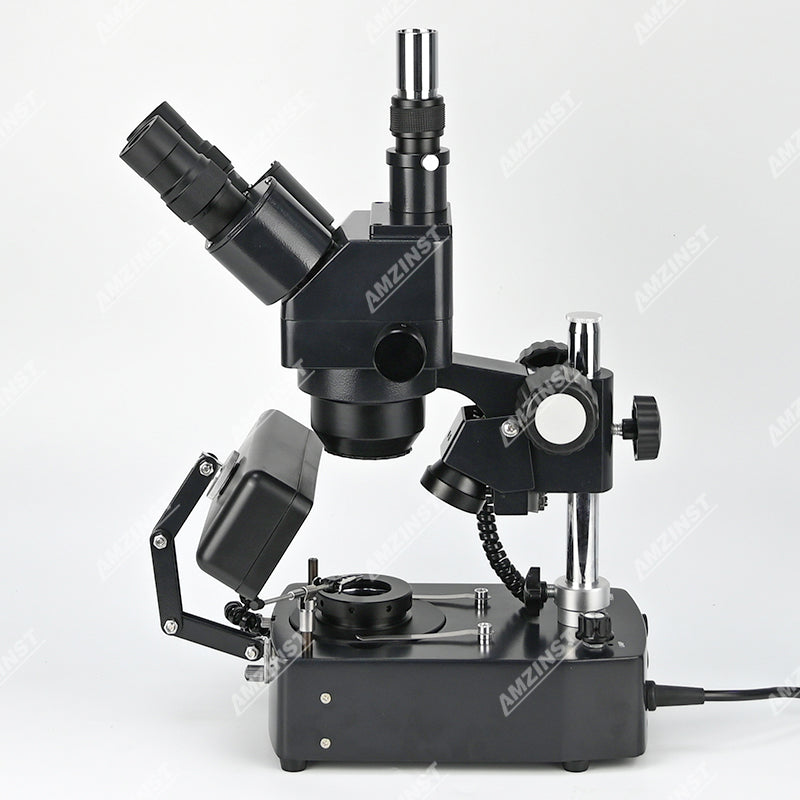

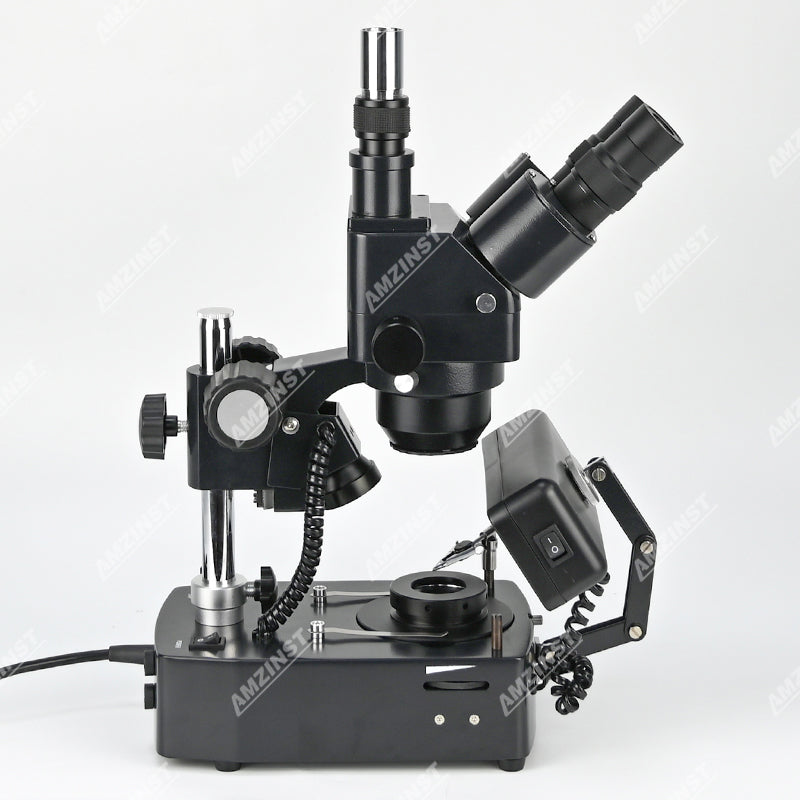

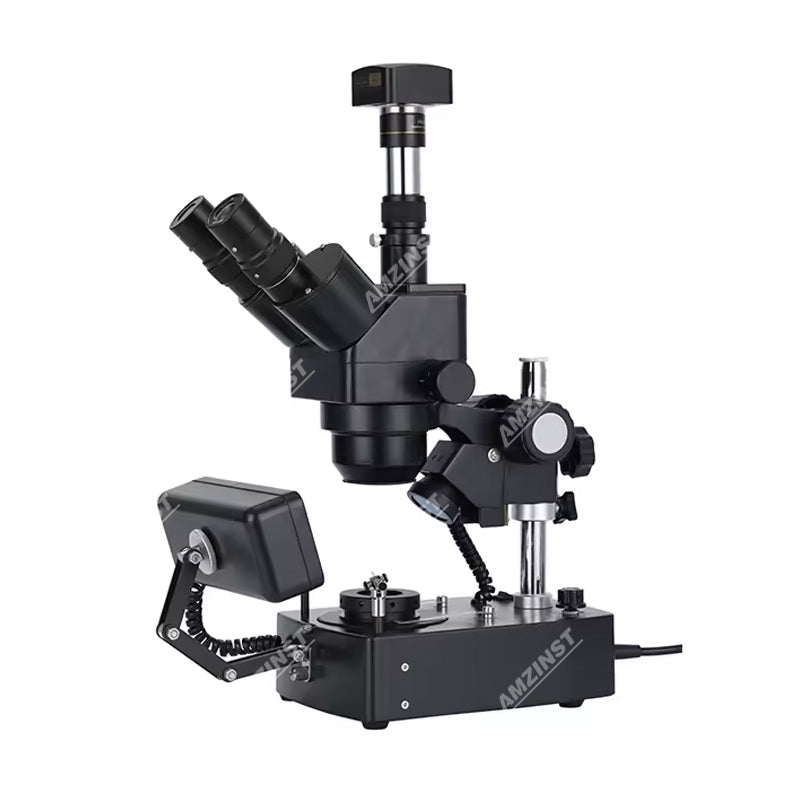

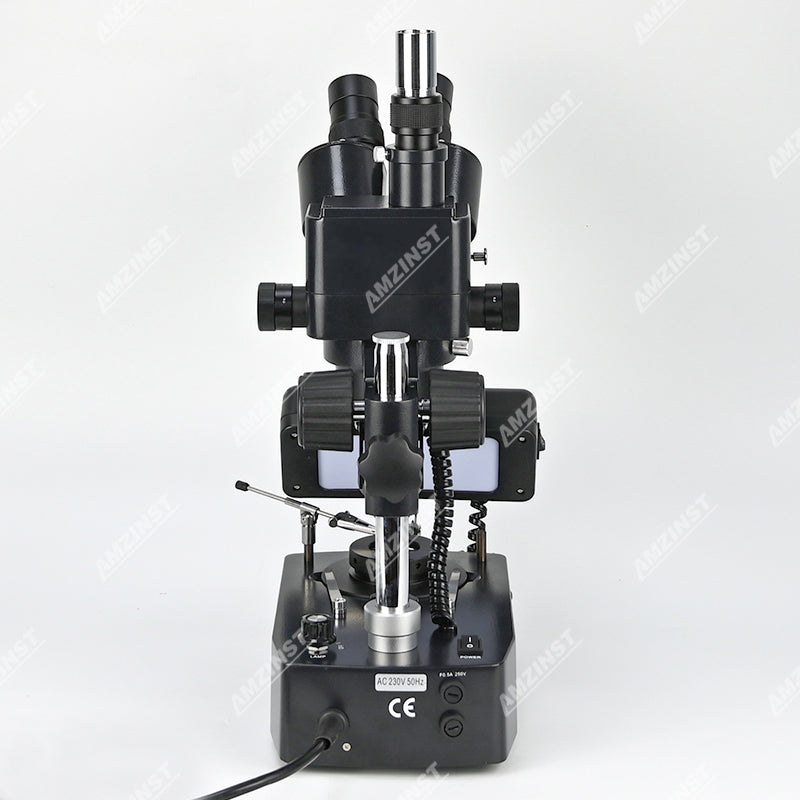

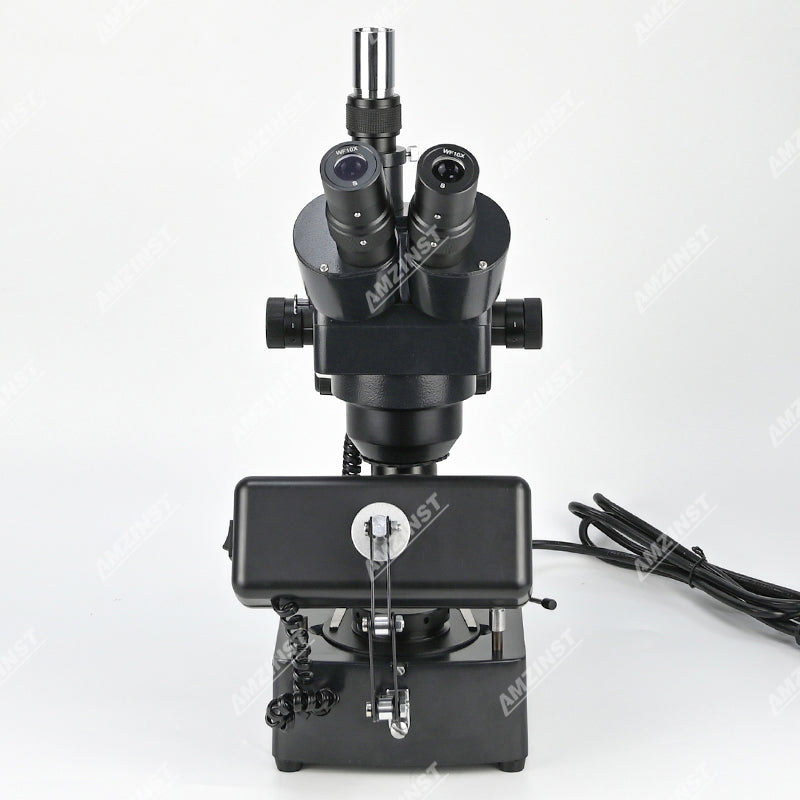

ASZ-ZT5 Jewelry Microscope
● Head:45° inclined and 360° rotational trinocular head with the locked-in eyepiece
● Left diopter adjustment:±5dp
● Interpupillary distance:55-75mm

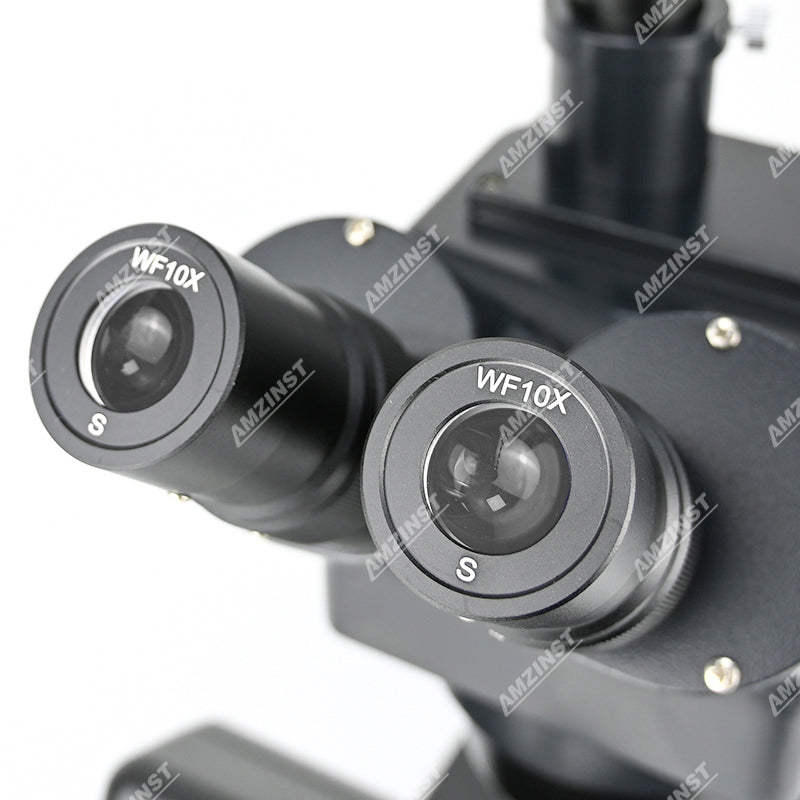

● Eyepiece:SWF10X/22mm
● Objective:1X-4X
● Zoom Range:16:1
● Working Distance:91mm

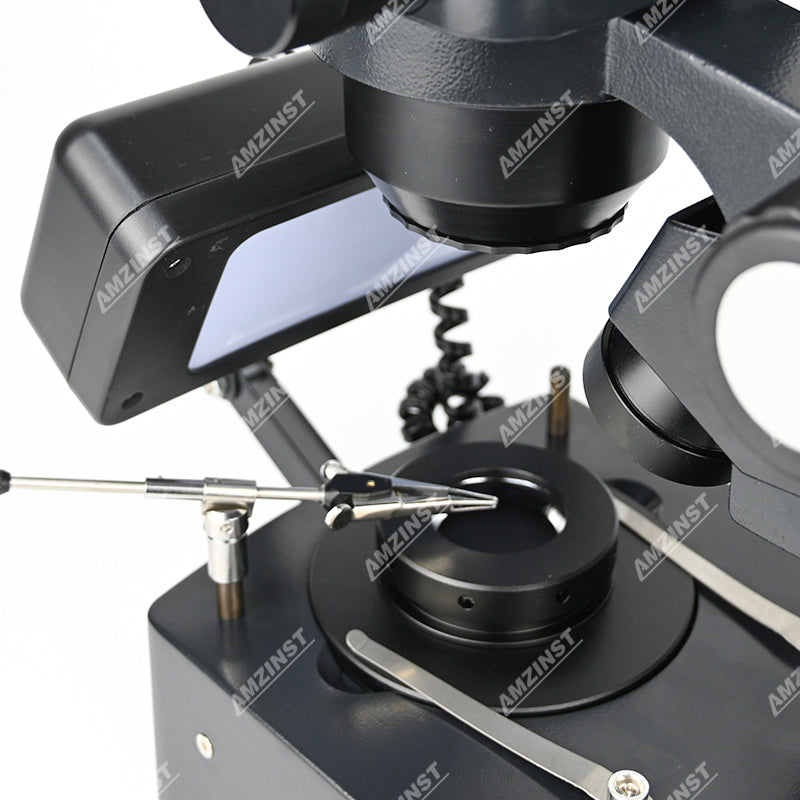

● Work Plate:Φ 95mm frosted glass & white/black plastic plate
● Incident light
- 12V10W Halogen lamp
- 10W Fluorescent lamp
● Transmitted light:12V/10W Halogen lamp
● Brightness adjustment: Dial dimmer switch
● Camera adapter:H-type camera adapter

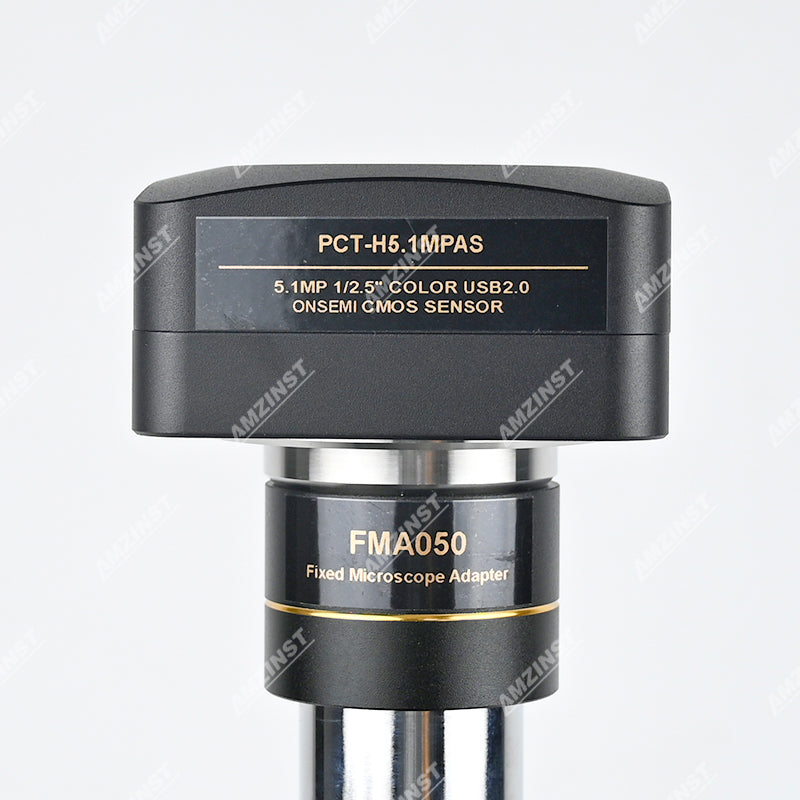

PCT-H5.1MPAS USB2.0 CMOS Camera
● Sensor & Size(mm): 5.1M/AR0521(C) 1/2.5“ (5.70x4.28)
● Pixel(μm): 2.2x2.2
● G Sensitivity Dark Signal: 18.8ke-/lux 73dB 40dB
● FPS/Resolution: 7.0@2592x1944 27.7@1296x972 100.5@648x486
● Binning: 1x1, 2x2, 4x4
● Exposure: 0.2ms~2000ms
● Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
● White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
● Color Rendering Technique: Ultra Fine Color Engine
● Capture/Control SDK: Windows/Linux/ macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
● Recording System: Still Picture and Movie
● Power Supply: DC 5V over PC USB Port
● Operating System: Support Microsoft Windows XP/Vista/7/8/10(32 & 64 bit), OS X (Mac OS X), Linux
● PC Requirements:
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17" or Larger
CD-ROM
Standard Packing List:
- 1*ASZ-ZT5 microscope
- 1*PCT-H5.1MPAS camera
- 1*Jewelry tweezer
- 1*Darkfield attachment
- 1*Pair Eyepices guards
- 1*Dust cover
- 1*Pair Clips
- 1*Power cable
